Manual & automatic cash drawer Safescan HD-5030

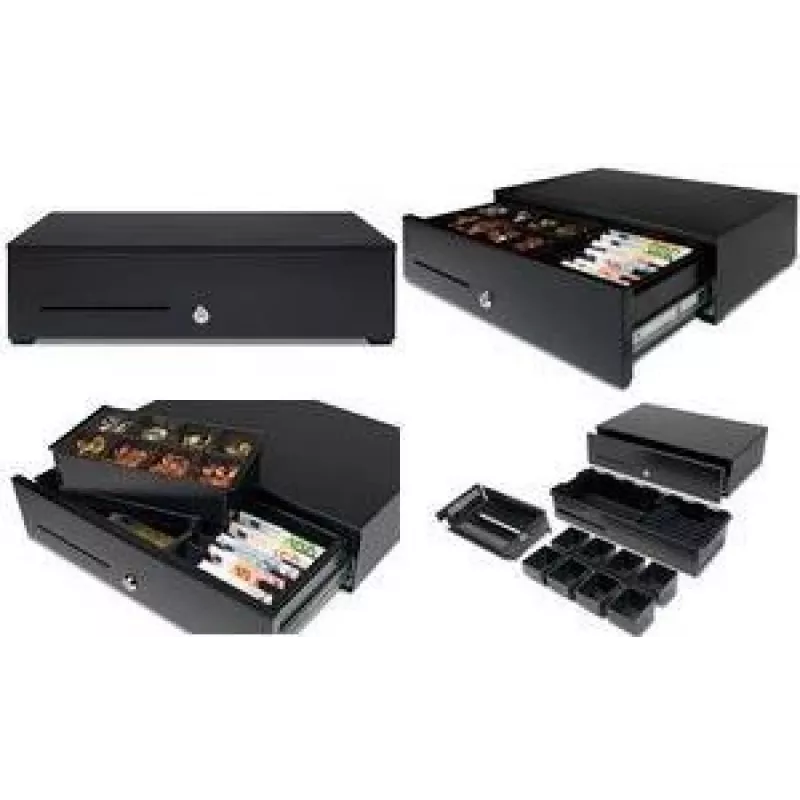

The Safescan HD-5030 is a manual and automatic cash drawer designed for high-volume retail environments. Constructed from thick-gauge steel with a shatterproof PVC tray and a robust telescopic sliding mechanism, this black metal cash drawer provides durable storage for banknotes, coins and transaction media. Its dimensions (495 mm width × 305 mm depth × 125 mm height) and weight (11.5 kg) make it suitable for fixed POS installations in restaurants, bars, gas stations and other busy points of sale.

Advantages

The HD-5030 is tested to at least 2 million open/close cycles and combines a heavy-duty metal casing, ball-bearing telescopic slides and a solid PVC tray for long service life under continuous use. It offers an adjustable 8-note and 8-coin layout plus a spacious media slot for coupons and slips. Security and integration options include a 3-position, 4-function lock and an industry-standard RJ-12 outlet with microswitch; an RJ-12 cable is included for easy connection to compatible cash registers or receipt printers.

Suitable for

• High-traffic retail checkouts
• Restaurants and bars with frequent cash transactions
• Fuel stations and convenience stores
• Fixed POS installations requiring robust, long-lasting drawers

Key specifications

• Model: Safescan HD-5030 (Manual & automatic)
• Dimensions: 495 × 305 × 125 mm (W × D × H)
• Weight: 11.5 kg
• Colour: Black
• Cash layout: 8 banknote compartments, 8 coin cups, adjustable dividers
• Construction: Thick-gauge steel casing, shatterproof PVC tray
• Mechanism: Telescopic slides with ball bearings
• Lock: 3-position, 4-function mechanical lock
• Interface: RJ-12 outlet with microswitch (RJ-12 cable included)
• Durability: Tested for at least 2 million open/close cycles

How to use

Install the HD-5030 beneath or beside your POS terminal on a stable surface and connect the included RJ-12 cable to the compatible register or receipt printer to enable automatic opening. Alternatively, operate the drawer manually using the front handle. Use the adjustable banknote dividers to organize currency denominations and place coins into the eight coin cups. The media slot can hold receipts, vouchers and credit-card slips for easy access.

Recommendations

For reliable operation, mount the drawer on a level surface, avoid overloading coin cups beyond their capacity, and periodically lubricate the telescopic slides if movement becomes stiff. Lock the drawer in the closed position when unattended and follow your site’s cash-handling procedures to maintain security.
