Managed Switch PLANET Layer 3 24-Port 10/100/1000T Gigabit Ethernet 1U

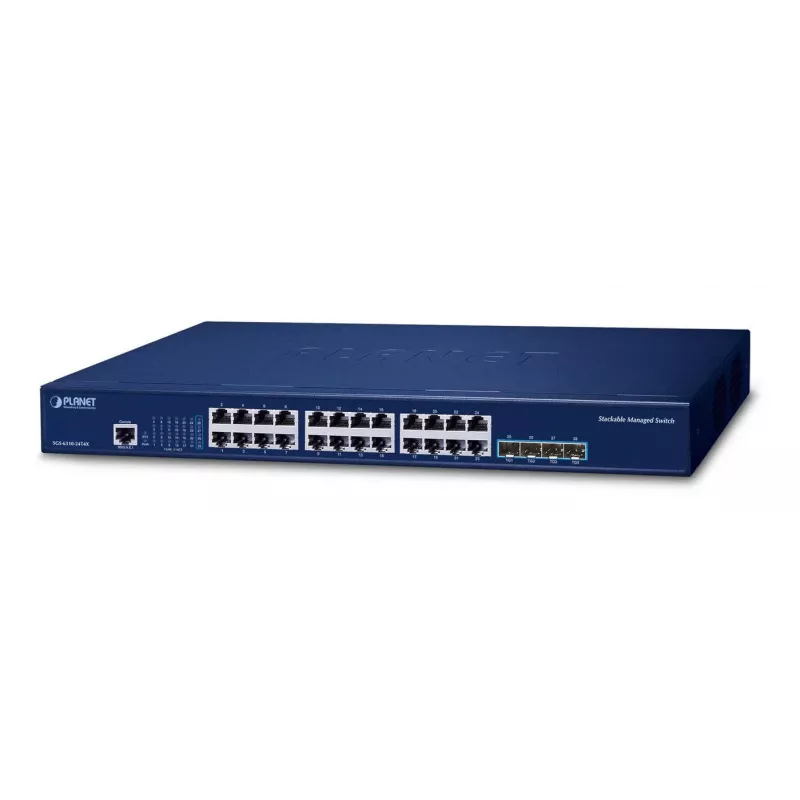

PLANET SGS-6310-24T4X is a 1U Layer 3 stackable managed gigabit switch with 24 10/100/1000BASE-T RJ45 ports and four 1G/10G SFP+ uplinks. It delivers a 128 Gbps switch fabric with non-blocking architecture and wire-speed throughput, supports dual-speed SFP/SFP+ transceivers, and is designed for enterprise, service provider and campus networks requiring high port density and 10Gbps uplink capability.

Advantages

The SGS-6310 series provides Layer 3 IPv4/IPv6 static routing plus RIP and OSPF dynamic routing, redundant ring protection (ITU-T G.8032 ERPS) and MSTP for fast recovery, extensive Layer 2–4 traffic control and ACL-based security, and full IPv6 management features. Centralized hardware stacking using SFP+ links enables logical stacks with hot-swap capability and high uplink bandwidth. Additional features include SFP DDM telemetry, web/console/SNMPv3 management, SSH/TLS secure access, and comprehensive multicast support.

Suitable for

• Enterprise access or distribution layer with high port density
• Campus networks and service provider aggregation
• Environments requiring 10Gbps uplinks and virtual stacking
• Networks needing Layer 3 routing (static, RIP, OSPF) and IPv6 support
• Deployments requiring fast ring recovery and strong multicast handling

Key specifications

• Model: SGS-6310-24T4X (PLANET)
• Ports: 24 x 10/100/1000BASE-T RJ45; 4 x 1G/10G SFP+
• Switching capacity: 128 Gbps fabric; up to 80 Gbps wire-speed throughput
• Layer 3: IPv4/IPv6 static routing, RIP, OSPF
• Resilience: ERPS (G.8032), MSTP (802.1s)
• Multicast: IGMPv1/v2/v3 snooping, MLDv1 snooping, MVR
• Security: L2–L4 ACL, 802.1X, DHCP snooping, IP Source Guard, DAI
• Management: Web GUI, CLI (console/Telnet), SNMPv3, SSHv1/v2, TLSv1.2
• Physical: 1U rack, fanless design, weight 2.6 kg, colour: blue

How to use

Install the SGS-6310-24T4X in a standard 19-inch rack using its 1U chassis. Connect access devices to the 24 RJ45 ports and use the SFP+ ports for 1G/10G uplinks or stacking links with compatible SFP/SFP+ transceivers. Configure Layer 2 settings (VLANs, link aggregation, MSTP) and Layer 3 routing (static routes, RIP or OSPF) via the web GUI or CLI. Enable security features such as ACLs, 802.1X, DHCP Snooping and IP Source Guard to protect the edge, and monitor SFP parameters using DDM where supported.

Recommendations

Use dual-speed SFP+ modules chosen for the required distance and rate (10G or 1G). For stacked deployments, dedicate SFP+ links for stack rings to maximize redundancy and throughput. Enable ERPS or MSTP in ring topologies to achieve sub-10ms recovery in simple ring configurations, and apply QoS/Wrr and Layer 4 classifiers to prioritize VoIP and video traffic.
