Managed Switch PLANET IP30 4-Port Gigabit Ethernet PoE

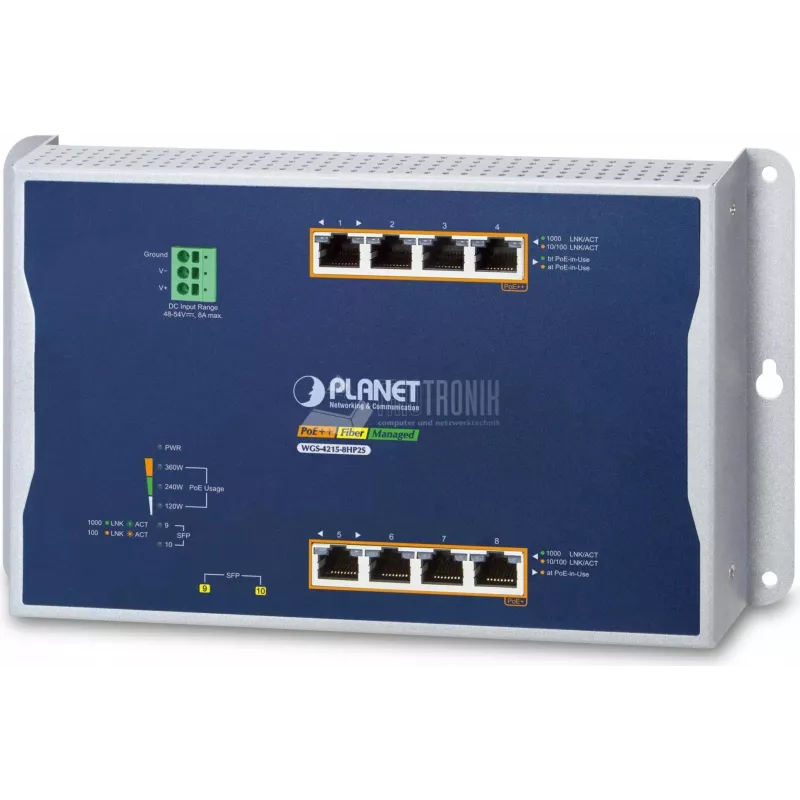

PLANET WGS-4215-8HP2S is an industrial wall-mount managed PoE++ switch designed for compact, space-limited installations. It provides IPv4/IPv6 dual-stack management, advanced L2+/L4 switching, eight Gigabit copper ports with mixed high-power PoE output and two Gigabit TP/SFP combo slots. Housed in an IP30 metal chassis and rated to operate from -40 to 75 °C, the switch offers a total PoE power budget up to 360 W to support a range of powered devices in industrial and commercial networks.

Advantages

The switch supports IEEE 802.3bt PoE++ and PoH to deliver up to 90–95 W per port over four-pair Cat5e/6 cabling, together with multiple selectable PoE output modes for compatibility with diverse PDs. It includes managed switch features such as advanced VLAN, QoS, aggregation and IGMP snooping, redundant ring (G.8032 ERPS) and MSTP for fast recovery, and enhanced cybersecurity with SSHv2, TLS 1.2 and SNMPv3. Front-access wall-mount design simplifies installation, cabling and maintenance in narrow enclosures.

Suitable for

• Powering high-consumption PoE devices (PTZ cameras, AIO displays, PoE lighting)
• Surveillance and security systems in space-limited enclosures
• Wireless AP and VoIP deployments requiring managed PoE control
• Industrial automation networks requiring redundancy and fast recovery

Key specifications

• Port configuration: 4 × 10/100/1000BASE-T with 95 W 802.3bt PoE++; 4 × 10/100/1000BASE-T with 36 W 802.3at PoE+; 2 × Gigabit TP/SFP combo
• Total PoE budget: up to 360 W
• PoE output modes: 95W UPOE/PoH, 90W 802.3bt, 60W Force, 30W End-span, 30W Mid-span
• Switching engine: L2+/L4 with QoS and ACL support
• VLANs: 802.1Q tagged VLAN, up to 256 VLAN groups
• Link aggregation: up to 2 trunk groups (2 ports per trunk)
• Redundancy: ITU-T G.8032 ERPS, MSTP (802.1s)
• Security: SSHv2, TLS 1.2, SNMPv3, 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• SFP support: 100BASE-FX and 1000BASE-SX/LX SFP modules; SFP-DDM diagnostic
• Operating temperature: -40 to 75 °C
• Housing: IP30 metal wall-mount
• Management: Web GUI, CLI (Telnet/SSH), SNMP

How to use

Install the switch using the front-access wall-mount points inside an enclosure or on a flat wall surface to allow easy cabling and LED monitoring. Connect network devices to the Gigabit ports or SFP slots as required, configure IP management (IPv4/IPv6), set VLANs, QoS and security policies through the Web interface or CLI, and choose the appropriate PoE output mode for connected powered devices. Use SNMPv3 for encrypted remote management and monitor PoE usage, PD status and SFP diagnostics during operation.

Recommendations

For reliable operation in surveillance and industrial scenarios, select the PoE output mode that matches device power requirements and enable PD alive check and scheduled power recycling to automatically reset unresponsive devices. Place the unit in a ventilated enclosure and use appropriate SFP transceivers for required fiber distance.
