Managed PoE Switch Hikvision Pro Series 4-Port Fast Ethernet (5x 10/100 RJ-45, 54V DC, 2000 MAC, 1.2 Gbit/s)

Hikvision Pro Series Managed PoE Switch with four PoE-enabled Fast Ethernet ports plus one additional Fast Ethernet uplink provides compact, managed switching for small network deployments. The unit supports IEEE 802.3af/at PoE standards, a MAC address table of 2000 entries and a switching capacity of 1.2 Gbit/s. Powered from a 54 V DC input and available in a wall-mountable, grey metal housing, the switch is designed for powering and connecting IP cameras, VoIP devices and other PoE endpoints while offering basic managed features such as VLAN, STP/RSTP and topology recognition for easy integration into surveillance and access networks.

Advantages

The switch offers centralized PoE power delivery with a total PoE budget of 45 W, simplifying installation of powered devices without separate power supplies. Managed features include 802.1Q VLAN support, STP/RSTP loop prevention and PoE watchdog to detect and restart unresponsive cameras. Additional benefits include cable detection and up to 300 m long-range PoE transmission for extended deployments, as well as 6 kV surge protection to reduce risk from power transients. Its small footprint and wall-mountable design make it suitable for constrained spaces.

Suitable for

• Small IP camera systems and CCTV edge installations
• VoIP phones and small office telephony setups
• Edge network segments requiring managed switching and VLANs
• Sites needing extended PoE reach or surge-protected connections

Key specifications

• Switch type: Managed
• Ports: 5 × 10/100 Mbps RJ-45 (4 PoE-enabled, 1 uplink)
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Total PoE power budget: 45 W
• MAC address table capacity: 2000 entries
• Switching capacity: 1.2 Gbit/s
• Networking features: 802.1Q VLAN, 802.1D, 802.1w, STP/RSTP
• Long-range PoE transmission up to 300 m
• Surge protection: 6 kV
• Power input: 54 V DC via DC-in jack
• Physical: wall-mountable, grey housing; weight approximately 0.26 kg

How to use

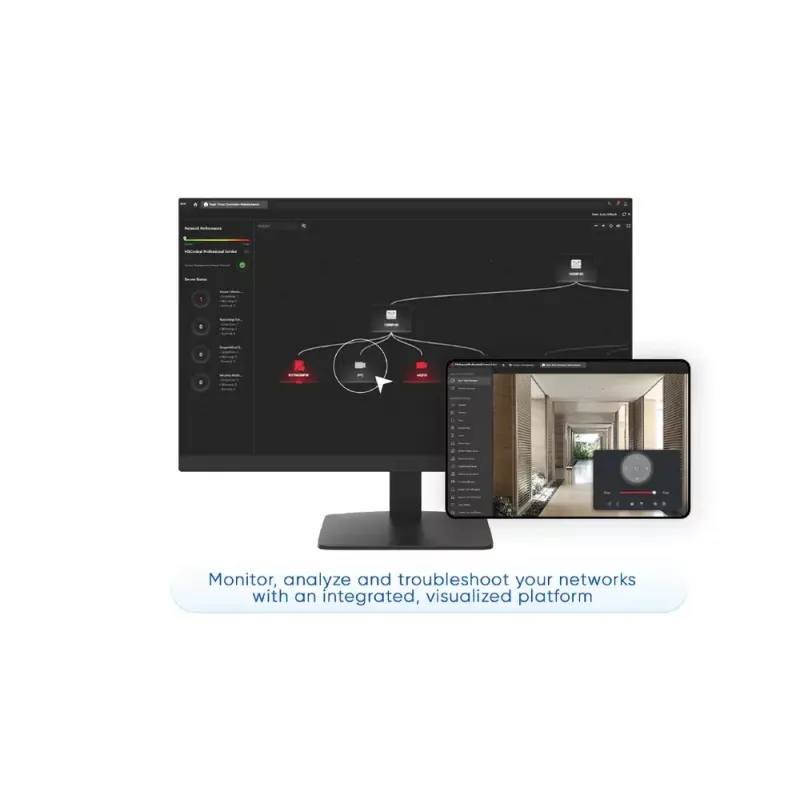

Install the switch on a wall or other suitable surface and connect the 54 V DC power adapter to the DC-in jack. Connect IP cameras, VoIP phones or other PoE-capable devices to the PoE-enabled RJ-45 ports; use the remaining RJ-45 port as an uplink to your router or core switch. Access the management interface through the network to configure VLANs, STP/RSTP, PoE watchdog and other settings. Use the topology recognition feature to discover connected IP devices and verify correct network layout.

Recommendations

For reliable operation, ensure the total PoE power consumption of connected devices does not exceed the 45 W budget. When deploying cameras at distances greater than 100 m, verify PoE long-range mode and cable quality to achieve up to 300 m transmission. Enable STP/RSTP to protect against network loops and configure VLANs to segment camera traffic from other network services.
