ATTE SWPS-4-11-DIN4 Industrial 4-Port PoE+ Switch with Built-in Power Supply, DIN Rail Mount, 60W Budget

Equipped with a robust 60W PoE budget and four 10/100 Mbps PoE+ ports, this industrial switch delivers reliable power and data over a single cable to IP cameras, wireless access points, and other network devices. Its built-in AC power supply and DIN rail mounting make it an ideal solution for harsh environments and space-constrained installations.

Overview

The ATTE SWPS-4-11-DIN4 is an industrial-grade 4-port PoE+ switch with an additional uplink port, designed for demanding applications. It supports IEEE 802.3af/at standards, providing up to 30W per port. The switch features a metal housing, wide operating temperature range from -25°C to +65°C, and protection against overload, short circuit, and overvoltage, ensuring dependable performance in critical infrastructure.

What stands out

• Four 10/100 Mbps PoE+ ports with a total power budget of 60W
• Built-in AC power supply (100-240V AC) eliminates the need for external adapters

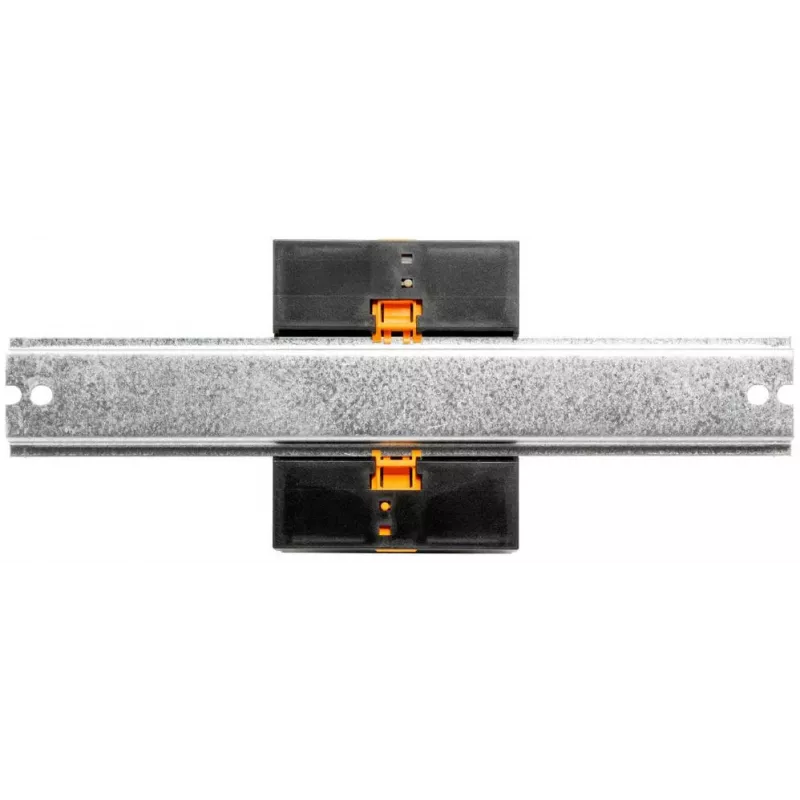

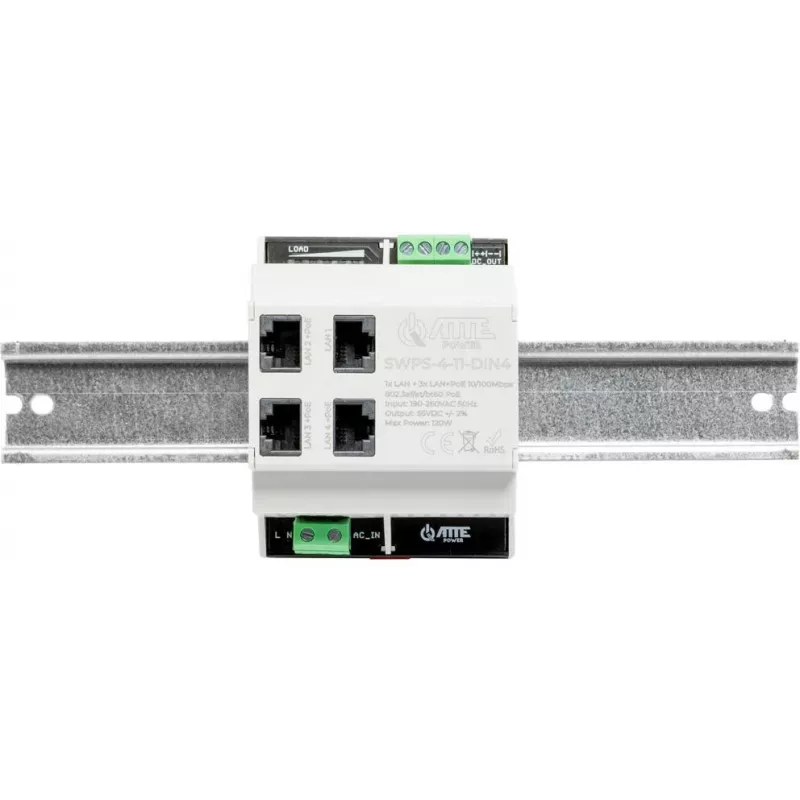

• DIN rail TH35 mounting for easy integration into industrial control cabinets
• Wide operating temperature range (-25°C to +65°C) and metal housing for harsh environments
• LED indicators for power, link/activity, and PoE status simplify monitoring

Technical details

• PoE Standard: IEEE 802.3af/at (PoE+)
• Number of PoE Ports: 4
• Number of Uplink Ports: 1 (10/100 Mbps)
• Switching Capacity: 1 Gbps
• MAC Address Table: 2K entries
• Jumbo Frame Support: 1536 bytes
• Input Voltage: 100-240V AC, 50/60Hz
• Protection: Overload, short circuit, overvoltage
• Operating Temperature: -25°C to +65°C
• Housing: Metal

Our verdict

A compact and rugged PoE switch that delivers reliable power and connectivity in industrial settings. Its built-in power supply and DIN rail mount make installation straightforward, while the wide temperature range and protective features ensure long-term operation. An excellent choice for surveillance, automation, and edge networking.
