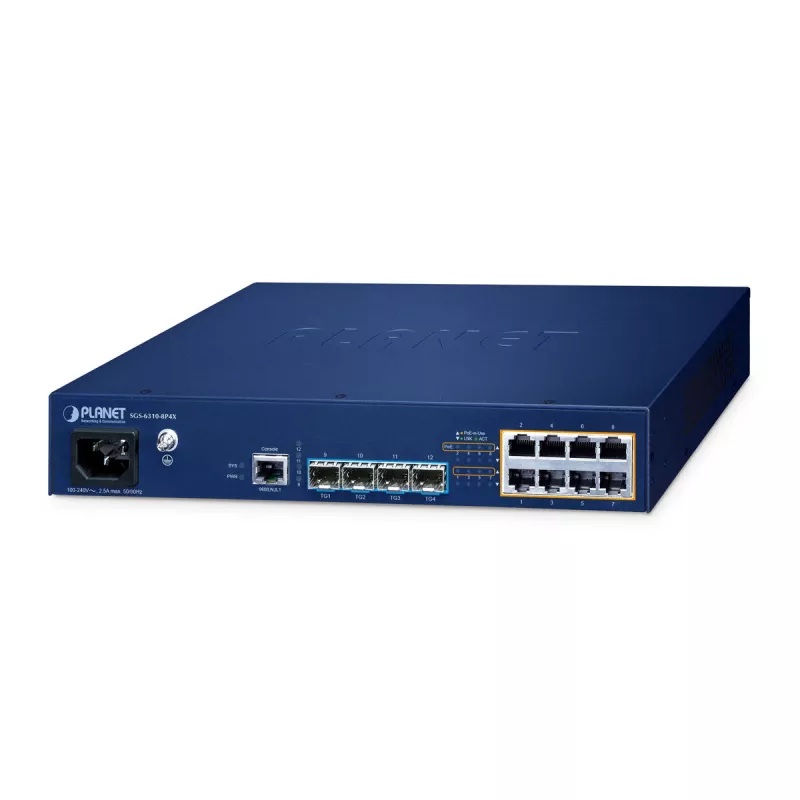

Managed L3 Gigabit Ethernet Switch PLANET SGS-6310-8P4X 8 Ports PoE

The PLANET SGS-6310-8P4X is a managed Layer 3 gigabit Ethernet switch with 8 IEEE 802.3at PoE+ RJ45 ports and 4 1G/10G SFP+ uplink ports in a 1U fanless chassis. It provides a 128 Gbps switch fabric, Layer 3 routing (static, RIP, OSPF), ERPS ring protection, IPv6 support and advanced Layer 2–Layer 4 traffic control. The switch integrates PLANET UNI-NMS and NMSViewerPro solutions for centralized and remote network and power management, and supports SFP DDM for transceiver monitoring. It accepts DC input in the range 36–72 V and is intended for enterprise, service provider and industrial deployments requiring PoE power and 10Gbps uplinks.

Advantages

The SGS-6310-8P4X combines high-density PoE delivery and 10Gbps-capable SFP+ uplinks with Layer 3 routing and rich L2/L4 features, enabling flexible stacking and centralized management. Its fanless design reduces noise for noise-sensitive environments while the PoE scheduling and centralized power management help reduce energy use and simplify deployments. Integrated UNI-NMS and NMSViewerPro permit remote discovery, configuration and monitoring of large-scale networks, improving operational efficiency.

Suitable for

• IP surveillance networks with PoE cameras
• Enterprise and campus core or aggregation switch
• Small to medium service provider edge with 10Gbps uplinks
• VoIP and wireless LAN deployments requiring centralized PoE management

Key specifications

• Ports: 8 x 10/100/1000BASE-T RJ45 (PoE+), 4 x 1G/10G SFP+
• PoE: IEEE 802.3at on all RJ45 ports, total PoE budget up to 120 W
• Switch fabric: 128 Gbps; throughput up to 80 Gbps wire-speed
• Layer 3: Static routing, RIP, OSPF
• Redundancy: ERPS (G.8032), MSTP
• Multicast: IGMPv1/v2/v3, MLDv1, MVR
• IPv6: Full support, tunnels (ISATAP, IPv4/IPv6 tunnels) and IPv6 management
• Management: UNI-NMS, NMSViewerPro, Web GUI, CLI (Cisco-like), SNMPv3, SSH, SSL
• Physical: fanless 1U chassis, weight ~1.622 kg, colour: blue
• Power input: DC 36–72 V

How to use

Install the SGS-6310-8P4X in a standard 1U rack or place it on a flat surface for fanless operation. Connect powered devices to the RJ45 PoE ports and uplink to aggregation or core switches using SFP/SFP+ transceivers selected for required distance and speed (1G/10G). Use the web GUI or CLI for initial configuration: set VLANs, port aggregation, Layer 3 routing (static, RIP or OSPF) and ERPS or MSTP for redundancy. Register the device with PLANET UNI-NMS or scan the NMS agent QR code in the NMSViewerPro mobile app to enable centralized monitoring, alerts and remote configuration.

Recommendations

For stable PoE operation, ensure the total connected PoE load does not exceed the 120 W budget and plan device placement with adequate uplink bandwidth. Use SFP+ transceivers that match link distance and speed requirements and enable PoE scheduling to reduce power consumption during off-hours. Deploy ERPS or MSTP in ring topologies for fast recovery and register the switch with UNI-NMS or NMSViewerPro to simplify remote management and monitoring.
