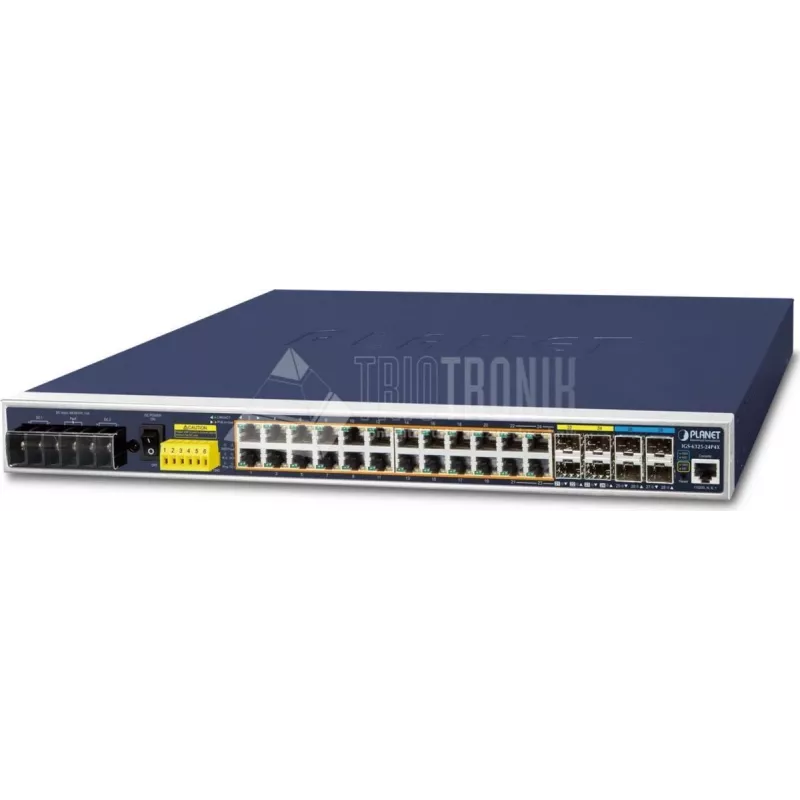

Managed L3 Gigabit Ethernet Switch PLANET IGS-6325-24P4X 24 Ports PoE

The PLANET IGS-6325-24P4X is a managed Layer 3 Gigabit Ethernet switch designed for hardened industrial environments. It provides 24 10/100/1000BASE-T PoE+ ports (802.3at) with up to 36 W per port, 4 shared SFP ports and 4 10G SFP+ ports in a 1U rackable chassis. With 10 Gb uplinks, a 128 Gbit/s switching capacity and a MAC address table for large deployments, it supports IPv4/IPv6 management, L2/L4 switching features and Layer 3 OSPFv2 dynamic routing. The switch is built for reliable operation in extreme temperatures (−40 to 75 °C) and is suitable for IP surveillance, wireless access and industrial automation networks.

Advantages

The switch combines high PoE power (total 440 W budget) and 10G uplink flexibility with industrial-grade features such as ITU-T G.8032 ERPS for fast ring recovery, Modbus TCP for factory connectivity and IEEE 1588 timing support. It offers extensive security and management options including SSHv2, TLS/SSL, SNMPv3, RADIUS/TACACS+, DHCP Snooping, IP Source Guard and 802.1X authentication. Additional functions such as ONVIF device detection, intelligent PoE alive check, PoE scheduling and scheduled power recycling simplify deployment and maintenance of surveillance and wireless systems.

Suitable for

• Industrial IP surveillance systems with multiple PoE cameras
• Wireless access point clusters and enterprise Wi‑Fi backbones
• Factory automation and SCADA/HMI integration via Modbus TCP
• High‑availability edge switching with ring topologies and 10G uplinks
• Carrier/telecom timing and synchronization applications (IEEE 1588)

Key specifications

• Ports: 24 × Gigabit RJ‑45 PoE+ (802.3at), 4 × SFP (shared), 4 × SFP+ 10G
• PoE budget: total 440 W; per port up to 36 W
• Switching capacity: 128 Gbit/s
• MAC address table: 16,000 entries
• Layer 3: IPv4/IPv6 static routing, OSPFv2 dynamic routing
• Redundancy and recovery: ITU‑T G.8032 ERPS, 802.1s MSTP (recovery ~10 ms in ring)
• Security: SSHv2, TLS/SSL, SNMPv3, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1X
• Protocols and standards: IEEE 1588, IEEE 802.1Q/p/s/w/x, IEEE 802.3/3ab/3ad/3ae/3at/3af
• Operating temperature: −40 to 75 °C
• Power input: DC 48–56 V (redundant power supported)
• Dimensions/weight: 1U rackmount; weight 3.8 kg

How to use

Mount the IGS-6325-24P4X in a 19-inch rack and connect DC power within the specified 48–56 V range, using redundant power inputs if required. Connect network devices to the Gigabit PoE ports and SFP/SFP+ uplinks according to bandwidth needs; install compatible SFP/SFP+ transceivers for required fiber distances or speeds. Configure VLANs, Layer 3 routes or OSPFv2 through the IPv4/IPv6 management GUI or CLI, enable PoE schedule and alive check to manage powered devices, and set up security features (802.1X, ACLs, SNMPv3, RADIUS/TACACS+) to control access and monitoring. Use the ONVIF discovery tool in the GUI to locate cameras and apply PoE reboot or scheduling where necessary.

Recommendations

For stable long‑term operation in industrial settings, use quality SFP/SFP+ transceivers that match your fiber type, enable ERPS or MSTP for ring topologies, and configure PoE scheduling and periodic power recycling for cameras or APs to reduce crashes. Apply SNMPv3 and secure management protocols (SSHv2/TLS) and integrate Modbus TCP where SCADA/HMI monitoring is required.
