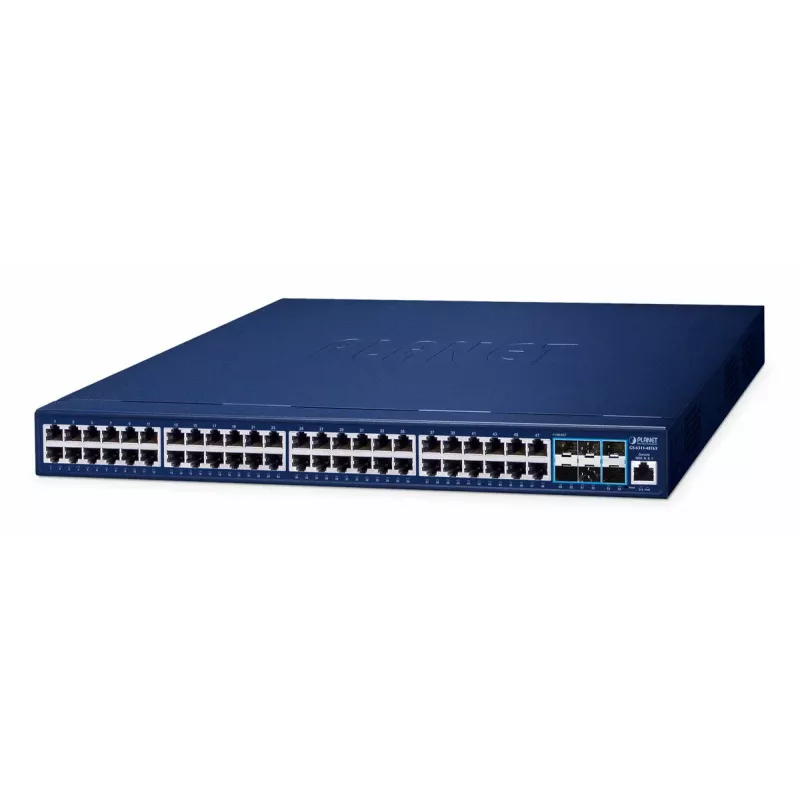

Managed Ethernet Switch PLANET GS-6311-48T6X 48-Port 10/100/1000T 6-Port 10G SFP+

PLANET GS-6311-48T6X is a Layer 3 managed Ethernet switch designed for enterprise backbone and data center networking. It provides 48 10/100/1000BASE-T RJ45 ports and 6 1G/10G SFP+ ports with a 216 Gbps switching fabric in a 1U fanless chassis, offering high-density connectivity and 10 Gbps uplink capacity for demanding network environments.

Advantages

The switch delivers non-blocking, wire-speed throughput and supports dual-speed SFP/SFP+ transceivers (10GBASE-SR/LR and 1000BASE-SX/LX) to flexibly match transmission distance and speed requirements. It includes Layer 3 static routing plus RIP and OSPF dynamic routing, extensive multicast support (IGMP/MLD snooping, MVR), and full IPv6 management. Advanced Layer 2–4 traffic control, WRR queuing, comprehensive ACLs, 802.1x authentication and protection features such as DHCP Snooping, IP Source Guard and Dynamic ARP Inspection enhance security and traffic management.

Suitable for

• Enterprise backbone switching and aggregation
• Data center access or top-of-rack with 10G uplinks
• Service provider edge for VoIP, video streaming and multicast delivery
• Multi-tenant or multi-department networks requiring traffic and bandwidth control

Key specifications

• Ports: 48 x 10/100/1000T RJ45, 6 x 1G/10G SFP+
• Switching capacity: 216 Gbps
• Layer 3: Static routing, RIP v1/v2, OSPF v2
• Multicast: IGMPv1/v2/v3 snooping, MLD v1/v2 snooping, MVR
• Security: ACLs (L2–L4), 802.1x, RADIUS, DHCP Snooping, IP Source Guard, DAI
• Management: Web GUI, CLI (console/Telnet), SNMPv3, SSHv2
• MAC table: 8,000 entries (product data summary)
• Form factor: 1U fanless chassis, weight approx. 3.676 kg

How to use

Install the GS-6311-48T6X in a standard 19-inch rack and connect uplink optics or copper to aggregation/core switches or servers. Configure basic Layer 2 settings (VLANs, port speed, LACP) via the web interface or CLI, then enable routing (static routes or RIP/OSPF) for inter-VLAN or inter-subnet traffic. Set multicast and IGMP/MLD snooping for efficient multicast distribution, and apply ACLs, 802.1x and DHCP Snooping to secure edge ports.

Recommendations

For best results in enterprise and data center environments, use 10G SFP+ modules for uplinks to aggregation/core switches, enable MSTP or ERPS for ring protection, and apply WRR and QoS policies to prioritise VoIP and video traffic while deploying DHCP Snooping and IP Source Guard to protect against IP spoofing.
