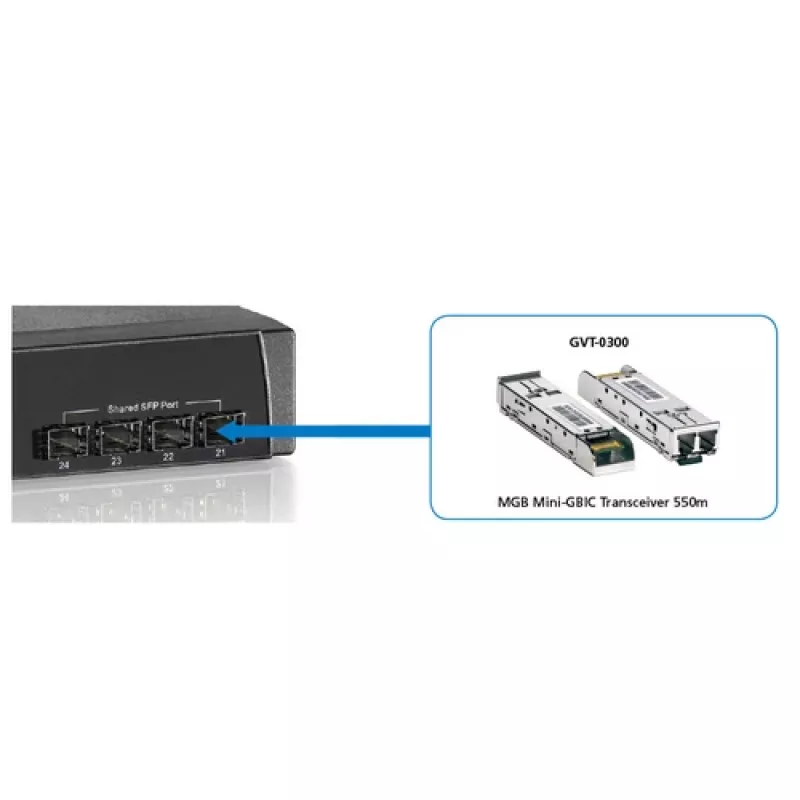

LevelOne SFP Transceiver 1.25Gbps MM Duplex LC 850nm 550m

The LevelOne SFP Transceiver is a high-performance, hot-swappable Small Form-Factor Pluggable module designed for Gigabit Ethernet applications. It supports multi-mode fiber with a duplex LC connector, operating at a wavelength of 850 nm and providing a maximum transmission distance of 550 meters. This transceiver is compliant with IEEE 802.3z and SFP MSA standards, ensuring reliable and efficient data transmission.

Advantages

This SFP transceiver offers seamless integration into existing network infrastructure, supporting hot-plug capability for easy installation and replacement without network downtime. With digital diagnostic monitoring (DDM), it provides real-time performance monitoring for enhanced network management. Its low power consumption of less than 1W makes it an energy-efficient choice for data centers and enterprise networks.

Suitable for

• Gigabit Ethernet connections in local area networks (LANs)
• Data center interconnects
• Enterprise network backbone
• Fiber-to-the-desk applications

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Fiber Type: Multi-mode (MM)
• Wavelength: 850 nm
• Max Transmission Distance: 550 m
• Connector Type: Duplex LC
• Hot-Swappable: Yes
• Digital Diagnostic Monitoring (DDM): Yes
• Power Supply: 3.3 V
• Operating Temperature: 0°C to 70°C
• Standards Compliance: IEEE 802.3z, SFP MSA
• Duplex Mode: Full-duplex
• Laser Type: VCSEL
• Application: Gigabit Ethernet
• Cable Compatibility: OM1, OM2, OM3, OM4 Multi-mode Fiber
• Power Consumption: <1 W
• Form Factor: Pluggable Module
• Interface: Optical Fiber

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber cables to achieve maximum distance. Ensure compatibility with your switch or router's SFP slot. This transceiver is ideal for upgrading network speed to Gigabit Ethernet without replacing existing fiber infrastructure.
