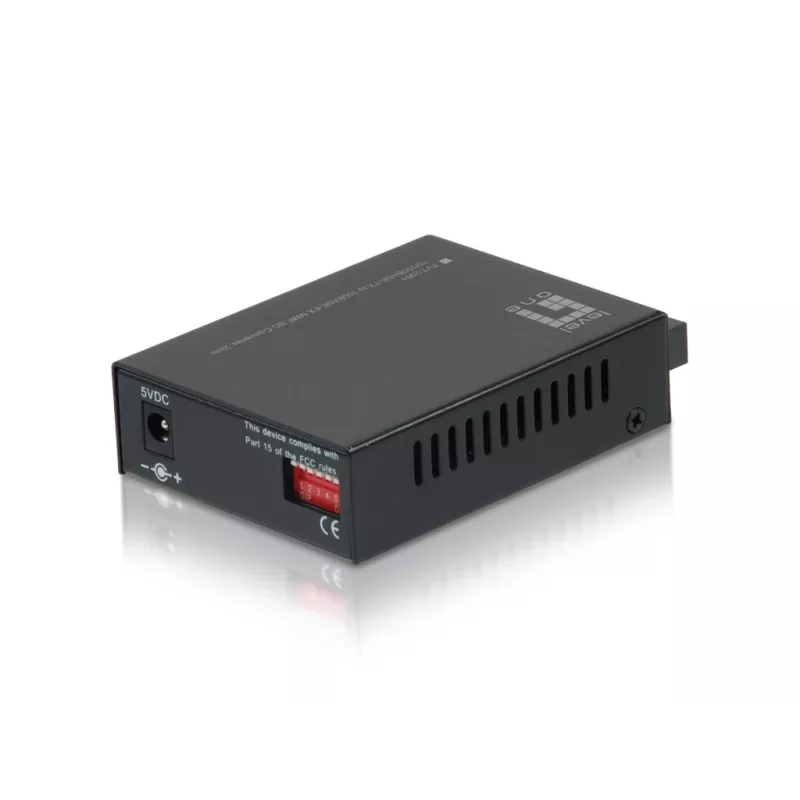

LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 2km

LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 2km
LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 2km
LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 2km
LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 2km
R1,212
The FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-op... Read More
Stock Out Of StockNo Stock Code 111353 Brand LEVELONE Model FVT-2001 Warranty 2 Years

Shipping & Returns

The FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2km.

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.

The FVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 2km. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A

Key Highlights
  • Wired
  • 100 Mbit/s 2000 m 1310 nm
  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Multi-mode SC 50/125,62.5/125 µm
  • Black
Specifications
AC adapter included
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Certification
FCC, CE
Compliance certificates
RoHS
Connectivity technology
Wired
Converter input interface
10Base-T, 100Base-TX
Converter output interface
100Base-FX
Country of origin
China
DC-in jack
Yes
Depth
70 mm
Duplex system
Full, Half
Ethernet interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Fiber mode structure
Multi-mode
Fiber optic connector
SC
Flow control support
Yes
Harmonized System (HS) code
85176990
Height
25 mm
Input current
1 A
Input voltage
5 V
Internal
No
LED indicators
Activity, Link
Link Loss Carry Forward (LLCF) supported
Yes
Link Loss Return (LLR) supported
Yes
Maximum data transfer rate
100 Mbit/s
Maximum transfer distance
2000 m
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
40 - 75 °C
Package depth
125 mm
Package height
55 mm
Package type
Box
Package weight
494 g
Package width
235 mm
Power over Ethernet (PoE) ports quantity
1
Product colour
Black
Quick installation guide
Yes
Storage temperature (T-T)
-10 - 55 °C
Store-and-forward
Yes
Wavelength
1310 nm
Weight
420 g
Width
94 mm

Leaflet

Open Leaflet
