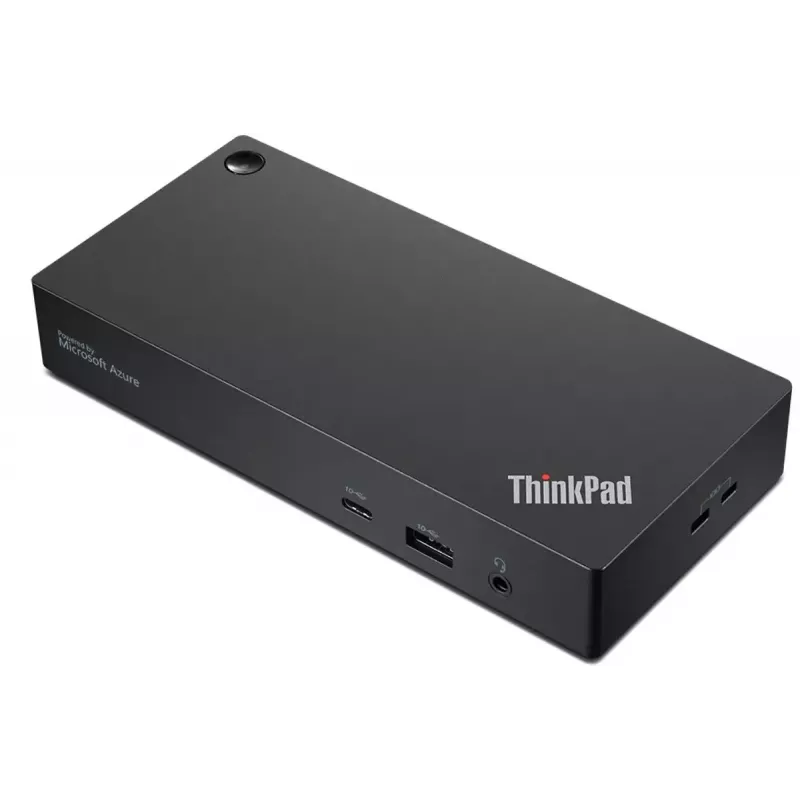

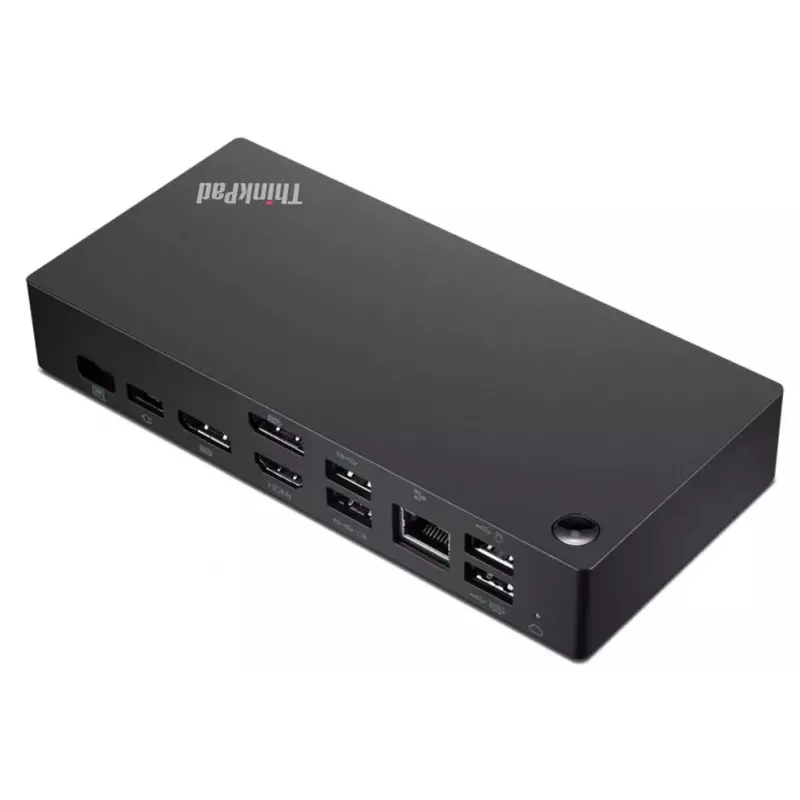

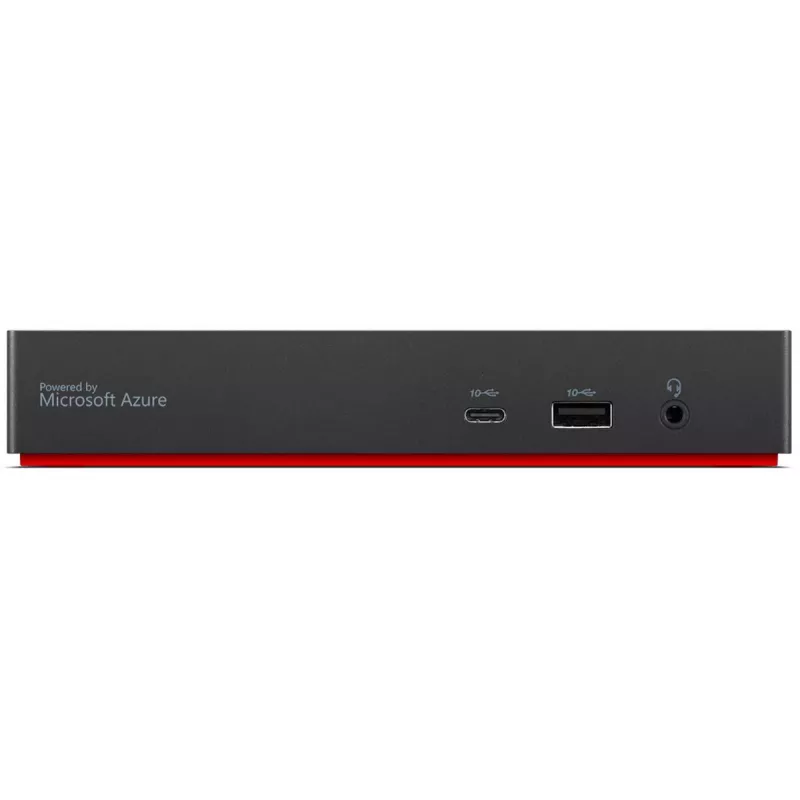

Lenovo 40B20135IT laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C Black

The Lenovo 40B20135IT Docking Station Wired USB 3.2 Gen 1 Type-A Type-C Black provides a compact, wired docking solution for laptops and desktops. It offers a mix of USB-A, USB-C and legacy USB 2.0 connectivity along with a single HDMI output and a gigabit Ethernet port, and supports USB Power Delivery up to 96W. The unit is powered by an included 135W AC power supply and is compatible with Windows 10, Windows 11 and Windows 7, delivering essential port expansion in a small black enclosure.

Advantages

The docking station consolidates multiple interfaces — USB 3.2 Gen 1 Type-A, USB 2.0, HDMI and RJ-45 Ethernet — into a single wired device, reducing the need for separate adapters. Support for USB Power Delivery up to 96W enables charging of compatible laptops while other ports remain in use. Its compact form factor and 0.39 kg weight make it easy to position on a desk or carry between work locations. Certification by standard bodies such as FCC and CE ensures it meets common regulatory and safety requirements.

Suitable for

• Extending a laptop’s connectivity with additional USB ports and a wired Ethernet connection
• Connecting an external monitor via HDMI for presentations or extended desktop use
• Charging a compatible laptop or powering peripherals using USB Power Delivery
• Office environments that require reliable wired network access at gigabit speeds

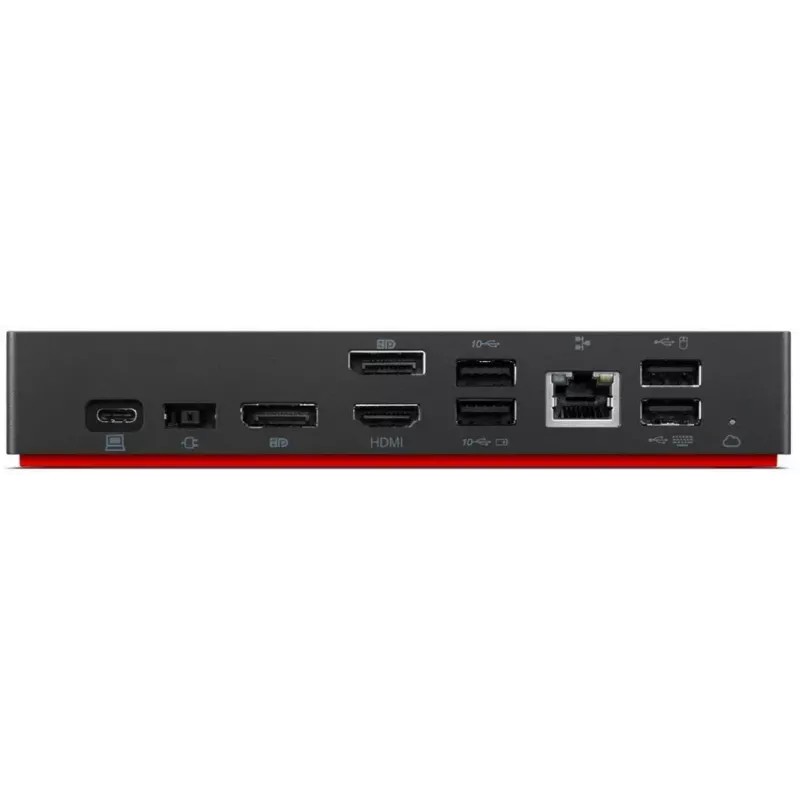

Key specifications

• Connectivity: Wired
• USB ports: one USB 3.2 Gen 1 (Type-A) port and one USB 2.0 port
• Video output: one HDMI port
• Network: one Ethernet LAN (RJ-45) port, 10/100/1000 Mbit/s
• Power delivery: USB Power Delivery up to 96W

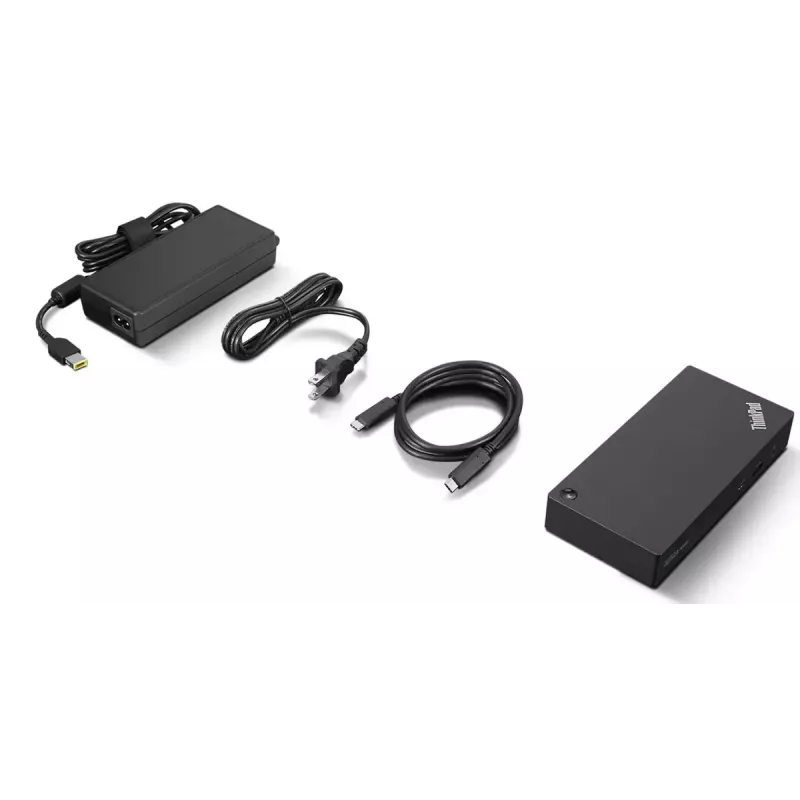

• Power supply: AC, 135W included
• Colour: Black
• Weight: 0.39 kg

How to use

Connect the docking station to AC power using the supplied 135W adapter. Attach the docking station to your computer using the appropriate USB connection (Type-C or Type-A as supported by your device). Connect an external monitor to the HDMI port if required, and plug a network cable into the RJ-45 port for wired internet access. Use the available USB ports for peripherals such as mouse, keyboard, storage devices or other accessories. Ensure your system runs a supported operating system (Windows 10, Windows 11 or Windows 7) and install any required drivers if the host OS prompts for them.

Recommendations

For stable network performance, use a high-quality Ethernet cable and avoid long runs that could degrade signal. When charging a laptop via USB Power Delivery, verify that the host device supports PD at the required wattage. Keep the docking station on a flat, ventilated surface and avoid obstructing any vents to maintain safe operating temperatures.
