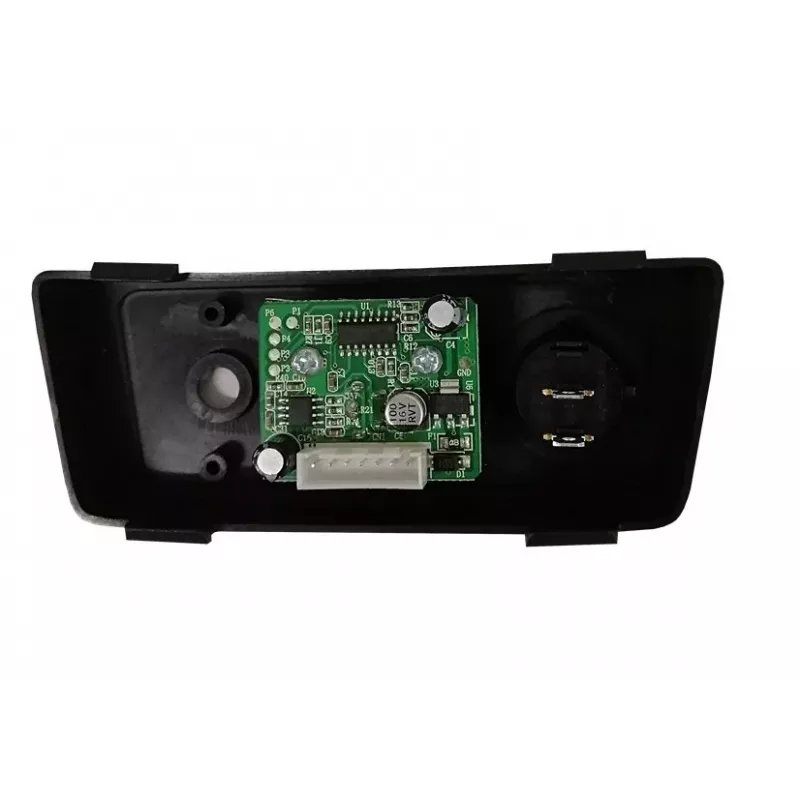

LEAN CARS Central Module Panel for Electric Ride-On Quad

The LEAN CARS Central Module Panel is the essential control hub for 12V electric ride-on quads, integrating all drive, safety, and entertainment functions into a single durable unit. Designed for universal compatibility with standard wiring harnesses, this panel simplifies installation and ensures reliable performance for children's electric vehicles.

Advantages

This central module consolidates forward/reverse drive, high/low speed modes, lights, horn, and music/sound effects into one compact panel. The 2.4 GHz wireless remote provides full directional control, speed adjustment, and an emergency stop button for added safety. Built-in overload and short circuit protection, along with a soft start function, safeguard the vehicle and extend component life. The plug-and-play design with standardized JST/Molex connectors makes installation straightforward.

Suitable for

• 12V electric ride-on quads and similar battery-powered children's vehicles
• Replacement or upgrade of existing control modules
• DIY projects requiring a centralized control system for 12V DC motors and accessories

Key specifications

• System Voltage: 12V DC
• Max Current Output: 15A
• Control Functions: Forward/Reverse Drive, High/Low Speed Modes, Lights, Horn, Music/Sound Effects
• Remote Control: 2.4 GHz Wireless with Full Directional Control, Speed Adjustment, Emergency Stop
• Safety Features: Overload Protection, Short Circuit Protection, Soft Start Function
• Input Ports: Battery Power (2-pin), Charging Port (2-pin)
• Output Ports: Drive Motor (2-pin x2 or 4-pin x1), Headlights (2-pin), Taillights (2-pin), Horn/Music Player (multi-pin)
• Control Input Ports: Accelerator Pedal (2-pin), Steering Sensor (3-pin), Gear Selector (3-pin), Remote Receiver (multi-pin)
• Indicator Lights: Power On/Off, Battery Status
• Mounting: 4-point screw mounting
• Housing Material: Durable ABS Plastic
• PCB Material: Industrial Grade FR-4
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Connectivity: Standardized JST/Molex-style connectors

Recommendations

Ensure compatibility with your vehicle's wiring harness before installation. For best performance, use with a fully charged 12V battery. Always supervise children during use.
