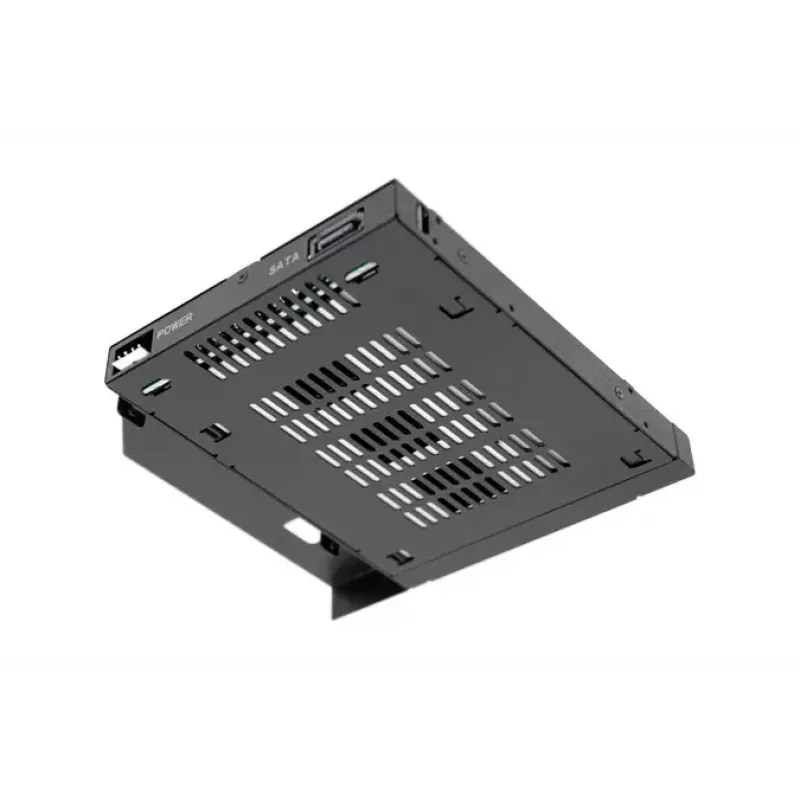

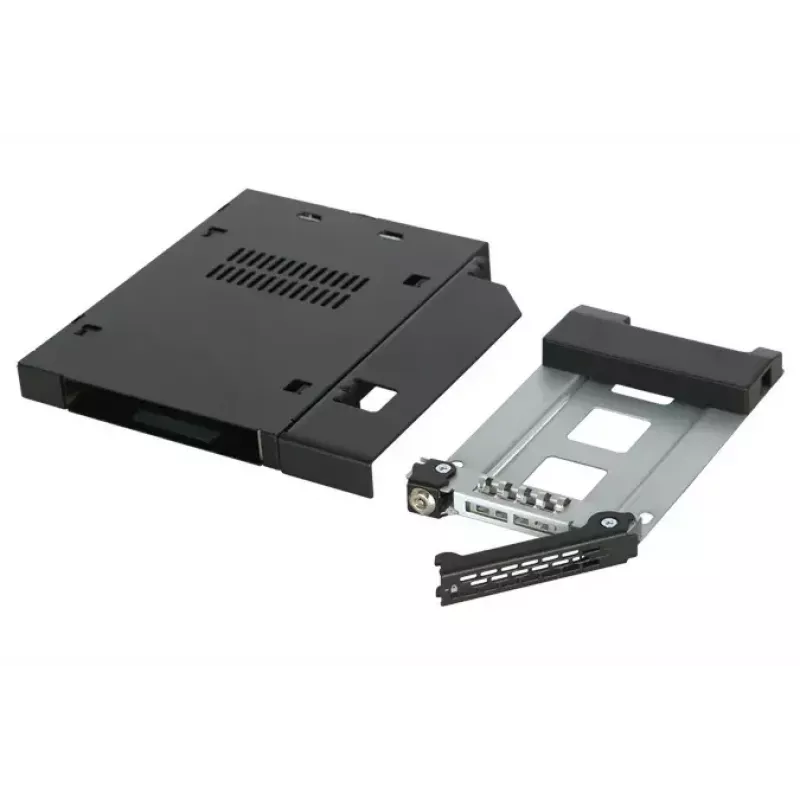

Laptop Spare Part Icy Dock MB411SKO-B

The Icy Dock MB411SKO-B is a full-metal 2.5" SATA/SAS hard drive mobile rack designed to fit into a 12.7 mm slim ODD bay or any FDD bay. With an ultra low-profile form factor nearly as slim as a 2.5" drive and a rugged metal construction, this mobile rack provides a compact, durable solution for adding a 2.5" HDD or SSD to systems with limited space, including OEM/ODM systems, embedded control systems, factory automation equipment, rackmount computers, rackmount servers and IPCs.

Advantages

The MB411SKO-B combines an all-metal enclosure, a lockable EZ Slide Micro tray and SATA locking latches to deliver secure, long-lasting storage in harsh environments. Its slim design saves space while the tray supports hot-swap operation and accepts 7–9.5 mm height 2.5" drives. Built-in LED drive activity indication, Active Power Technology (power only when a drive is inserted) and an integrated metal key lock add functional convenience and physical security.

Suitable for

• Systems with a 12.7 mm slim ODD bay
• Systems that provide an FDD bay (after removing the ODD bracket)
• Compact or embedded systems requiring additional 2.5" storage
• OEM/ODM systems, industrial automation and rackmount servers

Key specifications

• Form factor: fits 12.7 mm slim ODD or FDD bay
• Drive compatibility: 2.5" SATA / SAS HDD or SSD, 7–9.5 mm height
• Material: full metal construction (black)
• Dimensions (approx.): 128 mm (W) × 130 mm (D) × 12.7 mm (H)
• Weight: 0.215 kg
• Interfaces: 7-pin SATA with locking latches
• Features: hot-swap EZ Slide Micro tray, LED activity indicator, eagle-hook lock system, metal key lock, Active Power Technology

How to use

Insert a 7–9.5 mm 2.5" SATA or SAS drive into the EZ Slide Micro tray, close the tray latch to engage the eagle-hook lock and slide the tray into the slim ODD or modified FDD bay until it seats. For use in an FDD bay, remove the metal ODD bracket by unscrewing three screws before installation. Connect the system's SATA cable to the mobile rack; the 7-pin SATA connector includes locking latches to prevent accidental disconnection. The tray supports hot-swap replacement of drives for maintenance or upgrades.

Recommendations

For reliable operation, use drives within the specified 7–9.5 mm height range and ensure the key lock is engaged when physical security is required. In systems exposed to industrial environments, take advantage of the all-metal construction and APT feature to reduce power usage when drives are not installed.
