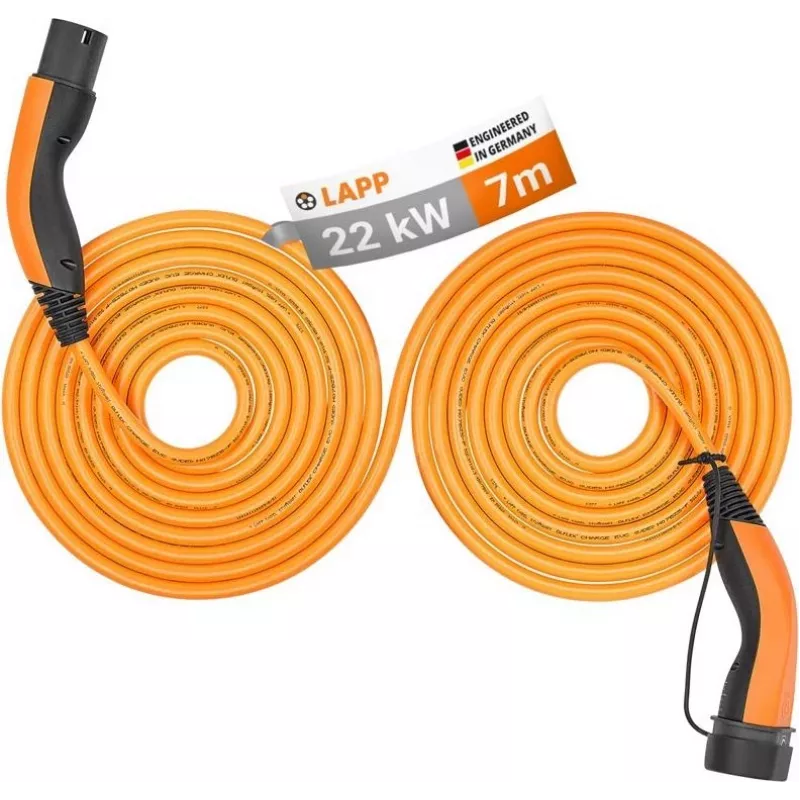

Lapp Mobility Type 2 Helix Charging Cable 22 kW 7 m Orange

The Lapp Mobility Type 2 Helix Charging Cable is a high-quality Mode 3 charging cable designed for electric vehicles. With a maximum charging power of 22 kW and a length of 7 meters, this coiled (helix) cable offers flexibility and durability for everyday charging needs. The cable is equipped with Type 2 connectors on both ends, ensuring compatibility with most European charging stations and vehicles.

Advantages

This charging cable features a robust TPE (Thermoplastic Elastomer) material that provides excellent UV, oil, and flame resistance, making it suitable for outdoor and industrial environments. The helix design keeps the cable tidy and prevents tangling, while the 7-meter length offers ample reach without excess slack. With IP44 protection rating, it is splash-proof and dust-resistant, ensuring reliable performance in various weather conditions.

Suitable for

• Electric vehicles with Type 2 charging inlet
• Public and private Type 2 charging stations
• Outdoor and indoor charging applications
• Commercial fleets and home use

Key specifications

• Connector Type: Type 2 (IEC 62196-2) on both sides
• Maximum Charging Power: 22 kW (3-phase)
• Maximum Current: 32 A
• Operating Voltage: 400 V AC
• Cable Length: 7 meters
• Cable Type: Coiled (Helix)
• Color: Orange
• Protection Rating: IP44 (connected)
• Operating Temperature: -30°C to +50°C
• Cable Material: TPE
• Conductor Configuration: 5 x 6 mm² + 1 x 0.5 mm²
• Standards: IEC 62196-2, EN 50620
• Certifications: CE, TÜV

Recommendations

For optimal performance, ensure that both the charging station and vehicle support 22 kW 3-phase charging. This cable is ideal for daily charging and is built to withstand harsh conditions. Always store the cable properly when not in use to extend its lifespan.
