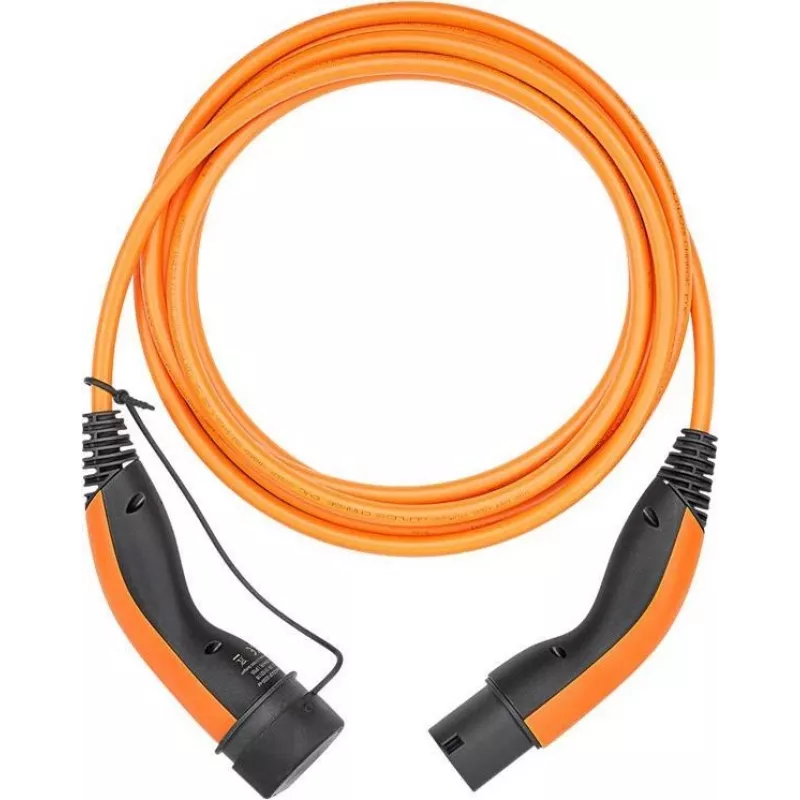

Lapp Mobility Type 2 Charging Cable, up to 22 kW, 10 m, Orange (65311)

The Lapp Mobility Type 2 charging cable is designed for electric vehicle charging, offering reliable performance and durability. With a length of 10 meters and a maximum charging power of 22 kW, this cable is suitable for both home and commercial charging stations. The orange color ensures high visibility, and the robust TPE-U sheath provides resistance to UV, oil, and flame.

Advantages

High-quality materials and compliance with international standards ensure safe and efficient charging. The 3-phase design supports fast charging, and the IP44 protection class makes it suitable for outdoor use.

Suitable for

• Electric vehicles with Type 2 inlet
• Charging stations with Type 2 socket
• Mode 3 charging applications

Key specifications

• Charging Standard: Type 2 (IEC 62196-2)
• Max Charging Power: 22 kW
• Max Current: 32 A
• Number of Phases: 3-Phase
• Cable Length: 10 m
• Cable Color: Orange
• Connector 1: Type 2 Male (Vehicle Side)
• Connector 2: Type 2 Female (Charging Station Side)
• Operating Temperature: -30°C to +50°C
• Protection Class: IP44
• Voltage Rating: 400V AC
• Conductor Material: Copper
• Outer Sheath Material: TPE-U
• UV Resistant: Yes
• Oil Resistant: Yes
• Flame Retardant: Yes
• Standards: IEC 62196-2, EN 50620
• Certifications: CE, TÜV

Recommendations

For optimal performance, ensure compatibility with your vehicle and charging station. Store the cable in a clean, dry place when not in use.
