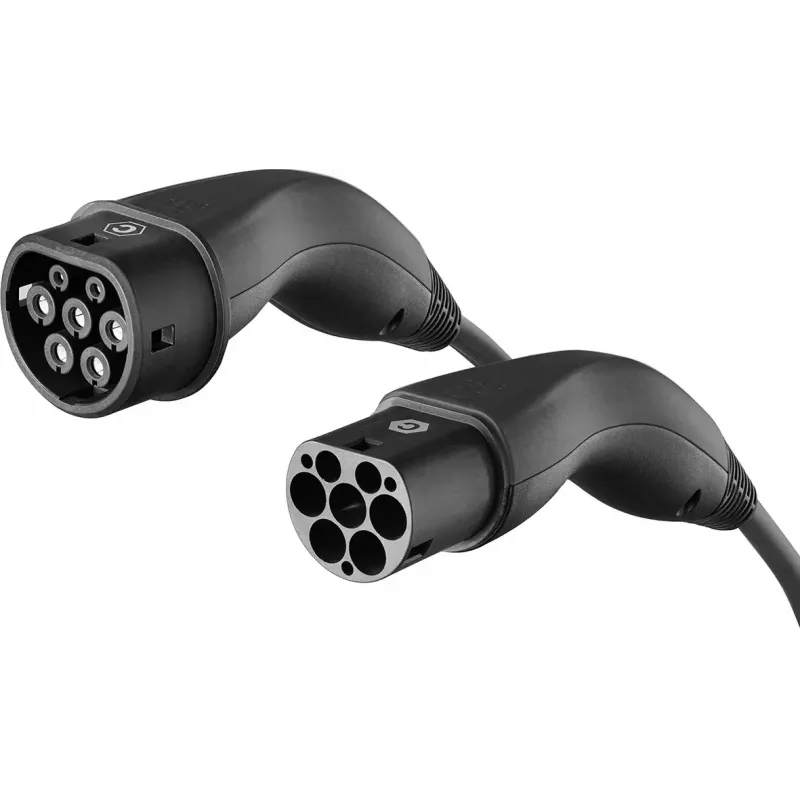

Electric Vehicle Charging Cable Lapp ÖLFLEX 5555934007 Type 2 22 kW 7 m

The Lapp ÖLFLEX 5555934007 Type 2 charging cable is a 7 m electric vehicle charging cable designed for three-phase AC charging. With a maximum power rating of 22 kW and a continuous current capacity of 32 A at up to 440 V, this cable provides a reliable connection between public or home chargers and electric vehicles equipped with Type 2 inlets. Constructed with quality materials and an industry-standard Type 2 connector interface, it is intended for everyday charging where a longer reach is required.

Advantages

The cable supports up to 22 kW three-phase charging, enabling faster recharge times compared with single-phase alternatives. Its 7 m length offers extended reach to accommodate diverse parking and charging configurations. The Type 2 connector is widely adopted across Europe and ensures compatibility with most modern electric vehicles and public charging stations. The cable assembly is built for regular use and delivers stable current up to 32 A while maintaining secure contact and proper insulation for safe operation.

Suitable for

• Charging electric cars with Type 2 inlets at home or at public AC chargers
• Three-phase AC charging scenarios up to 22 kW
• Situations requiring extended cable length (7 m) for flexible parking positions
• Users who need a robust cable for frequent daily charging

Key specifications

• Cable length: 7 m
• Connector type: Type 2 on both ends (vehicle and charging station interface)
• Maximum power: 22 kW (three-phase AC)
• Nominal current: 32 A
• Rated voltage: up to 440 V
• Suitable for three-phase charging

How to use

Before use, inspect the cable and connectors for visible damage, dirt, or moisture. Plug the Type 2 connector into the vehicle inlet until it clicks into place, and connect the opposite Type 2 plug to the charging station socket. Ensure the charging station is activated and follow any required authentication or start procedures on the charger. Monitor charging status through the vehicle or charger interface. After charging completes, stop the session via the charger or vehicle controls, unlock the vehicle inlet if applicable, and remove the connector by pulling it straight out. Store the cable coiled in a dry location away from sharp edges and sources of heat.

Recommendations

Use the cable within its rated electrical limits (32 A, up to 440 V) and avoid excessive bending near the connector heads. Keep connectors clean and dry, and avoid leaving the cable exposed to prolonged direct sunlight or extreme temperatures. If the cable shows signs of wear, damage, or compromised insulation, discontinue use and arrange inspection or replacement.
