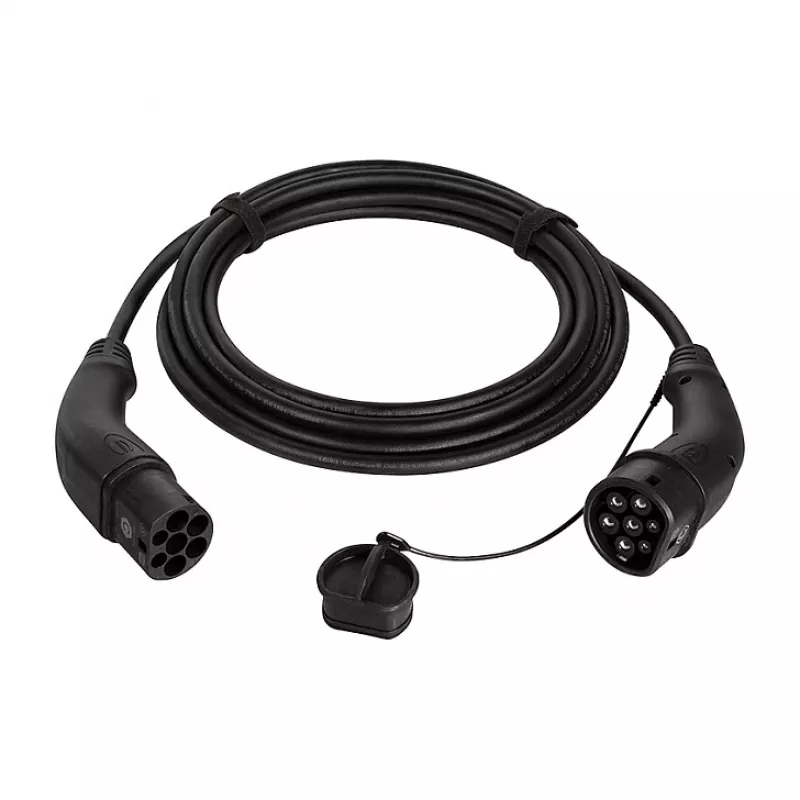

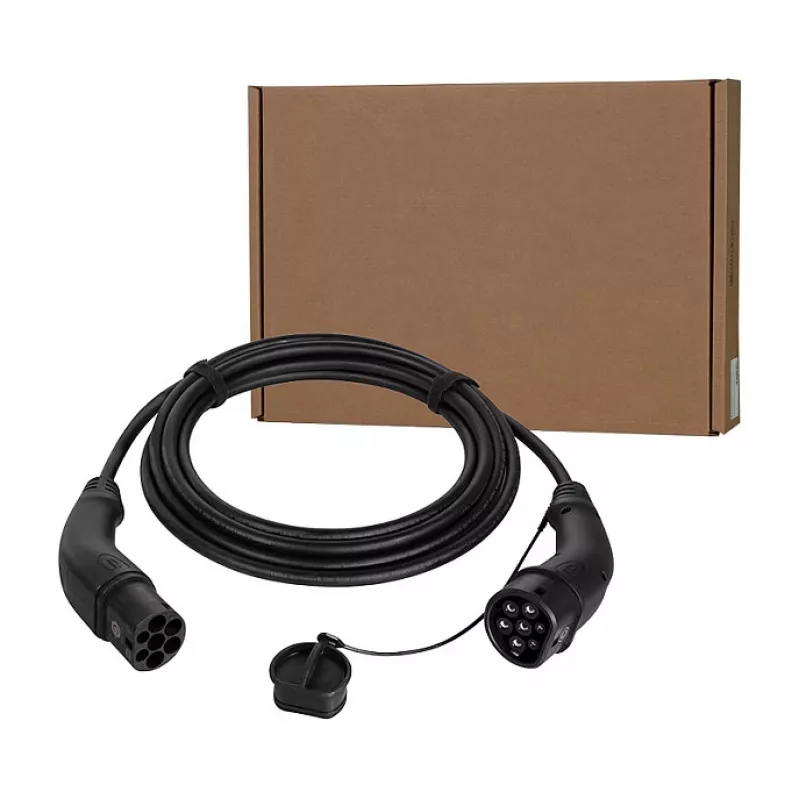

LogiLink EV Charging Cable, Type 2, 3-Phase, 32 A, 22 kW, 7.5 m

This LogiLink EV charging cable enables rapid three-phase AC charging of electric vehicles with a capacity of up to 22 kW. Designed for Type 2 charging stations, it provides a secure and robust connection between the wallbox and your vehicle, ensuring dependable charging sessions every time.

Advantages

The cable supports a maximum current of 32 A per phase and operates at 400 V AC, delivering full 22 kW charging speed. Its flexible TPU outer sheath offers exceptional durability, UV resistance, and remains pliable even in low temperatures. The IP55 rating protects against dust and water jets when connected, while the ergonomic connector housing ensures a comfortable grip. An integrated storage bag keeps the cable clean and tangle-free during transport.

Suitable for

• Electric vehicles with a Type 2 charging inlet
• Type 2 AC charging stations and wallboxes
• Home, workplace, and public charging infrastructure

Key specifications

• Cable type: EV Charging Cable
• Connector 1: Type 2 (IEC 62196-2)
• Connector 2: Type 2 (IEC 62196-2)
• Charging mode: Mode 3
• Number of phases: 3-phase
• Maximum current per phase: 32 A
• Maximum power: 22 kW
• Operating voltage: 400 V AC
• Cable length: 7.5 m
• Protection rating: IP55
• Operating temperature: -30°C to +50°C
• Cable colour: Black

Recommendations

Before use, verify that your vehicle's charging inlet and the charging station support Type 2 connectors and three-phase charging to ensure full compatibility and performance. Always unplug the cable by holding the connector, not pulling on the cable itself.
