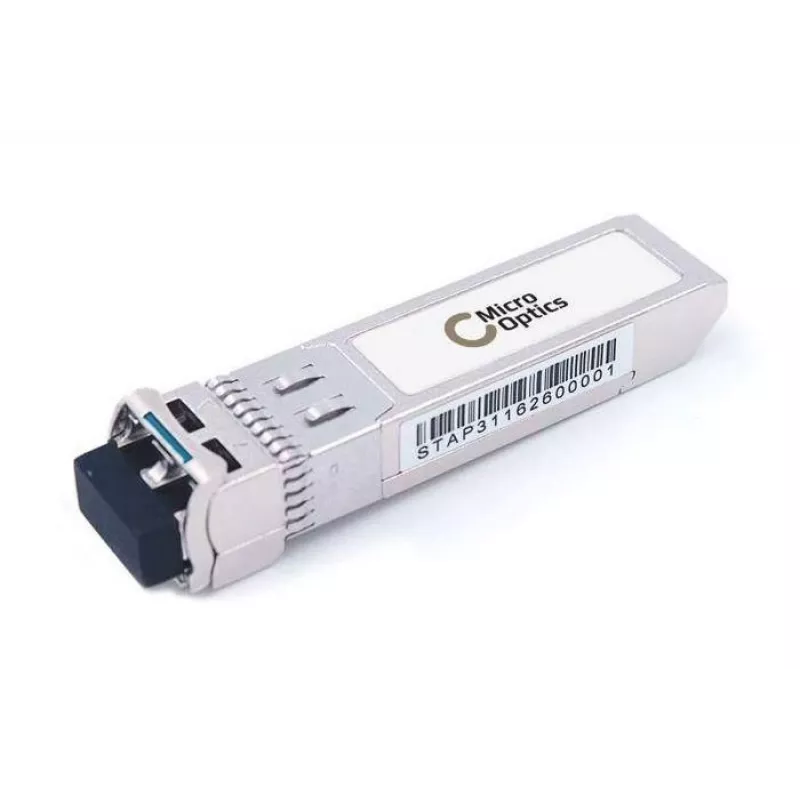

Lanview MO-MFM1T02A-LR network transceiver module 10000 Mbit/s SFP+ 1310 nm

The Lanview MO-MFM1T02A-LR is a compatible SFP+ network transceiver module designed for 10 Gbit/s links over single-mode duplex fiber. Operating at a 1310 nm wavelength and supporting distances up to 10 km, this module is suitable for long-range optical connections and is compatible with Mellanox equipment.

Advantages

The module provides 10 Gbit/s throughput in an SFP+ form factor, enabling high-speed uplinks and interconnects while maintaining compatibility with Mellanox devices. Its single-mode design and 1310 nm wavelength support long-distance transmission up to 10 km. The compact silver SFP+ package simplifies installation in standard transceiver slots.

Suitable for

• Long-distance uplinks between switches or routers
• Data center interconnects requiring single-mode fiber
• Campus backbone links and metro connections up to 10 km
• Replacing or upgrading Mellanox-compatible SFP+ ports

Key specifications

• Interface: SFP+
• Data rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 1310 nm
• Maximum reach: up to 10 km over single-mode duplex fiber
• Compatibility: Mellanox-compatible
• Manufacturer part number (MPN): MO-MFM1T02A-LR
• EAN: 5704174177968

How to use

Insert the SFP+ transceiver into an empty SFP+ slot on a compatible switch, router or network interface card until it clicks into place. Connect the single-mode duplex fiber cable (LC connector) to the transceiver's port, ensuring correct polarity. Configure the network device ports as required for 10 Gbit/s operation and verify link status through the device management interface.

Recommendations

Use single-mode fiber with appropriate LC connectors, verify device compatibility with Mellanox-supported transceivers, and follow standard electrostatic discharge (ESD) precautions during installation. For reliable links at maximum distance, use certified single-mode fiber and quality connectors.
