Lanview LVO231301-FLEX InfiniBand/fibre optic cable 2 m LC LC/LC Aqua colour

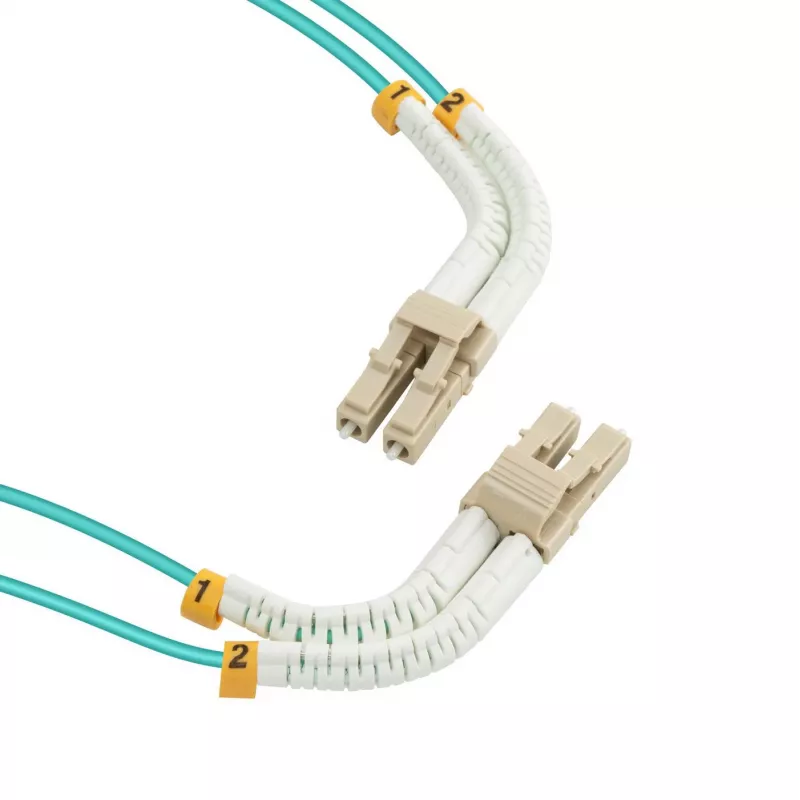

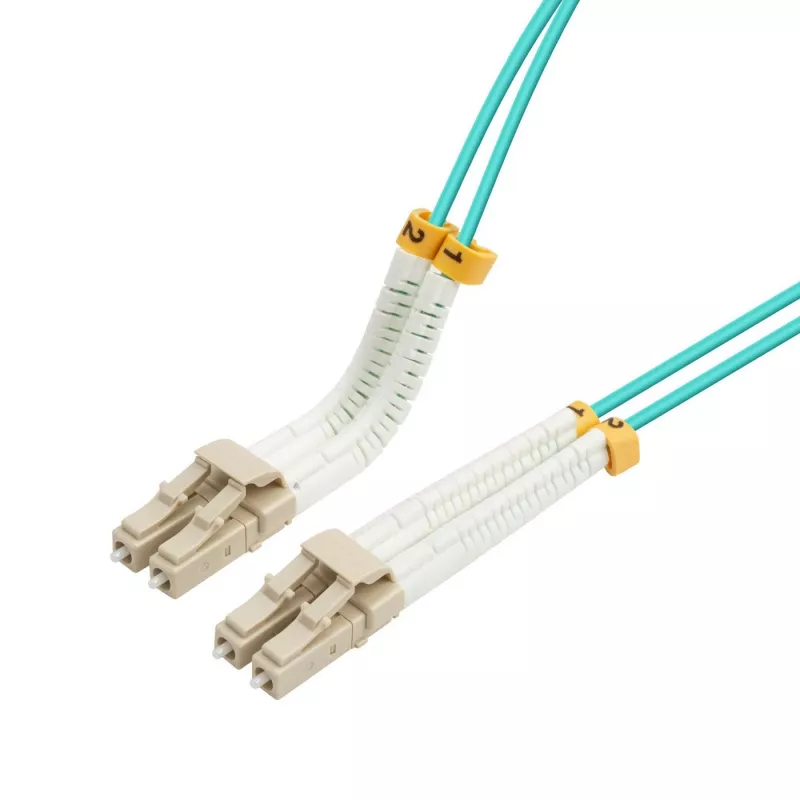

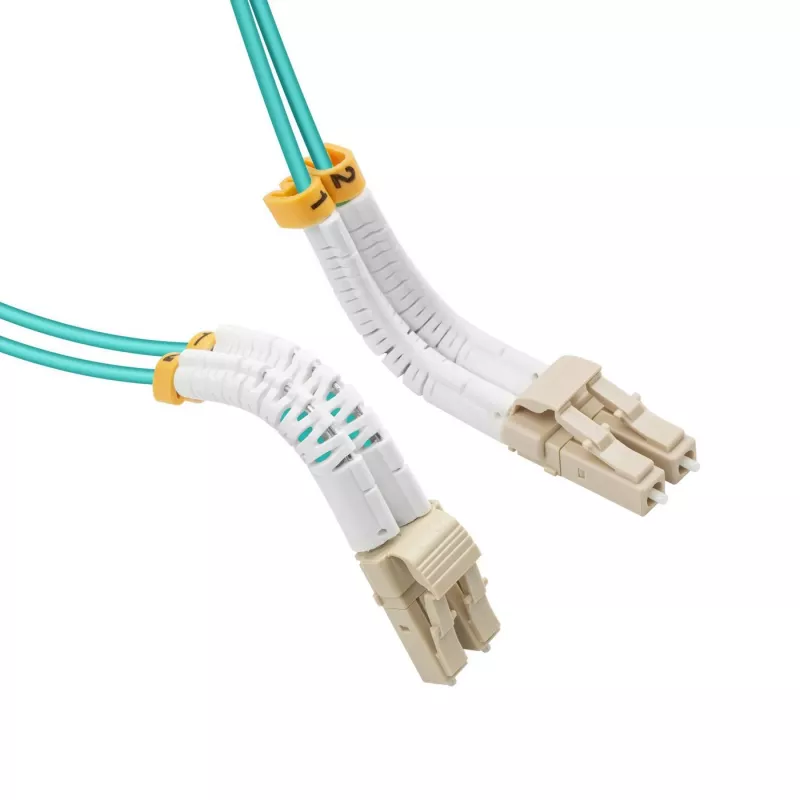

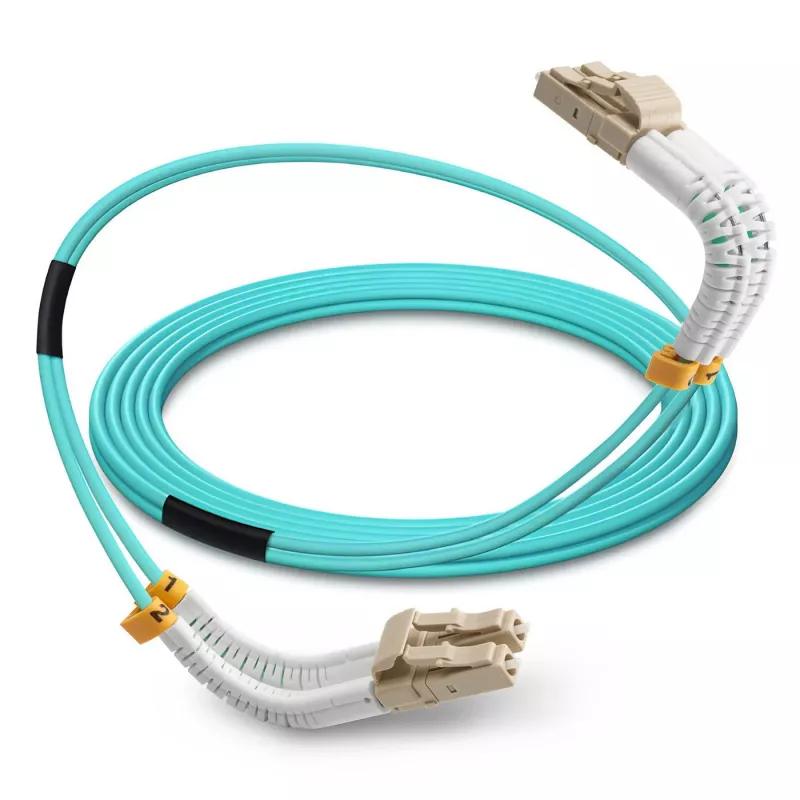

The Lanview LVO231301-FLEX is a 2 m fibre optic patch cable with LC to LC connectors and OM3 multimode fibre (50 µm core). Designed for full-duplex data transmission, the cable features an aqua outer jacket and a bendable boot constructed around a single stainless-steel wire that holds a chosen angle from straight to 90° while remaining manually adjustable.

Advantages

The bendable boot allows precise connector positioning in confined or high-density installations and can be moved or straightened at any time for connector access or disconnection. The internal stainless-steel wire maintains the set angle without tools, improving routing control and reducing stress on the connector. OM3 multimode fibre supports high-speed links over typical data centre and LAN distances.

Suitable for

• Data centre patch panels and high-density racks
• Server and switch connections in limited space
• Structured cabling in enterprise LANs
• Situations requiring controlled bend and connector alignment

Key specifications

• Cable type: LC/LC
• Fibre type: OM3 multimode, 50 µm core
• Length: 2 m
• Connector 1: LC
• Connector 2: LC
• Colour: Aqua
• Weight: 0.04 kg
• Manufacturer model: LVO231301-FLEX
• EAN: 5715063505878

How to use

Route the Lanview LVO231301-FLEX cable to the desired connection points and bend the boot by hand to set the required angle for optimal connector orientation. If needed, straighten the boot to disconnect or reposition the connector. Ensure connectors are clean before mating and avoid exceeding the minimum bend radius for the fibre during routing outside the adjustable boot area.

Recommendations

Clean connectors before installation, avoid sharp bends in the fibre outside the bendable boot area, and use proper cable management (ducts, trays, or panel guides) to maintain cable integrity and optical performance.
