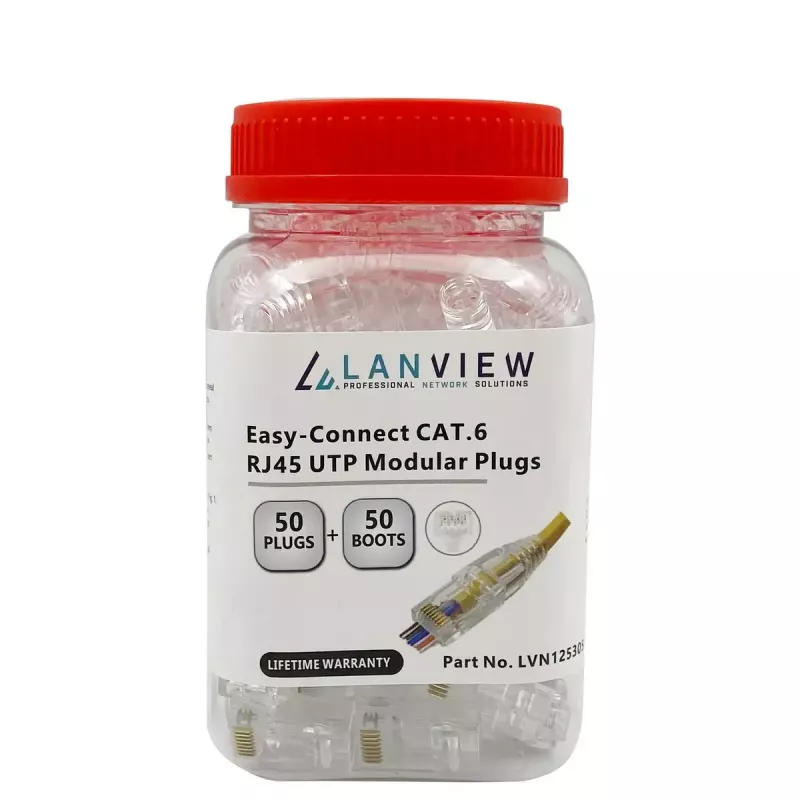

Lanview LVN125305 wire connector RJ45 Transparent

The Lanview LVN125305 RJ45 wire connector is a transparent male plug for terminating stranded and solid network cables. Its easy-connect termination principle lets conductors be pulled through the front of the connector, reducing the distance between pair twist and contact pins to optimize electrical performance. Each pack contains 50 connectors; single connector dimensions are approximately 13 mm wide, 22 mm deep and the pack weight is 156 g.

Advantages

The easy-connect design simplifies installation and reduces the time required to terminate cables. Transparent housing allows visual inspection of conductor placement. Optimized internal geometry minimizes untwist length between the cable pairs and the contacts, which helps maintain signal integrity.

Suitable for

• Termination of stranded and solid Ethernet cables (RJ45)
• Bulk installations and network patch panel assembly
• Field or workshop cable assembly where visual inspection is useful

Key specifications

• Brand: Lanview
• Model / MPN: LVN125305
• EAN: 5704174320524
• Connector type: RJ45 male
• Compatibility: stranded and solid cable
• Pack quantity: 50 pcs
• Single connector dimensions: approx. 13 mm (W) x 22 mm (D)
• Pack weight: 156 g

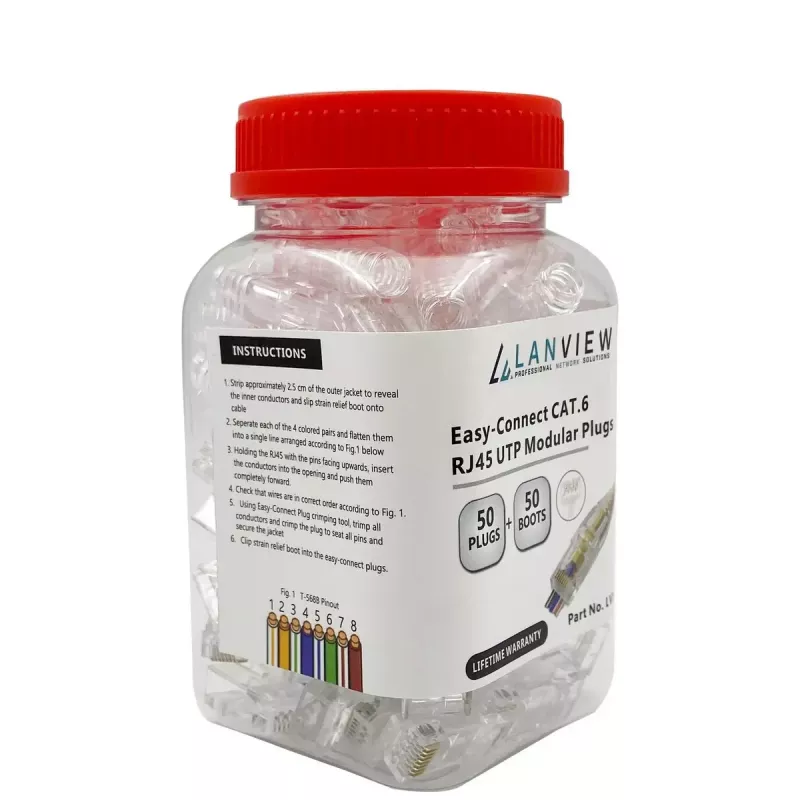

How to use

Prepare the cable by stripping the outer jacket to expose the twisted pairs. Arrange the conductors according to the required wiring standard and pull the conductors through the front of the connector until fully seated. Verify conductor order visually through the transparent housing, then crimp the connector with an appropriate RJ45 crimping tool to secure contacts and complete termination.

Recommendations

For best performance, avoid excessive untwisting of pairs and use a compatible crimp tool sized for RJ45 modular plugs. Inspect each termination through the transparent housing before installation into panels or patch cords.
