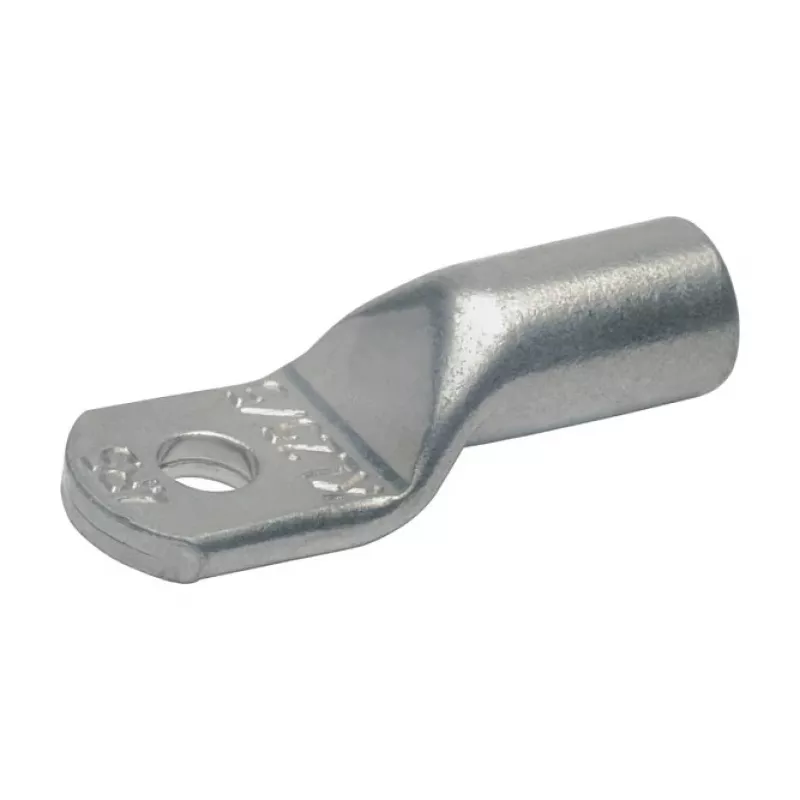

Klauke 5R8 Copper Crimp Cable Lug 35 mm² M8

Secure, reliable electrical connections demand precision-engineered terminations. The Klauke 5R8 copper crimp cable lug delivers exactly that, providing a robust ring terminal for 35 mm² stranded copper conductors with an M8 bolt hole. Crafted from high-conductivity electrolytic copper, it ensures minimal resistance and maximum current flow in power distribution, grounding, and industrial installations. Its standard-length barrel and inspection hole allow for correct cable insertion and visual verification, while compliance with DIN 46235 guarantees dimensional accuracy and performance. Whether you're equipping switchgear, motor connections, or heavy-duty machinery, this lug offers a durable, corrosion-free solution that meets stringent electrical standards.

Who is it for

This cable lug is ideal for electricians, panel builders, and maintenance technicians working on low-voltage power systems up to 1000 V. It suits applications requiring a reliable, high-current connection with an M8 stud, such as distribution boards, transformers, and industrial control cabinets. If you need a dependable crimp terminal for 35 mm² stranded copper conductors, this product is engineered for you.

Main features

• Material: Electrolytic copper (E-Cu) for excellent conductivity
• Cable cross-section: 35 mm²
• Bolt hole: M8 (8.4 mm diameter) for secure fastening
• Standard-length barrel with inspection hole for proper cable insertion
• Complies with DIN 46235 for reliable performance
• Bare copper surface, no corrosion protection, RoHS compliant
• Operating temperature range: -55°C to +150°C

Specifications

• Type: Crimp cable lug, ring terminal
• Connection method: Crimp
• Conductor compatibility: Stranded copper conductors
• Voltage rating: Up to 1000 V
• Series: Klauke 5R Standard Series
• Application: Power distribution, grounding, electrical installations

Tips

Use a proper crimping tool with the correct die size for 35 mm² to ensure a gas-tight connection. Always verify the cable is fully inserted through the inspection hole before crimping. For outdoor or corrosive environments, consider applying additional protection such as heat-shrink tubing or anti-corrosion compound, as this lug has a bare copper finish.
