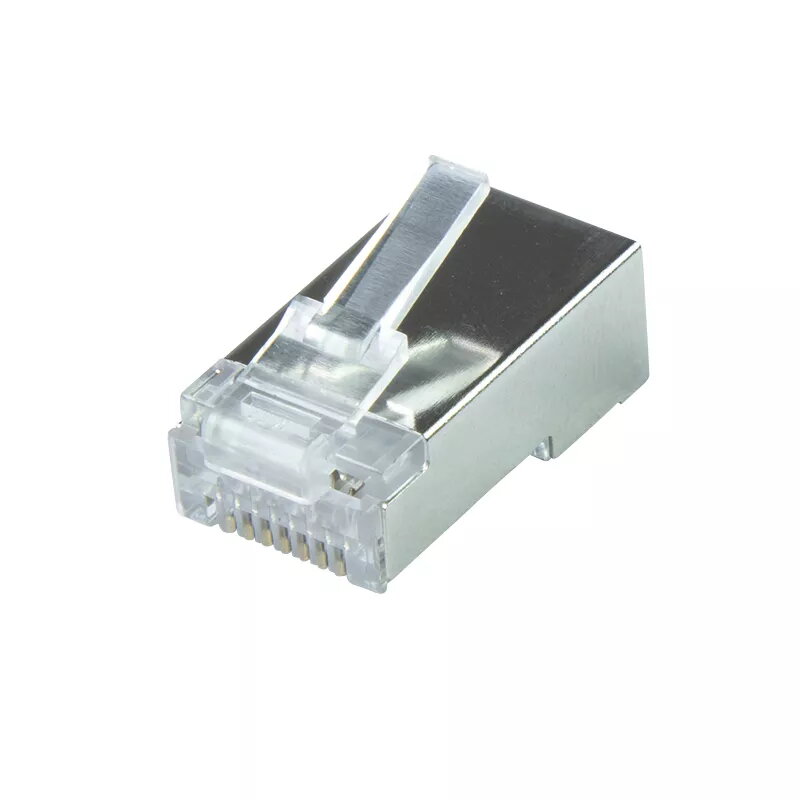

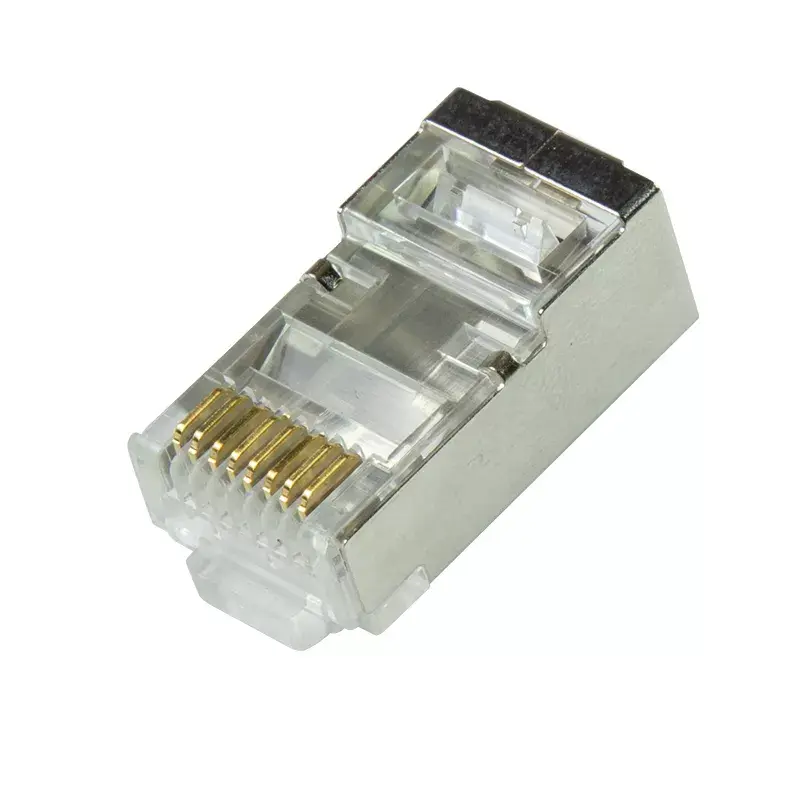

Wire Connector RJ-45 LogiLink MP0070

The LogiLink Wire Connector RJ-45 MP0070 is a Cat.6A RJ45 plug designed for 10 Gbps cabling and compatible with Cat.6, Cat.6A, Cat.7 and Cat.7A solid conductor cables. Finished in silver and supplied in packs of 50, each connector has an outer diameter of 6.5 mm and is intended to provide a reliable physical connection for high-speed Ethernet installations.

Advantages

The connector supports up to 10 Gbps transmission when used with appropriate Cat.6A or higher cabling and includes two wire guide plates to simplify conductor insertion. It is made for solid-core cables and features a silver finish. Assembly does not require a proprietary tool; standard RJ45 crimp tools can be used for termination.

Suitable for

• 10 Gbps Ethernet installations
• Cat.6, Cat.6A, Cat.7 and Cat.7A solid conductor cables
• Network patching and on-site cable terminations
• Users needing bulk packs of RJ-45 connectors (pack of 50)

Key specifications

• Brand: LOGILINK
• Model / MPN: MP0070
• Connector: RJ-45
• Category: Cat.6A (suitable for Cat.6/6A/7/7A)
• Data rate support: up to 10 Gbps
• Compatible conductor type: solid wire
• Finish / colour: Silver
• Pack quantity: 50 connectors
• Outer diameter: 6.5 mm
• EAN: 4052792049350

How to use

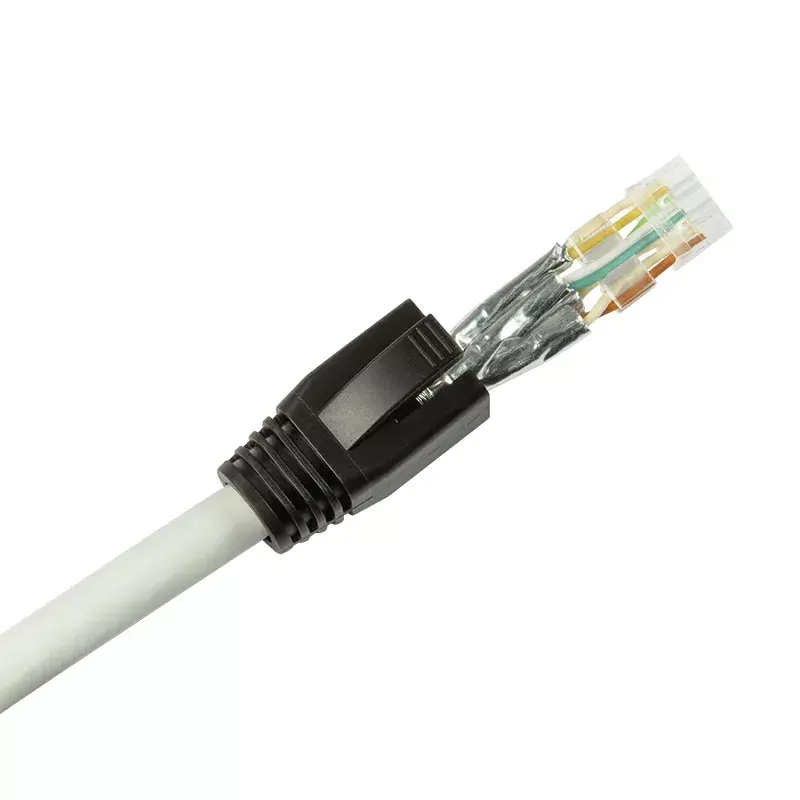

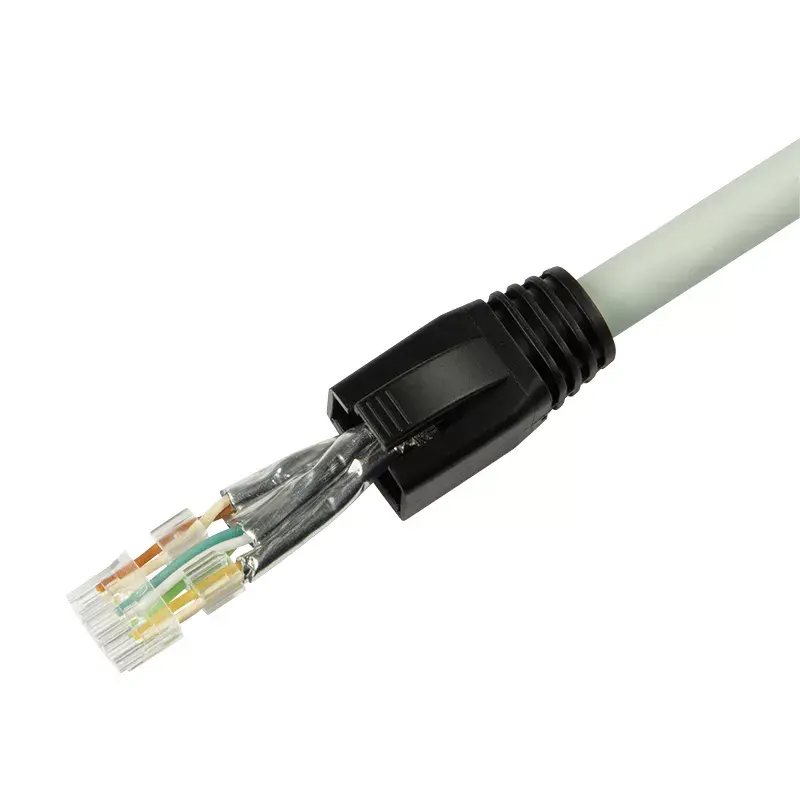

Strip the cable jacket and arrange the individual solid conductors according to the required wiring standard (T568A or T568B). Insert the conductors into the wire guide plates and push them into the RJ-45 connector until fully seated. Use a standard RJ45 crimp tool to terminate the connector onto the cable, ensuring proper contact and retention. Verify continuity and pair integrity with a cable tester after termination.

Recommendations

Use these connectors only with solid-core Cat.6 or higher cables and standard RJ45 crimping tools. Avoid using them with stranded cables. Test each terminated cable with a network cable tester to confirm correct wiring and signal integrity before deployment.
