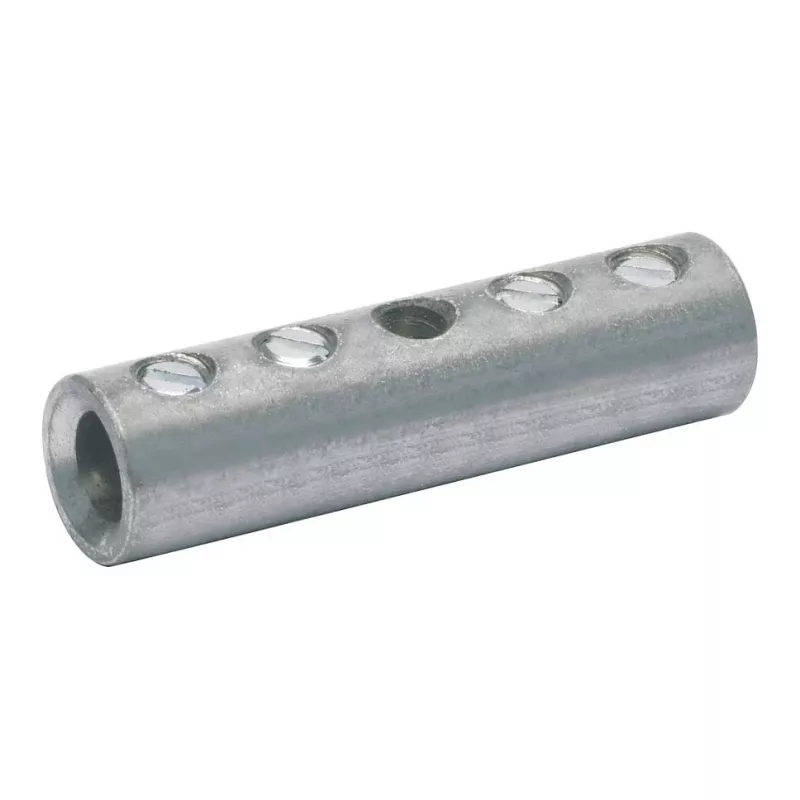

Klauke 553R Tubular Screw Connector, 16 mm², Solder Hole, Brass, Tinned

The Klauke 553R tubular screw connector stands apart from typical alternatives by combining a robust screw terminal with an integrated solder hole, enabling both mechanical and soldered connections in a single compact component. This dual-connection design is particularly valuable in applications where vibration resistance or additional electrical integrity is required, such as control cabinets and distribution boxes. Its 16 mm² conductor capacity and electro-tinned brass construction ensure reliable performance in demanding electrical installations.

Highlights

• Dual connection: screw terminal and solder hole for versatile wiring
• Supports fine-stranded and solid conductors up to 16 mm²
• Electro-tinned brass body for corrosion resistance and conductivity
• Rated for up to 750 V AC/DC and 76 A
• Compact inline design for easy integration

In daily use

Electricians and panel builders will appreciate the 553R's straightforward handling. The M5 screw provides a secure mechanical clamp, while the solder hole allows for a permanent bonded connection when needed. Its uninsulated silver-tinned surface is ideal for applications where space is limited and a reliable, low-resistance joint is essential. The connector is free-hanging, making it suitable for inline splicing or junction points.

Full specifications

• Brand: Gustav Klauke GmbH
• Model: 553R
• MPN: 553R
• EAN: 4012078063715
• Conductor cross-section: 16 mm²
• Connector type: Tubular screw connector
• Solder hole: Yes
• Material: Brass
• Surface treatment: Electro-tin
• Voltage rating: 750 V AC/DC
• Current rating: 76 A
• Screw thread size: M5
• Conductor compatibility: Fine-stranded and solid
• Insulation: Uninsulated
• Colour: Silver (tinned)
• Mounting: In-line / free-hanging
• Outer diameter: 10 mm
• Inner diameter: 5.5 mm

Final note

For reliable dual-connection performance in compact spaces, the Klauke 553R delivers both mechanical clamping and solder bonding in one durable, tinned brass connector.
