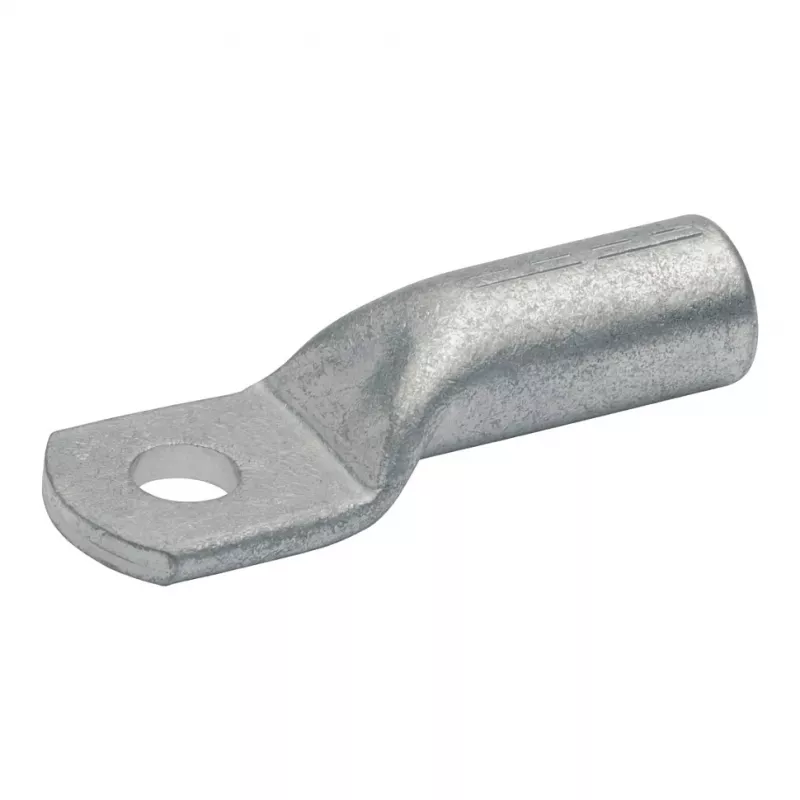

KLAU Standard Compression Cable Lug 107R12 70 mm² M12 Tin-Plated Copper

Standard compression cable lug for 70 mm² copper conductors with M12 bolt hole, crafted from electrolytic copper and tin-plated for reliable, low-resistance connections in power distribution and industrial applications.

Advantages

This cable lug features a seamless barrel design that ensures uniform crimping and excellent mechanical strength. The galvanic tin plating provides superior corrosion resistance and maintains conductivity over time, while the inspection hole allows visual confirmation of proper conductor insertion. Manufactured to DIN 46235, it guarantees consistent dimensions and performance.

Suitable for

• Power distribution systems
• Control cabinets and switchgear
• Industrial machinery and equipment
• Copper conductor terminations up to 1000 V

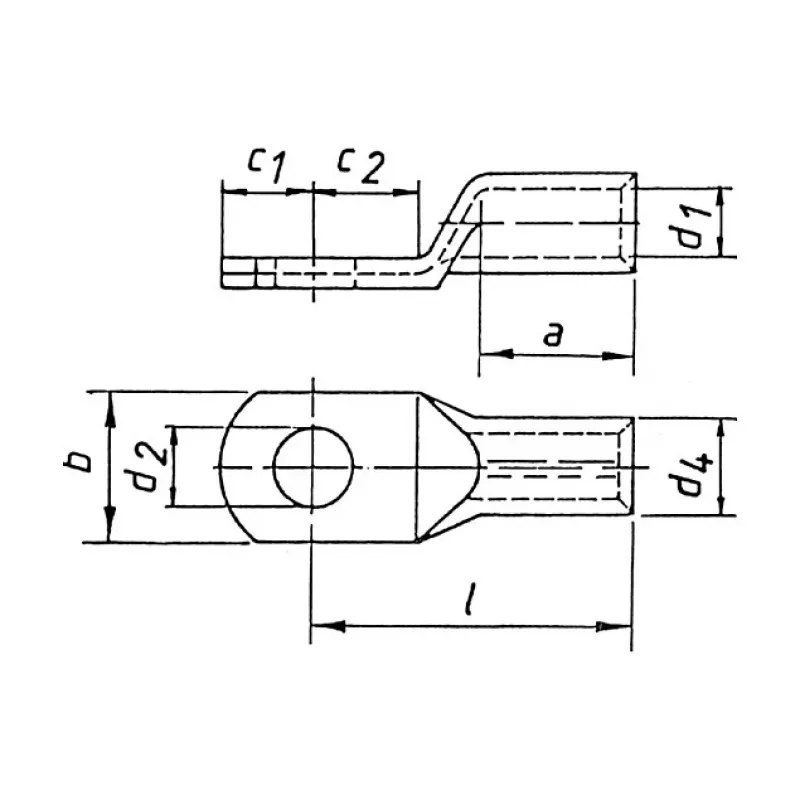

Key specifications

• Conductor cross-section: 70 mm²
• Bolt hole diameter: M12 (13 mm)
• Material: Electrolytic copper (E-Cu), tin-plated
• Overall length: 58 mm
• Palm width: 22 mm
• Barrel outer diameter: 16.5 mm
• Palm thickness: 3.5 mm
• Operating temperature range: -50°C to +120°C
• Standard: DIN 46235

Recommendations

For best results, use a hexagonal crimping die matched to the lug size and verify conductor insertion through the inspection hole before crimping. Ensure the contact surface is clean and properly torqued to the bolt specification.
