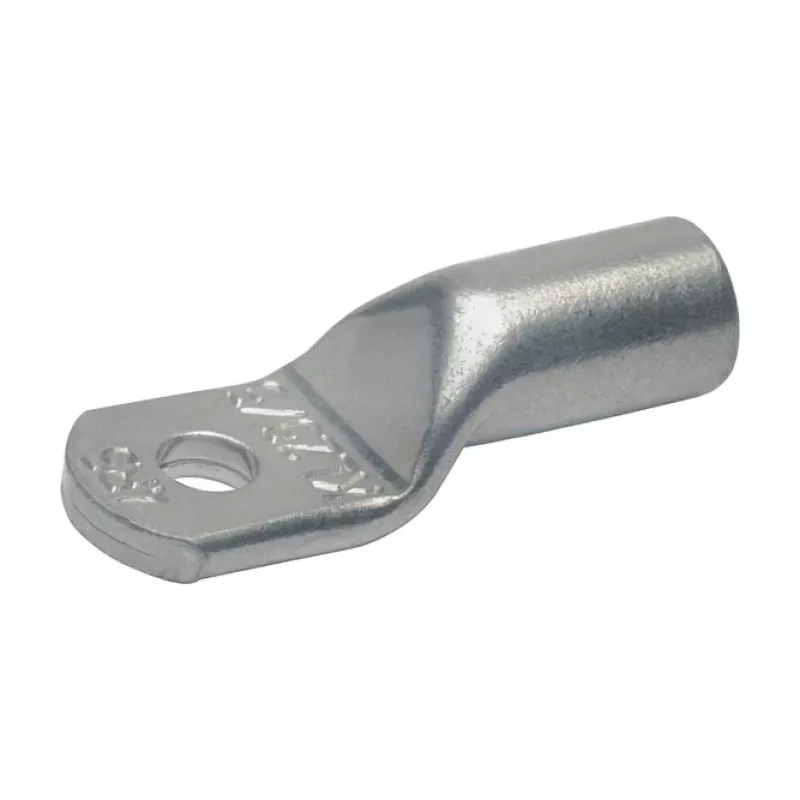

KLAU Copper Tube Cable Lug 12R10 240 mm² M10, Tin-Plated, DIN 46235

High-current connections in industrial and energy applications demand uncompromising reliability. The KLAU Copper Tube Cable Lug 12R10 delivers a secure, low-resistance termination for 240 mm² copper conductors and M10 bolts. Its tin-plated electrolytic copper construction resists corrosion, while the hexagonal crimp profile ensures a gas-tight, vibration-proof connection. An inspection hole allows visual confirmation of full conductor insertion, and compliance with DIN 46235 guarantees dimensional accuracy and performance. Whether for power distribution, switchgear, motor connections, or grounding systems, this lug provides the durability and conductivity required in demanding environments.

Who is it for

Electricians, panel builders, and maintenance technicians working on power distribution, switchgear, motor connections, and grounding systems will find this cable lug indispensable. It accommodates solid, stranded, and fine-stranded copper conductors up to 240 mm² (classes 1, 2, 5, and 6), making it suitable for both new installations and retrofits. Its wide operating temperature range and RoHS compliance also make it appropriate for environmentally sensitive projects.

Main features

• High-conductivity electrolytic copper (E-Cu) with tin plating for excellent corrosion resistance
• Hexagonal crimp profile ensures uniform compression and optimal electrical contact
• Inspection hole for easy verification of conductor insertion depth
• Conforms to DIN 46235 for dimensional and performance

Specifications

• Lug Type: Tube Cable Lug
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Conductor Cross-Section: 240 mm²
• Bolt Hole Size: M10
• Bolt Hole Diameter: 10.5 mm
• Standard Conformance: DIN 46235
• Crimp Type: Hexagonal Crimp
• Conductor Material Compatibility: Copper
• Conductor Type Compatibility: Fine-stranded, Multi-stranded, Solid (Class 1, 2, 5, 6)
• Inspection Hole: Yes
• Operating Temperature Range: -55°C to +150°C
• Voltage Rating (Max): Up to 1000 V (uninsulated)
• Overall Length: 90 mm
• Palm Width: 32 mm
• Tube Outer Diameter: 22 mm
• RoHS Compliant: Yes

Tips

Always use the correct crimping tool with hexagonal dies to achieve a gas-tight connection. Verify full conductor insertion through the inspection hole before crimping. For outdoor or corrosive environments, consider additional protection such as heat-shrink tubing over the crimped area.
