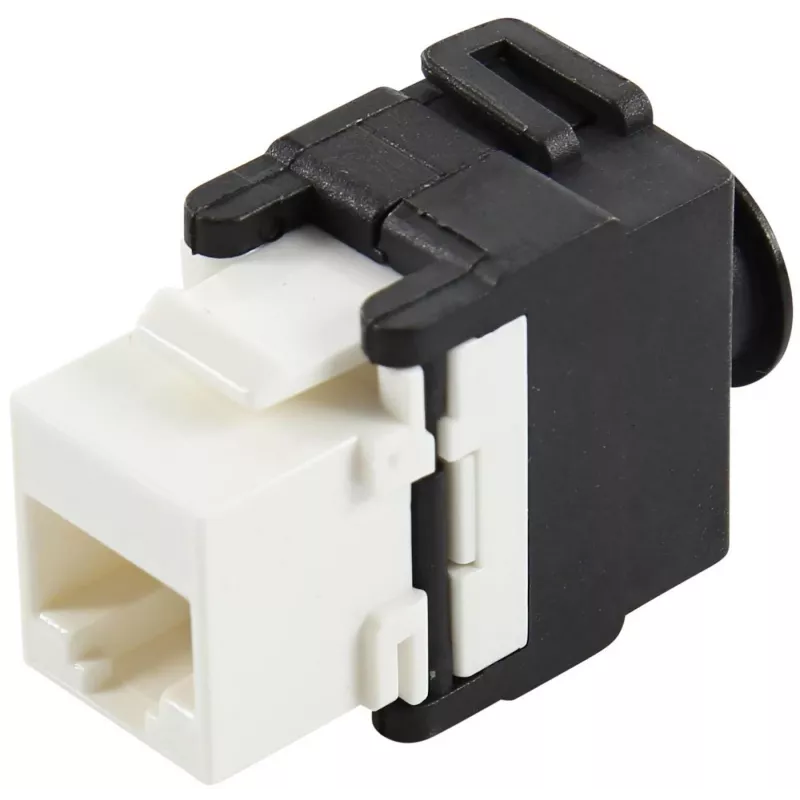

Keystone module LOGON LKS310, flat white, RJ-45 connector

LOGON LKS310 keystone module is a flat, white faceplate insert with an RJ-45 connector designed for single-port Ethernet connections in keystone-compatible wall plates, patch panels and modules. The module supports Category 5E structured cabling standards and is intended for use in offices, data closets and residential networks where a simple, compact unshielded RJ-45 outlet is required.

Advantages

The module meets TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements as well as relevant international cabling standards including ISO/IEC 11801 and CENELEC EN50173. It is compliant with UL 1863 and provides reliable electrical characteristics such as low contact resistance, high insulation resistance and defined dielectric withstand voltage. The flat, white plastic design offers a discreet appearance and easy installation in standard keystone openings.

Suitable for

• Office workstation network outlets
• Patch panels and keystone patch bays
• Residential Ethernet wall ports
• Data closet and communications cabinet terminations

Key specifications

• Category: Cat5e (meets TIA/EIA-568-A and -B Category 5E)
• Connector type: RJ-45 female, unshielded
• Orientation: flat / 180° angle
• Material: plastic housing
• Color: white
• Electrical ratings: current 1.5 A max; voltage 150 V
• Contact resistance: 20 mΩ
• Insulation resistance: 500 MΩ
• Dielectric withstand: 1000 V AC RMS, 60 Hz, 1 min

How to use

Insert the LOGON LKS310 keystone module into a compatible keystone opening on a wall plate or patch panel until it snaps into place. Terminate the network cable to the RJ-45 inlet following standard Cat5e wiring schemes (TIA/EIA-568-A or TIA/EIA-568-B) and verify pair continuity and polarity with appropriate testing equipment. Ensure the module is seated firmly and that cable management prevents excessive strain on the connector.

Recommendations

Use the module in environments that require Cat5e performance and unshielded installations. Test terminations after installation and avoid exposing the plastic housing to prolonged direct sunlight or chemical solvents. For shielded cabling systems, select a shielded keystone module instead.
