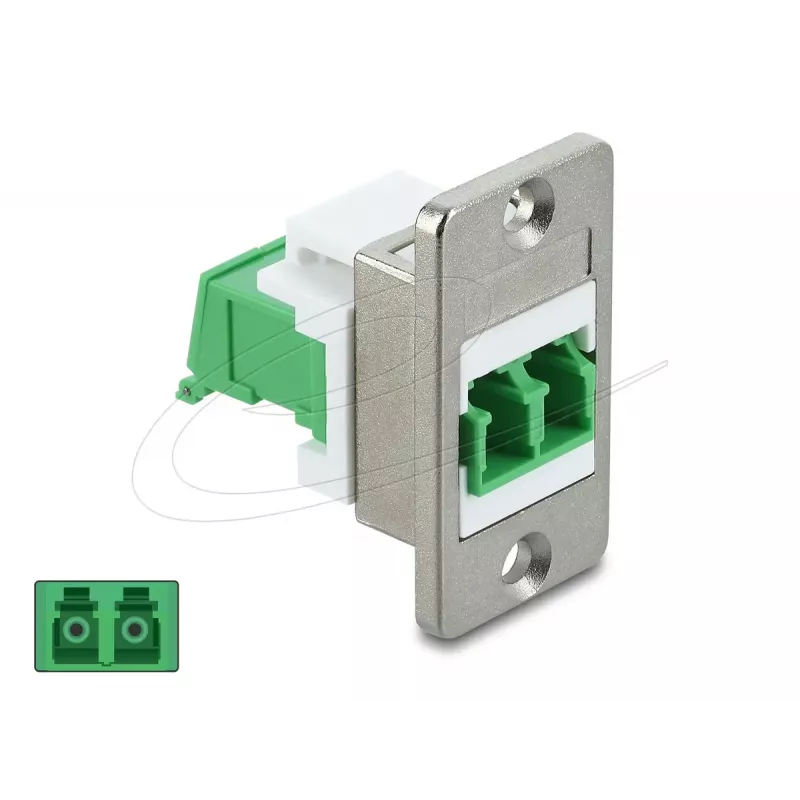

Keystone module DELOCK 91088, flat construction

This Delock fibre optic panel mount is designed for installation in a housing to provide a reliable connection point for fibre optic cables. It offers a compact interface for routing and securing optical fibres through a panel.

Advantages

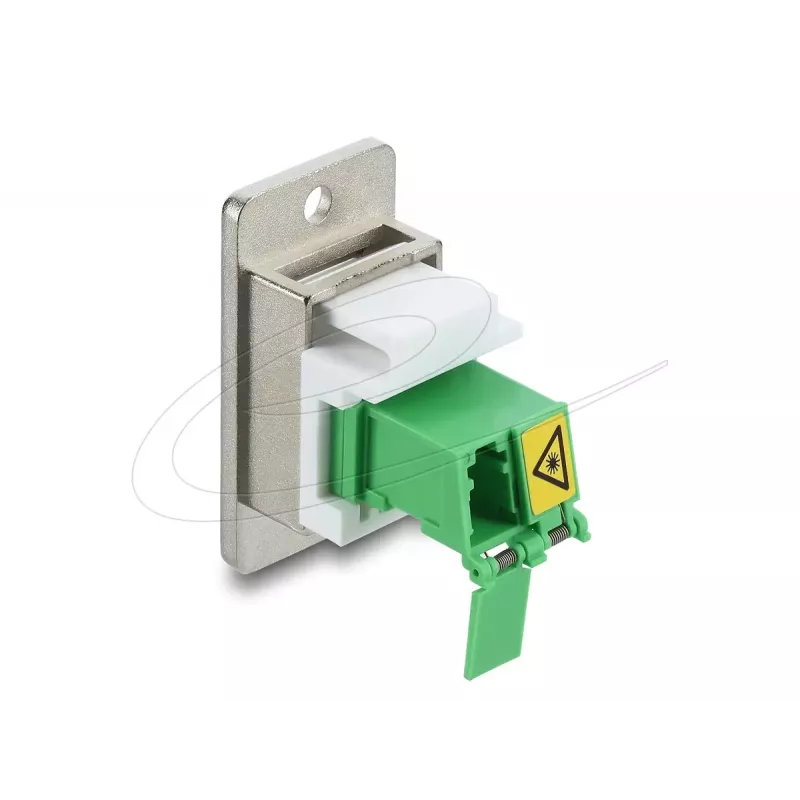

The integrated flip on the coupling protects against laser radiation while allowing easy access for connecting and disconnecting fibre optic cables. The design is suitable for panel installation and helps maintain a clean, organised fibre connection point.

Key specifications

How to use

Install the panel mount into the appropriate cutout in the housing, secure it according to the device’s mounting method, and connect the fibre optic cable to the coupling. Use the flip cover to protect the connector when not in use and flip it open for connection or disconnection.

Recommendations

Ensure proper alignment when inserting fibre connectors and keep the flip cover closed when the connector is not in use to maintain protection against laser radiation and dust.
