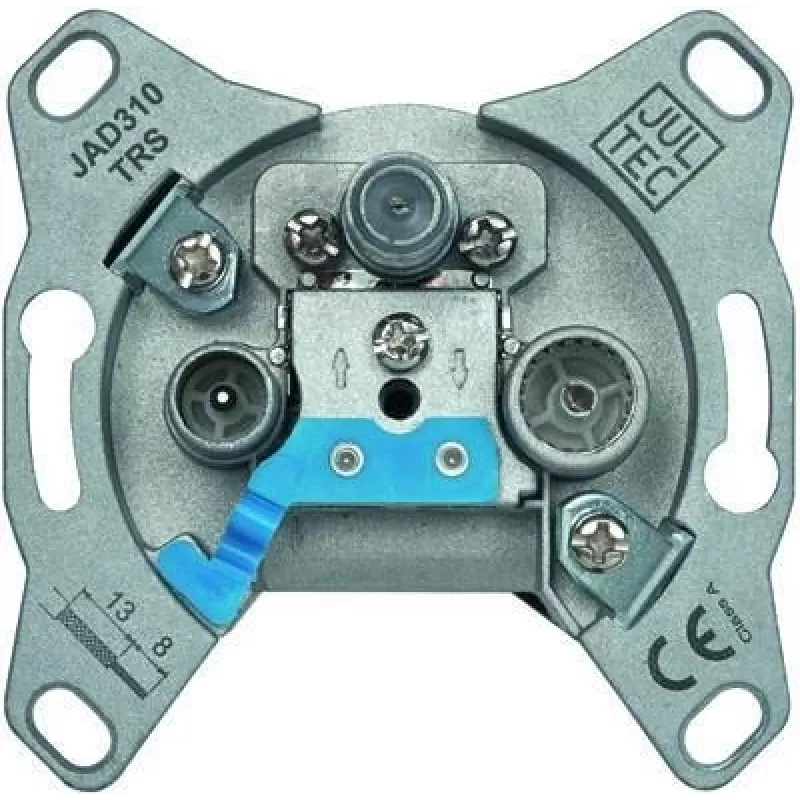

Jultec JAD310TRS Through Antenna Socket 3-Loch 10dB Diode-Decoupled

The Jultec JAD310TRS is a high-quality through antenna socket designed for modern TV, radio, and satellite distribution systems. With three outputs and diode-decoupled SAT path, it ensures reliable signal transmission and DC pass capability for LNB powering. Ideal for flush-mounted installations, this socket meets Class A shielding requirements and supports return path frequencies.

Advantages

Diode decoupling prevents interference between connected devices, while the 10 dB tap loss ensures consistent signal levels. The through-loss design allows daisy-chaining multiple sockets without significant signal degradation.

Suitable for

• Residential and commercial TV/radio/SAT distribution networks
• Flush-mounted installations in walls
• Systems requiring DC pass via SAT output

Key specifications

• Product Type: Through Antenna Socket
• Number of Outputs: 3 (TV, Radio, SAT)
• Tap Loss: 10 dB (TV/Radio/SAT)
• Through Loss: 1.5 dB (TV/Radio), 2.0 dB (SAT)
• Frequency Range: 47-862 MHz (TV), 87.5-108 MHz (Radio), 950-2400 MHz (SAT)
• Impedance: 75 Ohm
• Shielding Class: Class A (EN 50083-2)
• Mounting Type: Flush-mounted
• DC Pass: Yes, via SAT output (diode-decoupled)

Recommendations

For optimal performance, use with high-quality coaxial cables and ensure proper termination of unused outputs. The JAD310TRS is compatible with standard 75 Ohm systems.
