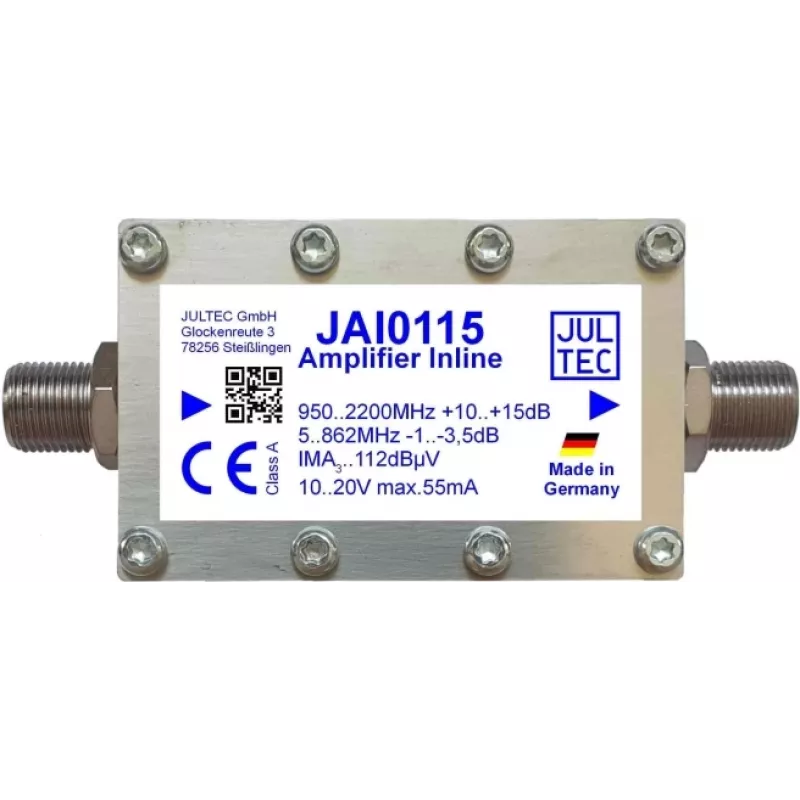

JULTEC SAT Inline Amplifier JAI0115 15dB Remote Powered

The JULTEC SAT Inline Amplifier JAI0115 is a high-performance 15 dB amplifier designed for satellite TV distribution systems. It compensates for signal losses in long cable runs, ensuring reliable reception of DVB-S, DVB-S2, and Unicable signals. The amplifier is remotely powered via the coaxial cable, simplifying installation by eliminating the need for a local power supply.

Advantages

Compact inline design for easy integration into existing cabling. Remote power feeding reduces installation complexity. Robust die-cast zinc housing with shielding class A for excellent interference protection. Supports DC pass for LNB/multiswitch power, maintaining compatibility with standard satellite setups.

Suitable for

• Satellite TV installations requiring signal amplification
• DVB-S, DVB-S2, and Unicable systems
• Long cable runs where signal loss is a concern

Key specifications

• Gain: 15 dB
• Frequency range: 950 - 2150 MHz
• Impedance: 75 Ohm
• Connectors: F-type (input/output)
• Power supply: Remote via coaxial cable (10-20 V DC)
• Current consumption: 25 mA max
• Noise figure: < 5 dB
• Return loss: > 12 dB
• Operating temperature: -20 to +50 °C
• Housing material: Die-cast zinc

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper shielding. This amplifier is ideal for both residential and commercial satellite installations.
