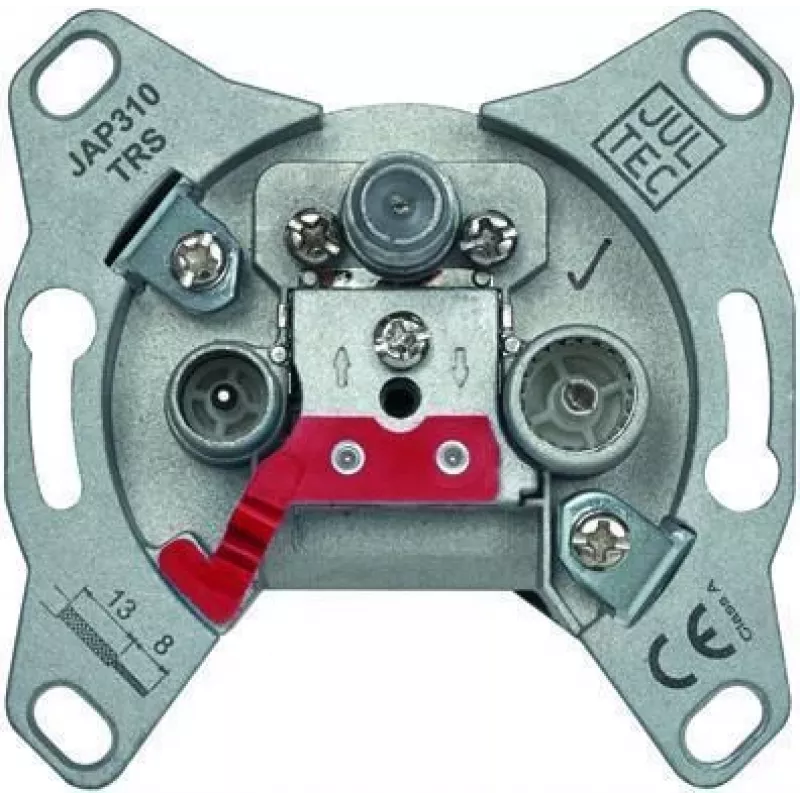

JULTEC JAP310TSD Loop-through Antenna Socket 10dB, Programmable, 3 Outputs (TV/Radio/SAT)

The JULTEC JAP310TSD is a high-quality loop-through antenna socket designed for professional TV, radio, and SAT signal distribution. With 10 dB through loss and programmable return path attenuation, it ensures optimal signal quality for modern multimedia installations. The flush-mount design and Class A shielding guarantee reliable performance and interference protection.

Advantages

Programmable return path attenuation allows flexible adjustment to network requirements. The 10 dB through loss compensates for signal losses in long cable runs, maintaining strong signal levels. Three dedicated outputs for TV, radio, and SAT simplify connection of multiple devices without additional splitters.

Suitable for

• Residential and commercial antenna systems
• Single or multi-dwelling unit installations
• Integration with satellite and terrestrial TV systems
• Professional AV distribution networks

Key specifications

• Socket type: Loop-through (Durchgangsdose)
• Number of outputs: 3 (TV, Radio, SAT)
• Frequency range TV/Radio: 5–862 MHz
• Frequency range SAT: 950–2400 MHz
• Through loss TV/Radio: 10 dB
• Through loss SAT: 10 dB
• Output attenuation TV/Radio/SAT: 10 dB each
• Return path frequency: 5–65 MHz
• DC passage for SAT: Yes
• Shielding class: Class A
• Impedance: 75 Ohm
• Installation type: Flush-mount
• Max. output level TV/Radio: 100 dBµV
• Max. output level SAT: 100 dBµV
• Isolation between outputs: >20 dB
• Return loss: >10 dB

Recommendations

For best performance, use high-quality coaxial cables and ensure proper grounding. The programmable feature allows fine-tuning of return path attenuation to match network topology. Suitable for use with JULTEC compatible frames and accessories.
