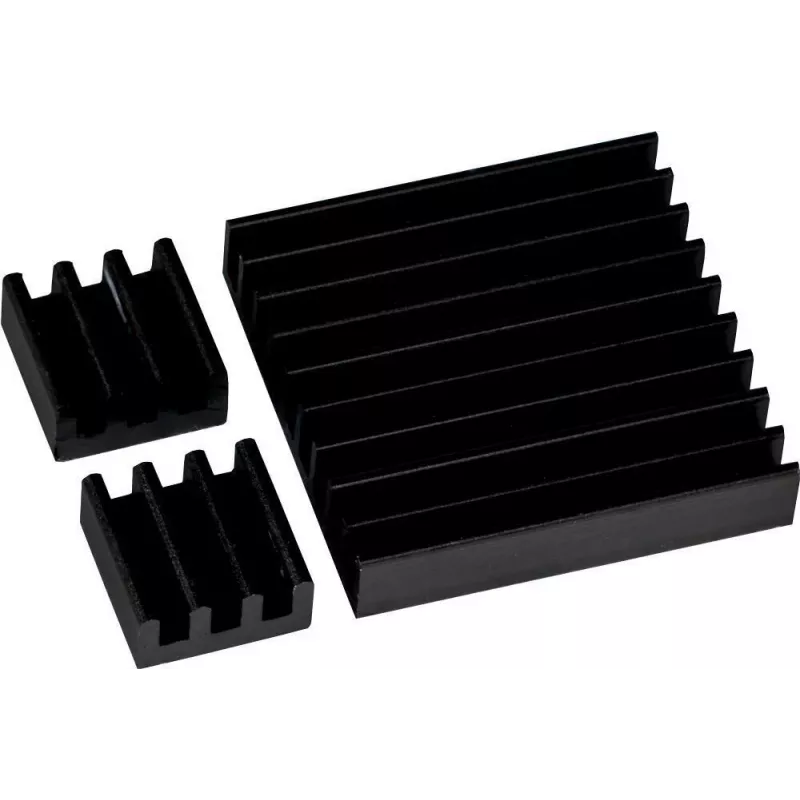

Joy-IT RB-Heatsink-B Heatsink Set for Single Board Computers

The Joy-IT RB-Heatsink-B is a set of three aluminum heatsinks designed to improve heat dissipation for single board computers like the Raspberry Pi 3B, 3B+, and 4B. This passive cooling solution helps maintain optimal operating temperatures for the CPU, RAM, and LAN chip, ensuring stable performance even under load.

Advantages

Effective heat dissipation extends the lifespan of your single board computer. The self-adhesive thermal tape allows for easy, tool-free installation. The low-profile design ensures compatibility with most cases.

Suitable for

• Raspberry Pi 3B
• Raspberry Pi 3B+
• Raspberry Pi 4B

Key specifications

• Product Type: Heatsink Set
• Number of Heatsinks: 3
• Heatsink 1 (CPU) Material: Aluminum
• Heatsink 1 (CPU) Dimensions: 14 x 14 x 6 mm (L x W x H)
• Heatsink 2 (RAM) Material: Aluminum
• Heatsink 2 (RAM) Dimensions: 9 x 9 x 5 mm (L x W x H)
• Heatsink 3 (LAN) Material: Aluminum
• Heatsink 3 (LAN) Dimensions: 7 x 7 x 5 mm (L x W x H)
• Mounting Type: Self-adhesive thermal tape
• Cooling Method: Passive
• Color: Silver (Natural Aluminum)
• Application: CPU, RAM, LAN chip
• Installation: Easy, peel-and-stick
• Thermal Performance: Improves heat dissipation
• Corrosion Resistance: Yes
• Low Profile Design: Yes

Recommendations

For best results, ensure the surfaces are clean and dry before applying the heatsinks. This set is ideal for users looking to enhance the thermal management of their Raspberry Pi without active cooling.
