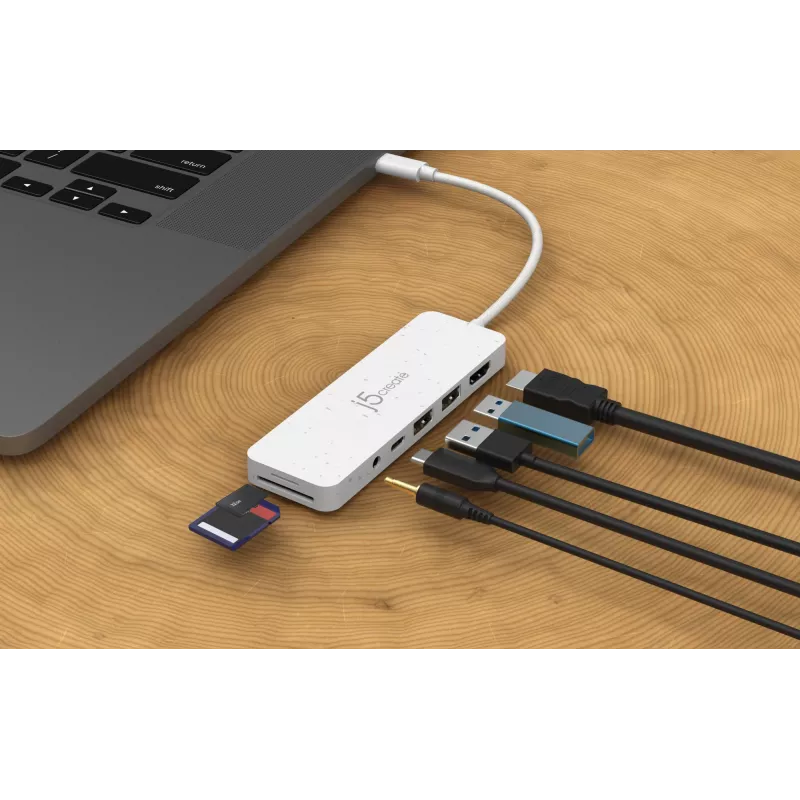

j5create JCD373EW - USB-C® Multi-Port Hub with Power Delivery

The j5create JCD373EW USB-C Multi-Port Hub with Power Delivery expands connectivity for laptops and computers by combining video output, high-speed data ports, card readers and charging in a compact, pocket-sized adapter. It includes an HDMI port for up to 4K UHD video output, two USB 3.2 Type-A ports for peripherals and fast data transfer up to 5 Gbps, an SD and microSD card reader, a combined audio/mic jack, and a USB-C Power Delivery 3.0 charging port supporting up to 100W when used with a compatible USB-C power adapter.

Advantages

This USB-C multi-port hub provides a single compact solution to connect external displays, peripheral devices and memory cards while delivering up to 100W charging through USB-C Power Delivery 3.0. The two USB 3.2 Type-A ports support high-speed data transfer up to 5 Gbps for quick file exchanges. The built-in HDMI port enables mirroring or extending your screen to HDTVs, monitors or projectors at 4K UHD resolution. Integrated SD and microSD card readers and an audio/mic combo jack increase workflow convenience without additional adapters.

Suitable for

• Expanding connectivity for laptops with a USB-C port
• Connecting external displays (HDMI) for presentations or extended desktop
• Attaching USB peripherals such as keyboard, mouse or external storage
• Reading SD and microSD memory cards from cameras and mobile devices
• Charging laptops or devices using USB-C Power Delivery up to 100W

Key specifications

• Model: j5create JCD373EW (MPN: JCD373EW-N, EAN: 4712795087536)
• Ports: 1 × HDMI (4K UHD output), 2 × USB 3.2 Type-A (up to 5 Gbps), 1 × USB-C PD 3.0 (up to 100W), SD and microSD card slots, 1 × audio/mic combo jack
• Data transfer rate: up to 5 Gbps (USB 3.2)
• Power Delivery: USB-C PD 3.0, up to 100W (requires compatible USB-C power adapter)
• Form factor: pocket-sized multi-port hub

How to use

Connect the hub’s integrated USB-C plug to your computer’s USB-C port. Use the HDMI port to mirror or extend your display by connecting an HDMI cable to an HDTV, monitor, or projector. Plug USB devices such as a keyboard, mouse or external drive into the USB 3.2 Type-A ports for data transfer and peripheral connectivity. Insert SD or microSD cards into the respective card slots for file access. To charge a laptop or other device, connect a compatible USB-C power adapter to the hub’s USB-C PD port; the hub supports up to 100W charging when the adapter and host device accept that power level.

Recommendations

For reliable 4K video output and maximum charging, use high-quality HDMI and USB-C cables and a USB-C power adapter rated for the required wattage. Ensure your host device supports video output over USB-C and the appropriate Power Delivery profile for full functionality.
