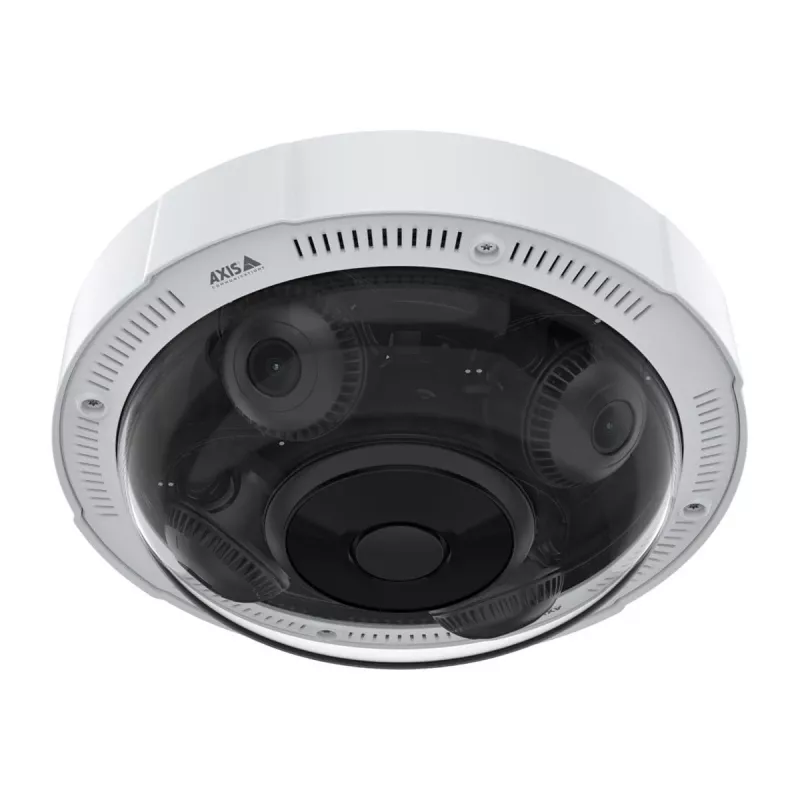

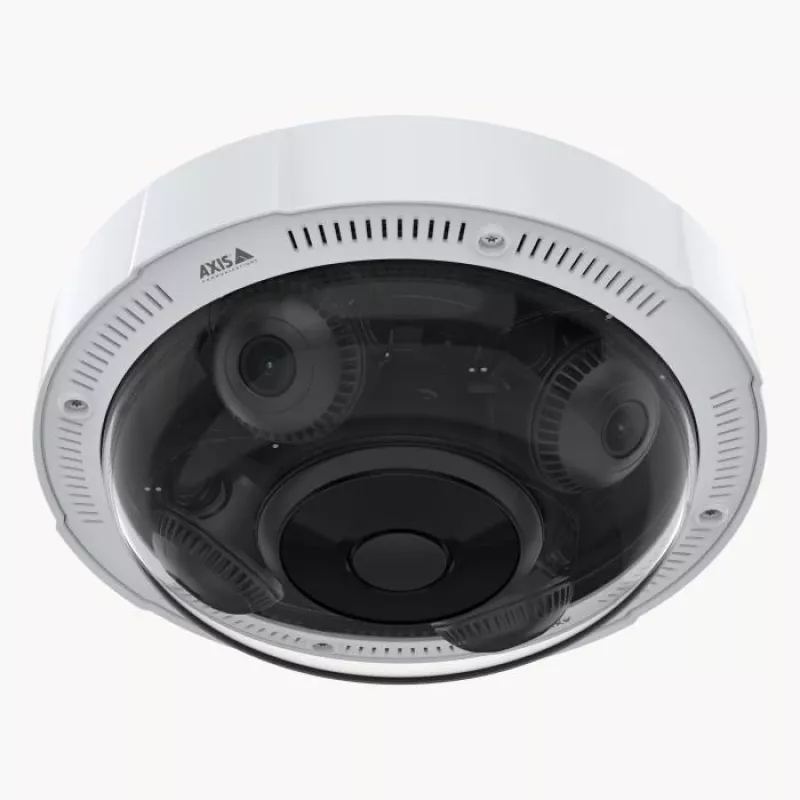

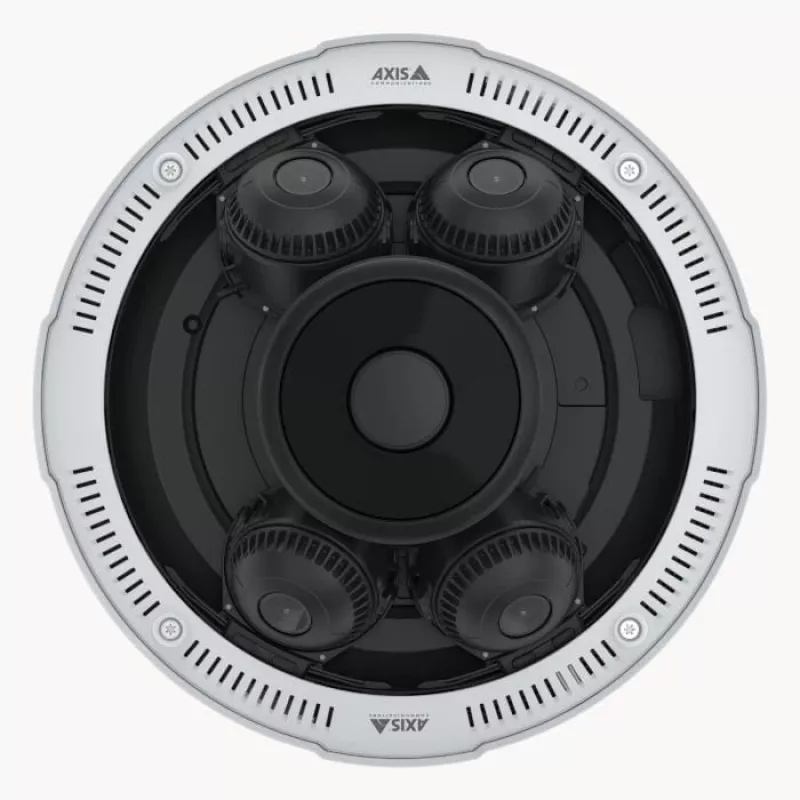

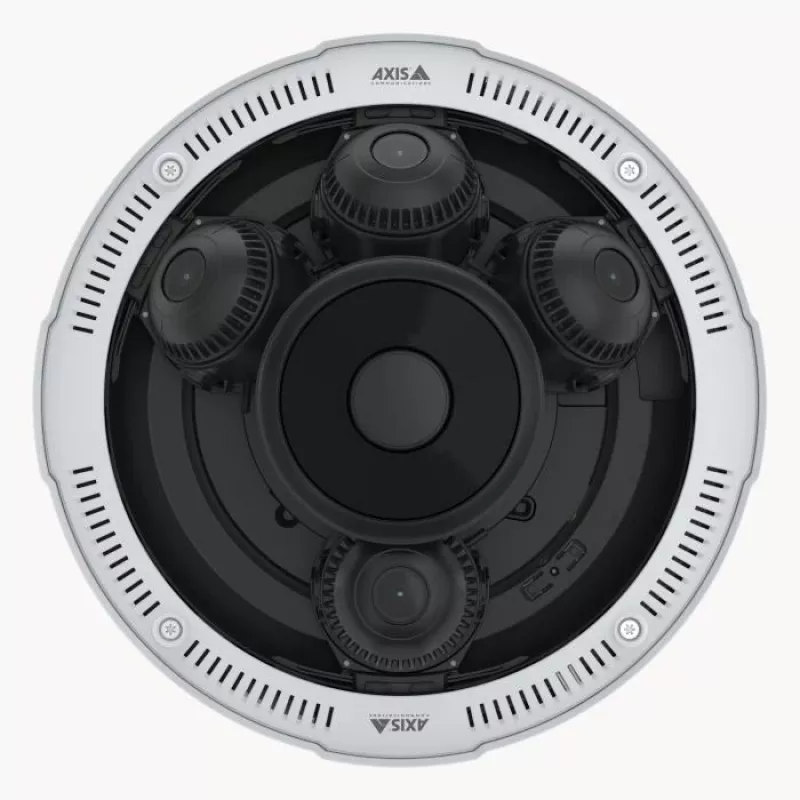

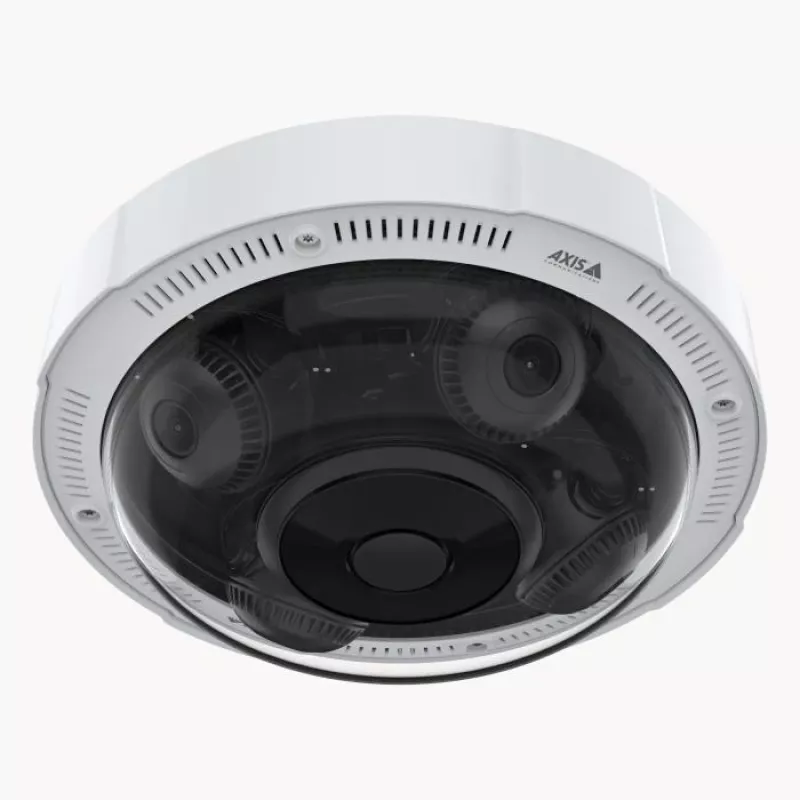

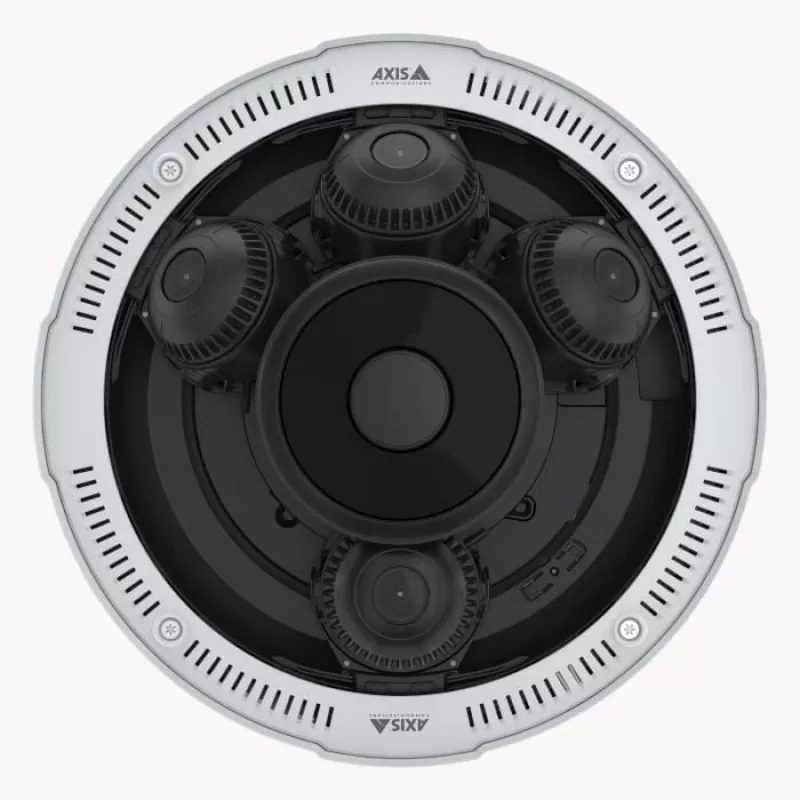

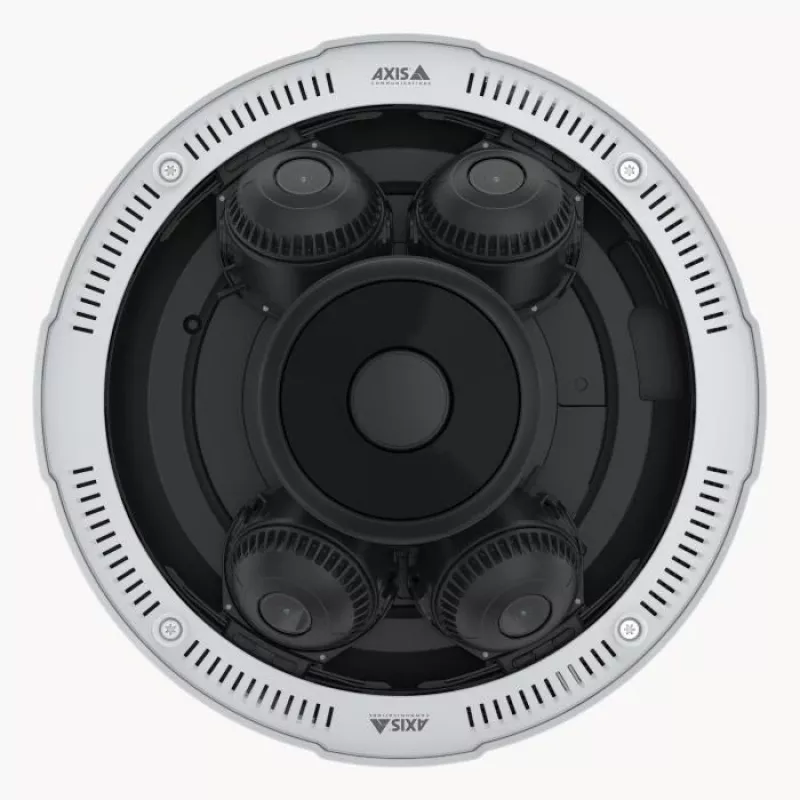

IP security camera Axis P3737-PLE Dome 2688 x 1944 pixels

AXIS P3737-PLE is a multidirectional surveillance camera designed for wide-area monitoring. The unit provides four independently controllable 5 MP channels at 20 fps, day/night functionality, removable IR cut filter and 360° controllable IR illumination to deliver clear, reflection-free images in varying light conditions. Forensic WDR improves image clarity in scenes with both dark and bright areas, while AXIS Object Analytics and metadata streams enable detection and classification of people and vehicles for counting and alarm triggering.

Advantages

This compact camera offers flexible mounting options including recessed, ceiling and corner installations to provide up to 360° or 270° coverage. All four varifocal heads can be moved, rotated and individually controlled to optimize fields of view and allow combinations of wide and zoomed-in perspectives. The enclosure is tamper-resistant and includes an integrated IP66/IP67-rated weather shield for reliable outdoor use. Energy-efficient operation, remote zoom and focus, and Axis Zipstream reduce operating costs, bandwidth and storage needs. Axis Edge Vault provides hardware-based device security.

Key specifications

• Four channels, each 5 MP at 20 fps
• Day/night functionality with removable IR cut filter
• 360° IR illumination with individually controllable LEDs
• Forensic WDR
• AXIS Object Analytics and metadata streams for people/vehicle detection and counting
• ARTPEC-8 with Deep Learning Processing Unit (DLPU)
• ACAP version 4 support for edge applications
• Axis Zipstream for reduced bandwidth and storage
• Axis Edge Vault hardware-based cybersecurity
• Tamper-resistant casing with integrated IP66/IP67 weather shield
• Multiple mounting options: recessed, ceiling, wall, corner

How to use

Install the AXIS P3737-PLE using the preferred mounting method for the surveillance area: recessed for discreet installation, ceiling for full overhead coverage, or corner/ wall mounting for extended horizontal coverage. Position and rotate each varifocal head to achieve the desired combination of wide and zoomed views; heads can be grouped or positioned close together to capture a shared target with different fields of view. Configure day/night settings, IR illumination and Forensic WDR in the camera interface. Enable AXIS Object Analytics and metadata streams on required channels to detect, classify and count people or vehicles and set thresholds to trigger alerts.

Recommendations

For optimal results, plan camera placement to minimize obstructions and reflections, ensure reliable network and power connections, and regularly update firmware. Use Axis Zipstream and tailored edge analytics to reduce storage and improve detection accuracy while maintaining secure access with Axis Edge Vault.
