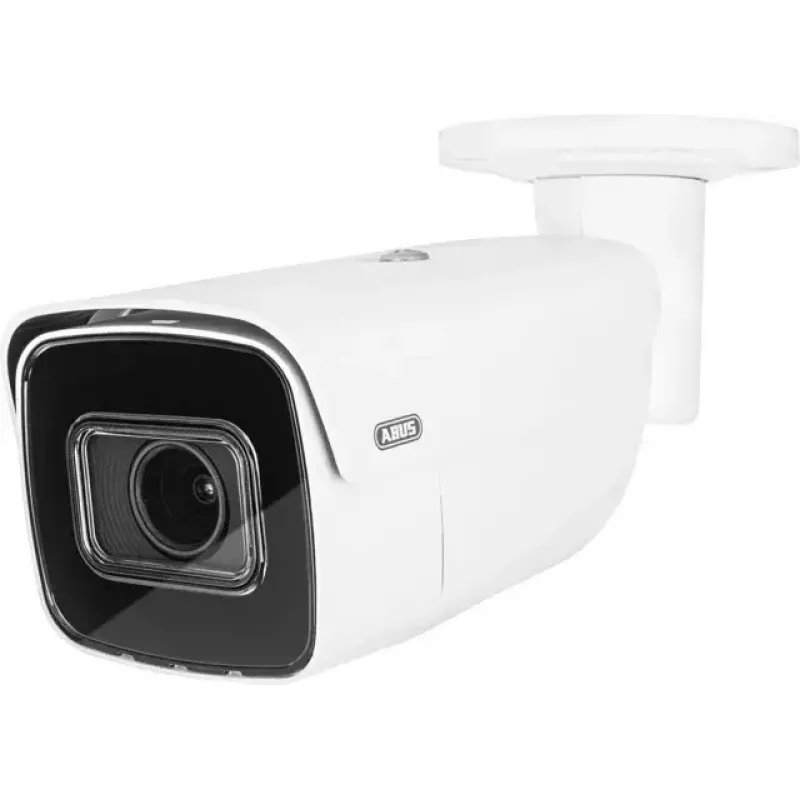

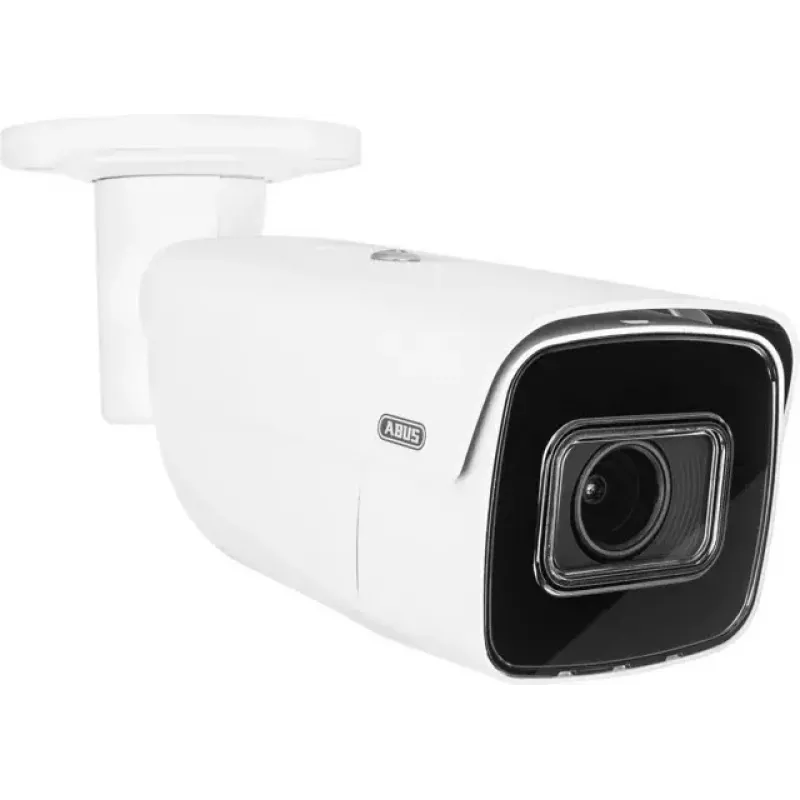

IP security camera ABUS IPCB68521 3840 x 2160 Indoor & outdoor

The ABUS IPCB68521 is an IP bullet security camera for indoor and outdoor use, offering 4K Ultra HD resolution (3840 x 2160) and a weatherproof IP67 housing with IK10 vandal protection. Equipped with powerful IR LEDs, WDR and Ultra Low-Light technology, the camera delivers clear images day and night. The motorised zoom lens (2.8–12 mm, 4.2x optical) provides a horizontal viewing angle from 46° to 108° and allows precise focal length and focus adjustment via the web interface. The camera supports recording to an ABUS recorder, video management software or a local microSD card and is compatible with ABUS Secvest, Secoris and WLX Pro Plus.

Advantages

High-resolution 4K imaging combined with WDR and Ultra Low-Light ensures detailed footage in varied lighting conditions. The IP67 and IK10 ratings provide protection against weather and vandalism for reliable outdoor operation. Motorised optical zoom and remote focus adjustment simplify setup and allow flexible framing. Built-in intelligent object recognition reduces false alarms by distinguishing people and vehicles from environmental disturbances. Multiple recording options and compatibility with ABUS systems support different installation scenarios.

Suitable for

• Perimeter and building exterior surveillance
• Parking lots and vehicle access monitoring
• Entrances, loading bays and driveways
• Indoor areas requiring detailed 4K monitoring

Key specifications

• Resolution: 3840 x 2160 (8 MP, 4K Ultra HD)
• Lens: motorised 2.8–12 mm (4.2x optical zoom)
• Horizontal viewing angle: 46°–108°
• Weather protection: IP67
• Vandal protection: IK10
• Night vision: IR LEDs, Ultra Low-Light
• Recording: ABUS recorder, VMS or microSD card
• Compatibility: ABUS Secvest, Secoris, WLX Pro Plus
• Connectivity: wired (Ethernet)

How to use

Mount the camera on a wall or ceiling using the recommended installation box (TVAC32600) for protected cabling. Connect the device via Ethernet and complete initial setup using the free ABUS IP Installer software or the web interface to adjust focal length and focus remotely. Configure recording destinations (ABUS recorder, VMS or microSD) and enable intelligent object recognition to filter out irrelevant motion events. For mobile access, install the ABUS Link Station app to view live images, playback recordings and receive push notifications.

Recommendations

For best results, install the camera at a height and angle that minimises occlusions and provides a clear line of sight to monitored zones; use the motorised zoom to fine-tune framing after initial mounting. If the camera is used outdoors, ensure cables are routed through the installation box (TVAC32600) and sealed to maintain IP67 protection.
