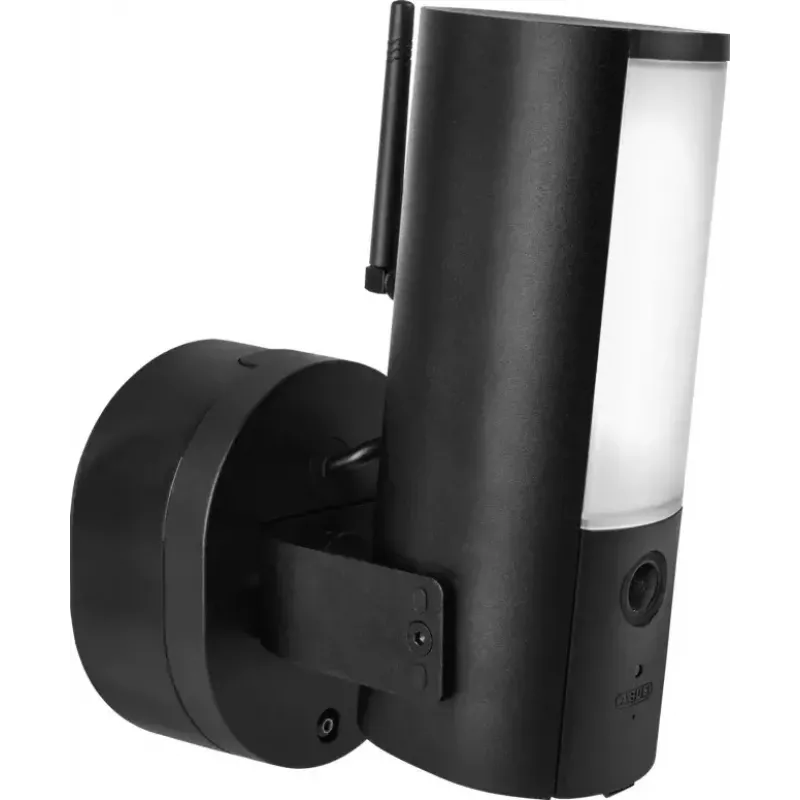

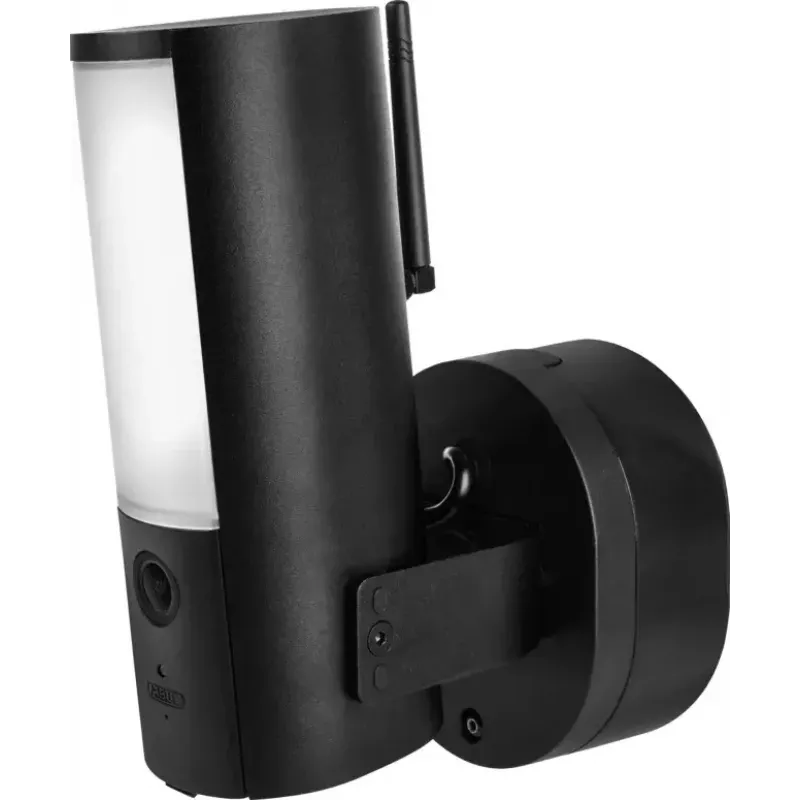

CCTV security camera ABUS PPIC46520 Outdoor 2048 x 1536 pixels Wired Wireless Wall Mount

The ABUS PPIC46520 Wi‑Fi light outdoor camera is a combined outdoor security device with a surveillance camera, intercom, siren and integrated LED light. Designed for wall mounting and compatible with both wired and wireless setups, the camera records at 2048 x 1536 pixels and offers wide coverage with a 120° horizontal and 62° vertical field of view. The unit is weatherproof, includes a microSD card for local recording and works with the App2Cam Plus mobile app for configuration and live access.

Advantages

The integrated LED light provides a well‑lit entrance and supports colour video even at night. Motion detection can be tuned for people, animals and cars to reduce false alerts, while an integrated siren and two‑way intercom let you react immediately when needed. The device supports both wired and wireless connections, features a CMOS sensor with high resolution, and is ready to use with the included microSD card. It is also compatible with the Smartvest wireless alarm system.

Suitable for (tasks / use cases)

• Monitoring house entrances, driveways and terraces
• Deterring and detecting intruders with siren and light
• Checking deliveries and communicating with visitors via intercom
• Recording local footage to microSD and viewing live video via smartphone

Key specifications

• Model: ABUS PPIC46520
• Resolution: 2048 x 1536 pixels
• Connectivity: wired and wireless (Wi‑Fi)
• Field of view: 120° horizontal / 62° vertical
• Sensor type: CMOS
• Features: integrated LED light, siren, two‑way intercom
• Included: microSD memory card

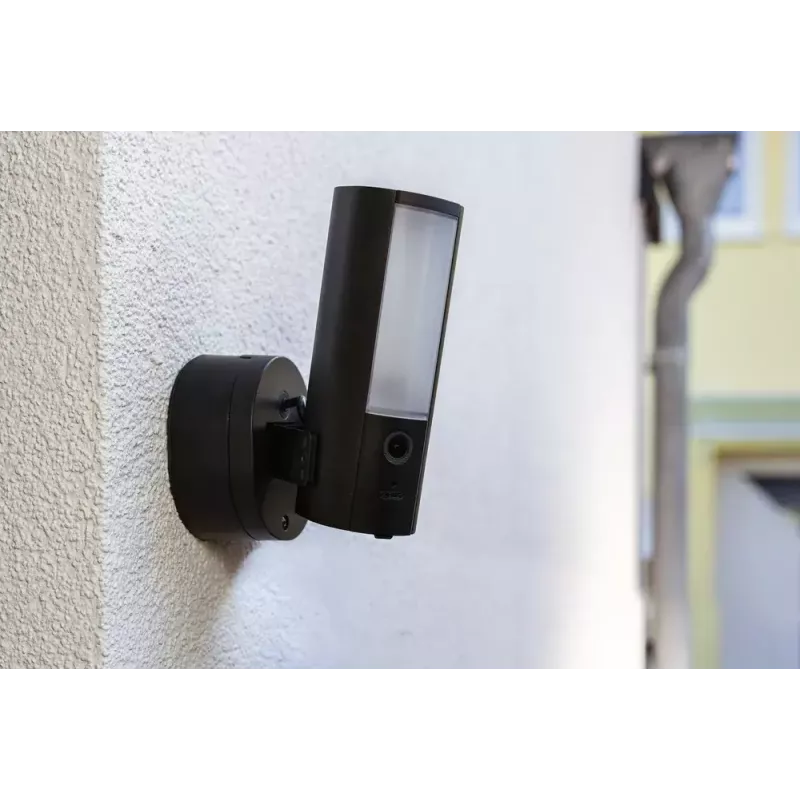

• Mounting: wall mount
• Weather protection: outdoor‑rated
• Compatibility: App2Cam Plus, Smartvest alarm system

How to use

Mount the camera on a 230 V lamp connection or suitable wall location using the included bracket and align the unit for the desired viewing angle. Install the App2Cam Plus app on your smartphone and follow the app wizard to connect the camera to power and Wi‑Fi or wired network. Insert the supplied microSD card for local recording. Configure detection zones and object classification (people, animals, cars) in the app and enable push notifications if you want immediate alerts. Use the live view to check events and the intercom to speak with visitors.

Recommendations

Position the camera to cover primary access points such as entrances and driveways and use the app’s detection settings to limit alerts to relevant events. Regularly check recorded footage on the microSD card and keep the camera’s firmware and app up to date.
