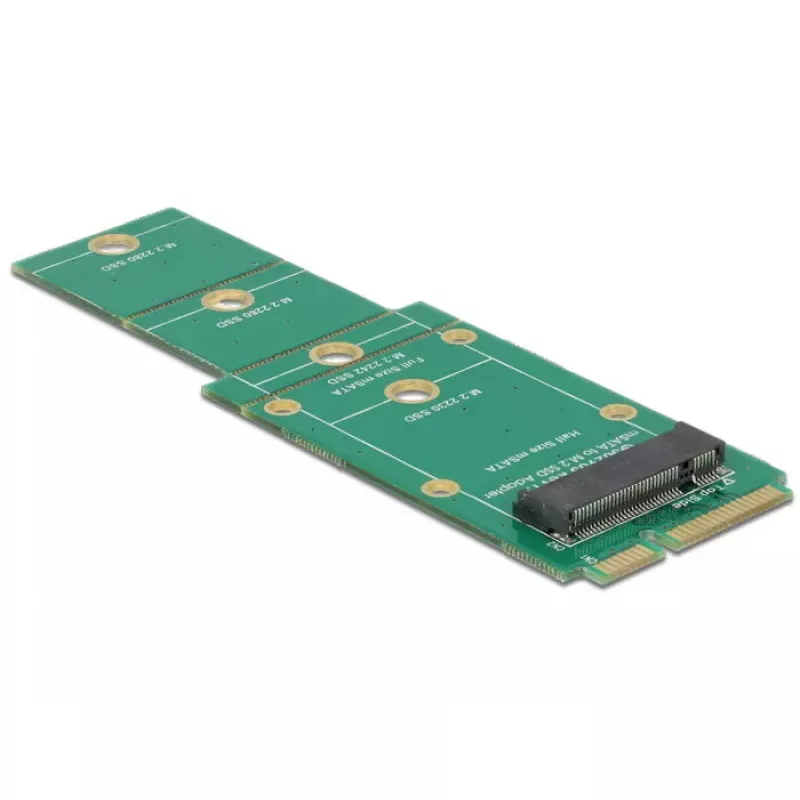

Internal mSATA Adapter DeLOCK 62592

The DeLOCK 62592 internal mSATA adapter allows installation of an M.2 NGFF SSD in sizes 2280, 2260, 2242 or 2230 and connects the drive via an mSATA interface. It is intended for integration into systems with an M.2 host interface and offers a compact form factor with dimensions of 95.5 mm × 30 mm for internal use.

Advantages

This adapter provides compatibility between M.2 NGFF SSDs (multiple lengths) and an mSATA connection, enabling use of M.2 drives in systems that expose an mSATA interface. The internal design fits standard installation scenarios and the small footprint simplifies integration into space-constrained systems.

Suitable for

• Installing M.2 NGFF SSDs (2280/2260/2242/2230) where an mSATA interface is available
• Upgrading storage in systems with an M.2 host interface that require mSATA output
• Internal compact PC builds and embedded systems with limited space

Key specifications

• Brand: DELOCK
• Model / MPN: 62592
• Host interface: M.2
• Output interface: mSATA
• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Internal: Yes
• Dimensions: 95.5 mm × 30 mm
• EAN: 4043619625925

How to use

Mount the compatible M.2 NGFF SSD into the adapter at the correct M.2 length position and secure it according to the device's mounting points. Insert the adapter into the system's M.2 slot so that the adapter's M.2 host interface mates properly, and connect any required screws or retainers. After installation, verify that the system firmware/BIOS recognizes the attached mSATA device and configure the drive in the operating system as needed.

Recommendations

Before installation, power off the system and follow anti-static precautions. Verify compatibility of the target system's M.2 slot with mSATA functionality and consult the system manual if necessary.
