Interface Card DeLOCK 89359 Internal USB 3.2 Gen 1

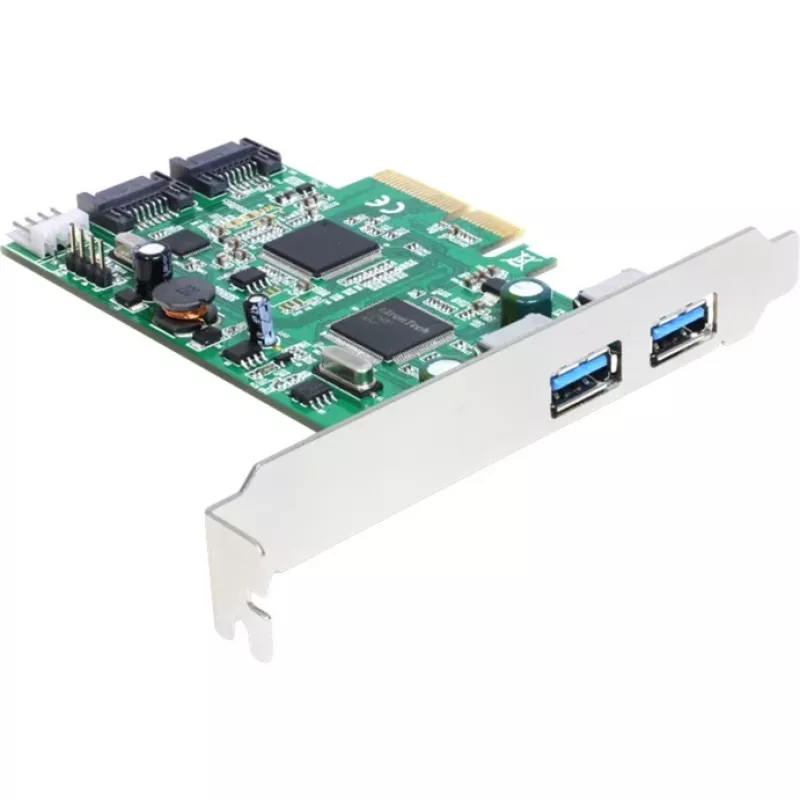

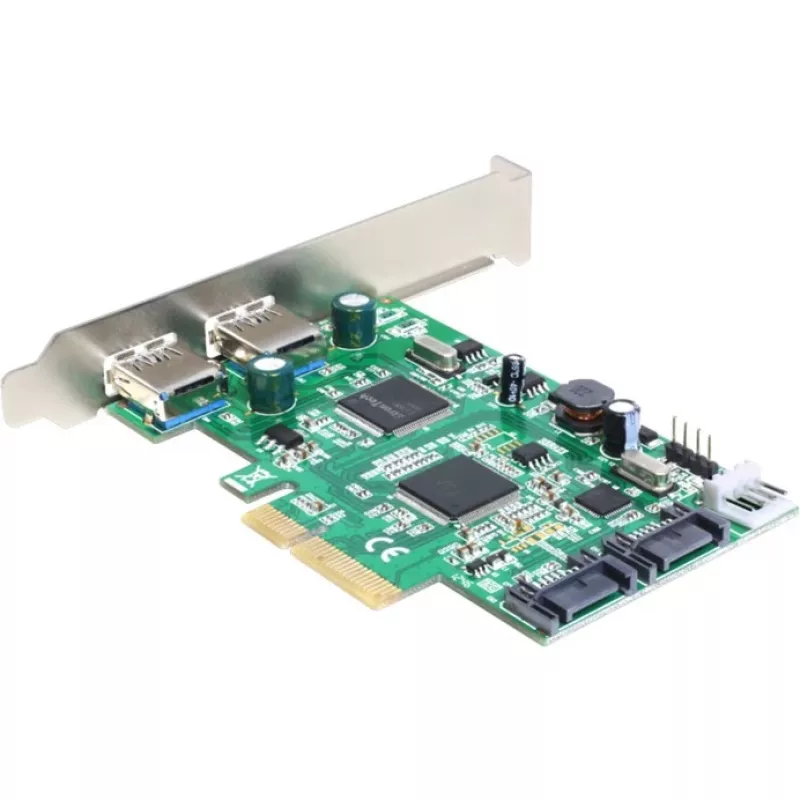

The DeLOCK 89359 is a PCI interface card that expands a PC with two external USB 3.2 Gen 1 ports and two internal SATA ports. Designed for installation into an available PCI slot, the card provides a USB 3.2 Gen 1 (also known as USB 3.1 Gen 1) connection for fast data transfers and additional connectivity for external USB devices while offering internal SATA connectivity for drives.

Advantages

This interface card adds two external USB 3.2 Gen 1 ports to a desktop system and provides two internal SATA ports without occupying additional external connectors on the chassis. It supports data transfer rates up to the USB 3.2 Gen 1 standard and fits into a standard PCI slot, making it suitable for systems that require both expanded external USB connectivity and internal drive connections. Compatible with common Windows versions, it integrates with existing hardware to increase device attachment options.

Suitable for

• Adding external USB 3.2 Gen 1 ports for peripherals such as flash drives, external HDD/SSD, printers
• Connecting internal SATA devices like additional SSDs or hard drives
• Upgrading older systems that lack sufficient USB 3.x ports
• Workstations or home PCs needing mixed external and internal connectivity

Key specifications

• Host interface: PCI
• External ports: 2 × USB 3.2 Gen 1 (USB 3.1 Gen 1)
• Internal ports: 2 × SATA
• Bandwidth: up to 6 Gbit/s (per SATA interface specification in product summary)
• Form factor: internal PCI card
• Manufacturer: DELOCK, MPN: 89359, EAN: 4043619893591

How to use

Power off the PC and unplug it from the power source. Open the computer case and insert the DeLOCK 89359 into an available PCI slot, securing it with the slot screw. Close the case and reconnect power. Install any required drivers provided by the manufacturer or allow the operating system to detect and install drivers automatically. After installation, connect external USB devices to the external ports and attach internal SATA drives to the internal SATA connectors as needed.

Recommendations

Ensure the card is installed in a compatible PCI slot and that your power supply and case provide the necessary space and connectors for attached internal drives. For optimal transfer performance, use USB 3.2 Gen 1 compatible cables and devices.
