Interface Card DeLOCK 61775 USB 3.2 Gen 1

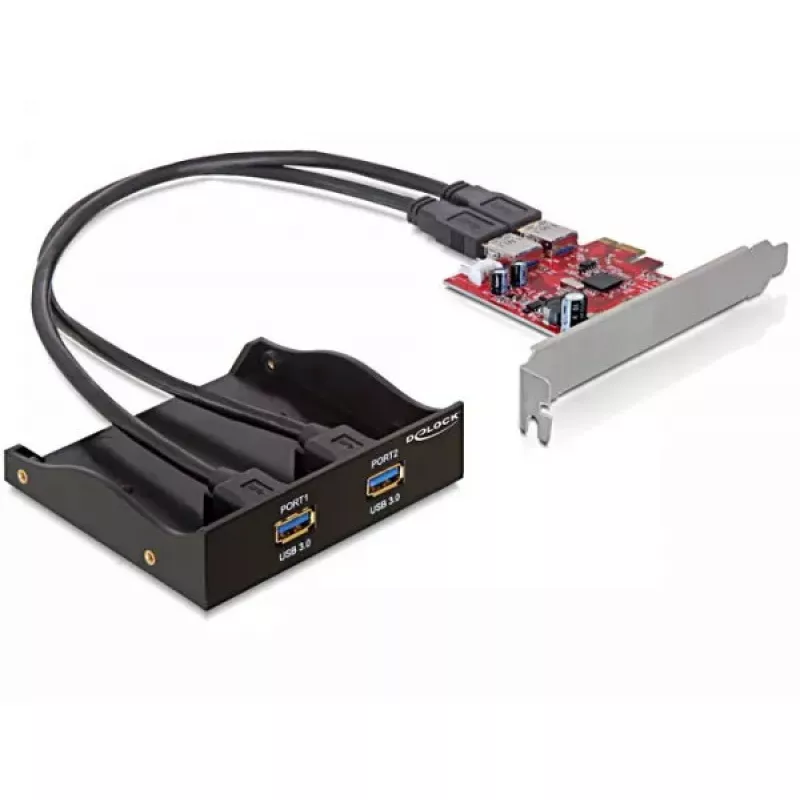

This USB 3.0 front panel from Delock fits into a free 3.5" drive bay and connects internally via the included PCI Express interface card. It expands the system with two USB 3.0 ports (USB 3.2 Gen 1 compatible) that are backward compatible with USB 2.0 and USB 1.1, enabling connection of docking stations, card readers, external enclosures and other USB devices.

Advantages

The Delock interface card provides a PCIe host interface and two front-mounted USB 3.2 Gen 1 ports, supporting data transfer rates up to 5000 Mbit/s. Installation requires a 3.5" bay and an internal PCIe slot, and the ports remain compatible with legacy USB devices for broad device support.

Suitable for

• Connecting high-speed external storage (external HDD/SSD enclosures)
• Attaching card readers and docking stations
• Adding external USB peripherals to desktop PCs without front USB 3.0 ports

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 61775
• Host interface: PCIe
• Output interface: USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0)
• Number of front ports: 2 x USB 3.0
• Max. data transfer rate: up to 5000 Mbit/s
• Compatibility: Windows XP, Vista, 7 and Linux (and other OS that support PCIe USB host controllers)

How to use

Install the panel into an available 3.5" bay at the front of the case. Insert the included PCIe card into a free PCI Express slot on the motherboard and connect the internal cable between the card and the front panel. After assembling, power on the PC and install drivers if required by the operating system. Once recognized, the two front USB 3.2 Gen 1 ports are ready to connect USB devices.

Recommendations

Use quality USB 3.0/3.1/3.2 cables to achieve optimal transfer speeds and connect high-power devices to a suitable power source if they require external power. Ensure the PCIe slot and 3.5" bay are free before installation and follow anti-static precautions during assembly.
