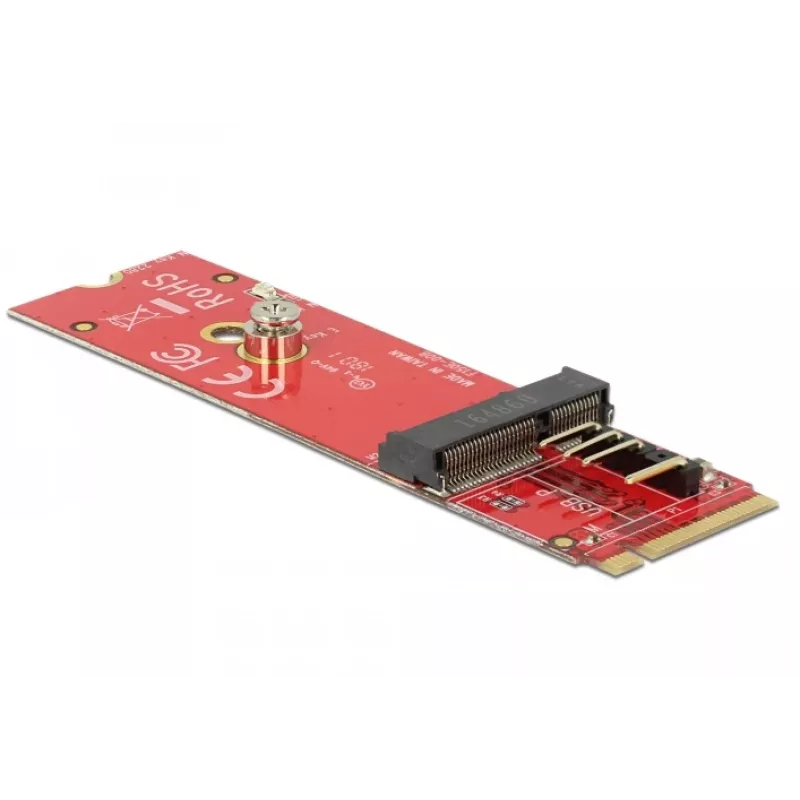

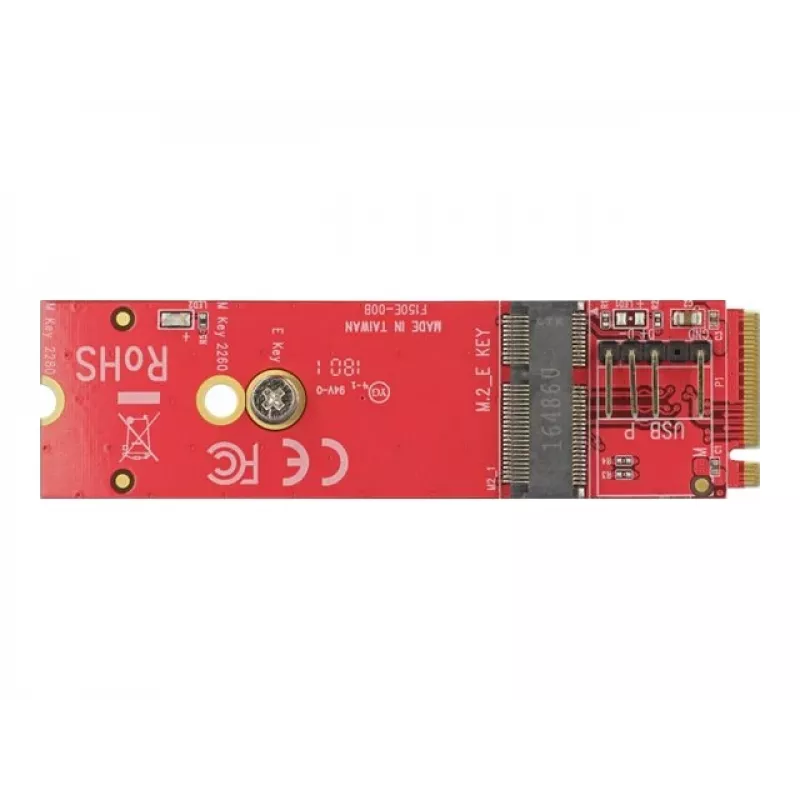

Internal M.2 Adapter DeLOCK 63343

The DeLOCK 63343 is an internal M.2 adapter that converts an M.2 Key M slot into an M.2 Key E slot. It supports modules that use USB and PCIe signal transfer and is designed for installation in compact spaces with dimensions of 22 mm × 80 mm × 5 mm. The adapter is finished in red and is intended for internal use in systems that require an M.2 Key E interface from a Key M host.

Advantages

This adapter enables compatibility between M.2 Key M host slots and M.2 Key E modules without additional external cabling. It supports both USB and PCIe signal paths where provided by the module, offers a compact 22 × 80 × 5 mm form factor for confined installations, and comes in a red colour for easy identification inside the chassis.

Suitable for

• Installing M.2 Key E wireless or expansion modules in systems with only an M.2 Key M slot
• Upgrading internal interfaces where USB or PCIe M.2 modules are required
• Small form factor PCs and embedded systems with limited board space

Key specifications

• Manufacturer: DELOCK
• Model: Internal M.2 Adapter DeLOCK 63343
• Host interface: M.2 Key M
• Output interface: M.2 Key E
• Supported signal types: USB, PCIe (if provided by module)
• Dimensions: 22 mm × 80 mm × 5 mm
• Colour: Red
• MPN: 63343
• EAN: 4043619633432

How to use

Insert the adapter into the system's internal M.2 Key M slot, ensuring correct orientation and secure seating. Mount the M.2 Key E module onto the adapter and fasten it according to the module and motherboard instructions. Verify that the module is compatible with the host system and that the required USB or PCIe signals are available from the host slot before powering up the system.

Recommendations

Use this adapter only for internal installations and handle the device using proper anti-static precautions. Confirm module compatibility and system support for the required signals (USB or PCIe) to ensure proper operation.
