Interface Card DeLOCK 62742

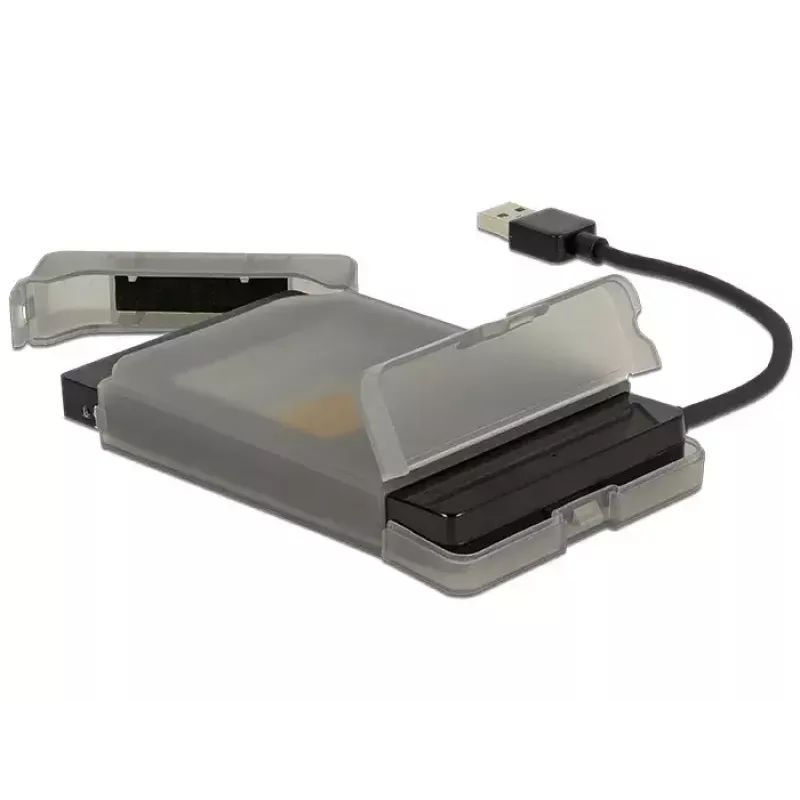

The DeLOCK 62742 is an interface adapter that connects a 2.5" SATA hard drive or SSD with a 22‑pin SATA connector to a computer via a USB Type‑A port. It uses a JMS567 chipset and supports SATA data rates up to 6 Gbit/s. The compact adapter (75 × 129 × 16 mm) is designed for external, on‑demand connection of SATA storage to PCs and laptops and comes in grey and black.

Advantages

The adapter provides a straightforward USB Type‑A to SATA connection without requiring internal installation. With the JMS567 chipset it supports SATA III transfer speeds up to 6 Gbit/s and is compatible with common Windows operating systems. Its compact dimensions and short cable make it convenient for portable use and temporary data access from 2.5" HDDs or SSDs.

Suitable for

• Connecting a 2.5" SATA HDD to a PC or laptop via USB Type‑A
• Connecting a 2.5" SATA SSD to a PC or laptop via USB Type‑A
• Accessing data for backup, transfer or recovery tasks

Key specifications

• Host interface: USB Type‑A
• Output interface: 22‑pin SATA (for 2.5" drives)
• Chipset: JMS567
• Max. data rate: 6 Gbit/s (SATA III)
• Dimensions: 75 × 129 × 16 mm
• Maximum cable length: 0.15 m
• Product colour: Grey, Black
• Internal: No (external adapter)

How to use

Connect the 22‑pin SATA plug of the adapter to the 2.5" SATA HDD or SSD, then plug the USB Type‑A connector into an available USB port on the PC or laptop. The operating system should detect the drive; if necessary, install any required drivers as indicated by the OS. Use the drive normally for file transfer, backup or cloning operations. Always ensure the drive is properly unmounted or safely ejected before disconnecting to prevent data loss.

Recommendations

For reliable operation, use with 2.5" SATA drives only and avoid forcing connectors. Keep the adapter and drive on a stable, non‑conductive surface during use and safely eject the drive before unplugging the USB connection.
