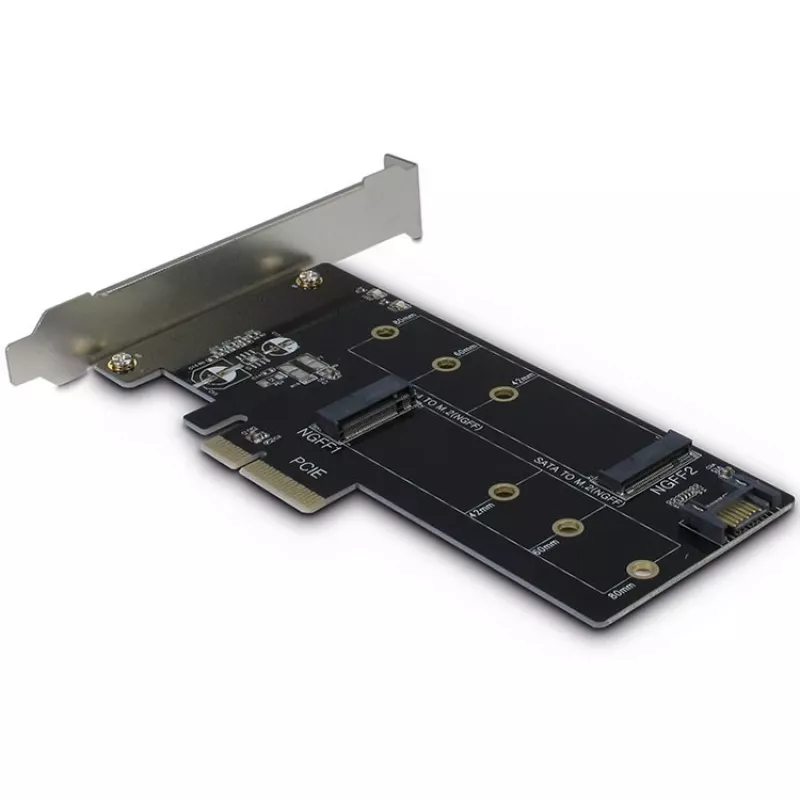

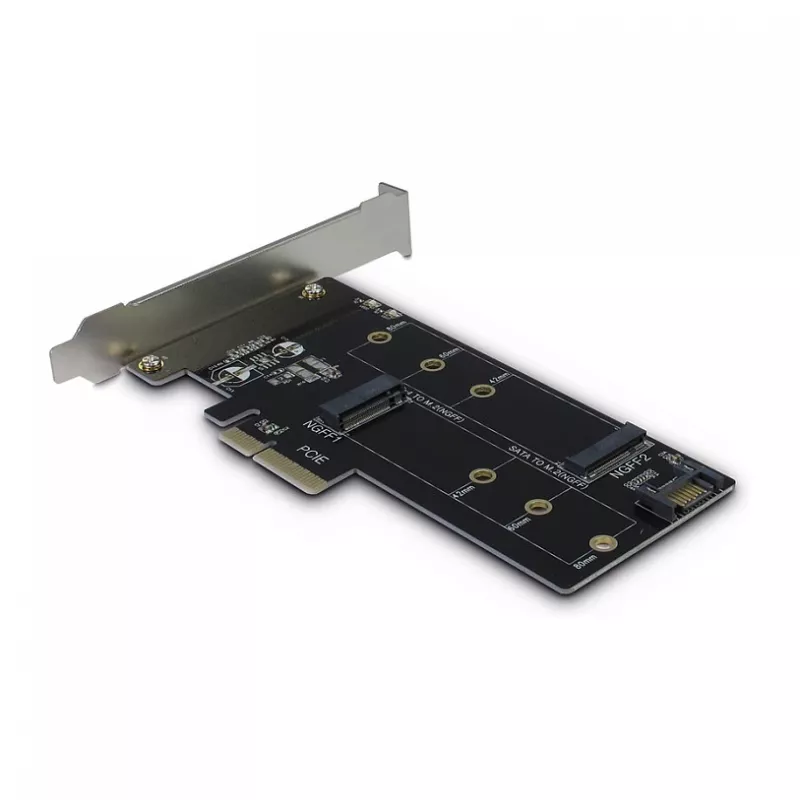

Inter-Tech KT015 PCIe x4 to Dual M.2 NVMe and SATA Adapter Card

Expand your desktop or workstation with the Inter-Tech KT015, a PCIe x4 adapter card that adds two M.2 slots—one NVMe for high-speed performance and one SATA for flexible storage capacity—through a single expansion slot. This card leverages PCIe 3.0 x4 bandwidth to deliver interface speeds up to 32 Gbps for NVMe SSDs and 6 Gbps for SATA SSDs, making it an ideal solution for systems without native M.2 connectors.

Advantages

With the KT015, you can install both an NVMe SSD for extreme read/write speeds and a SATA SSD for cost-effective storage expansion. The card supports M.2 form factors 2230, 2242, 2260, 2280, and 22110, and it operates driverless on Windows, Linux, and macOS for effortless setup. A low-profile bracket is included for small form factor cases, and an activity LED provides drive status at a glance.

Suitable for

• Desktop computers and workstations with an available PCIe x4, x8, or x16 slot
• Users adding M.2 NVMe or SATA SSDs to systems lacking native M.2 connectors
• Small form factor builds where the included low-profile bracket is required

Key specifications

• Host Interface: PCIe 3.0 x4
• M.2 Slot 1: M-Key, supports NVMe (PCIe) SSDs
• M.2 Slot 2: B-Key, supports SATA SSDs (SATA data cable included)
• Supported M.2 form factors: 2230, 2242, 2260, 2280, 22110
• Max data transfer rate: up to 32 Gbps (NVMe) / 6 Gbps (SATA)
• PCIe lane compatibility: x4, x8, x16 slots
• Powered directly by PCIe bus – no external power required
• Activity LED for drive status
• Included: low-profile bracket, SATA data cable, mounting screws

Recommendations

Before installing, verify your motherboard has a free PCIe x4 (or larger) slot. For SATA M.2 SSDs, connect the included SATA data cable to a motherboard SATA port. The card is driverless, but ensure your operating system supports the installed SSDs.
