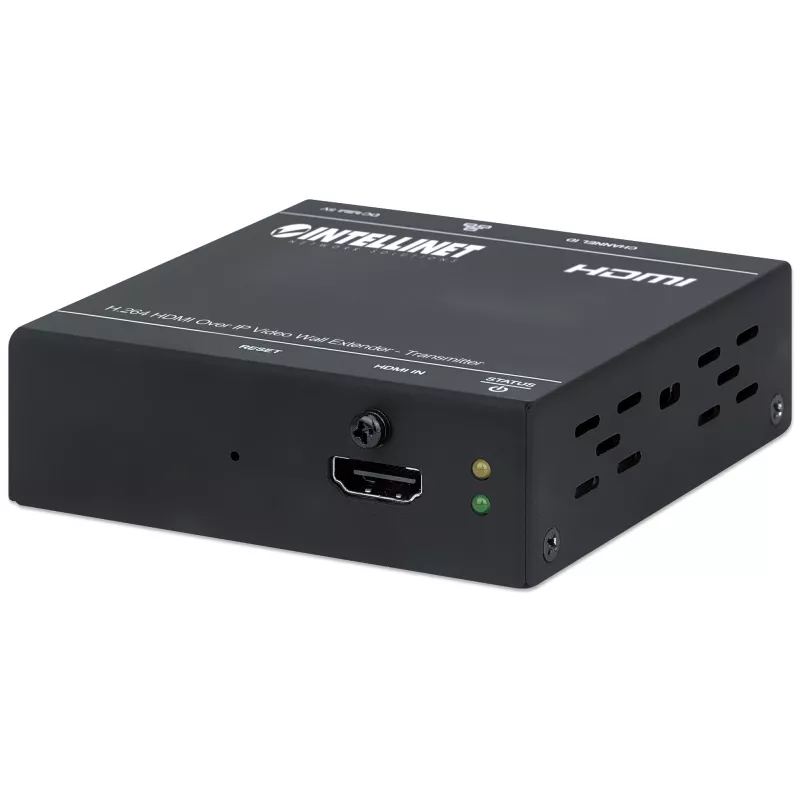

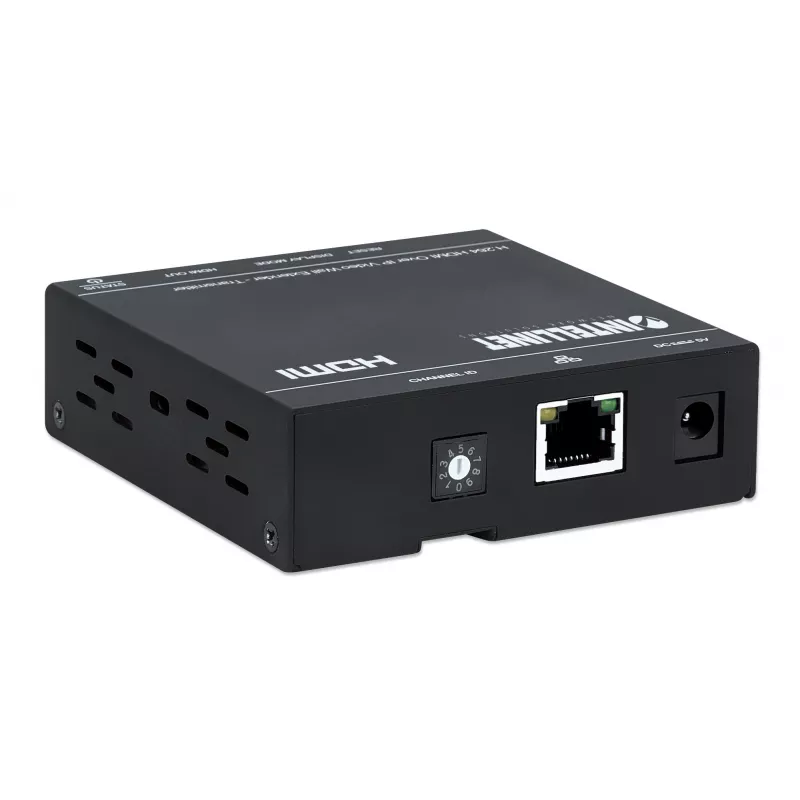

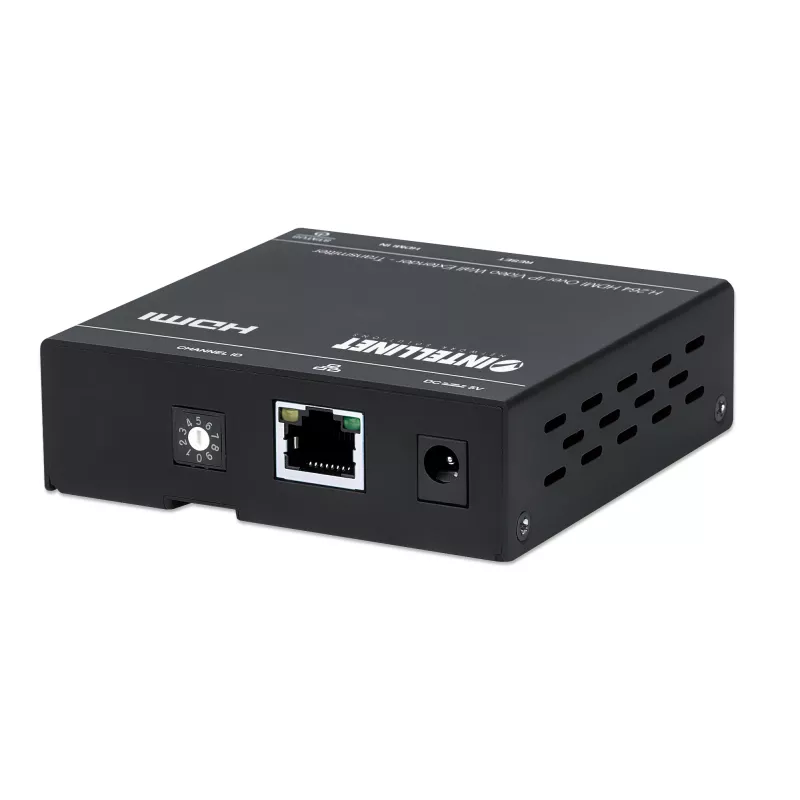

Intellinet H.264 HDMI Over IP Video Wall Extender - Transmitter Distributes an H.264-compressed 1080p HDMI Signal up to 500 m (1,640 ft.) Over a Network; Video Wall, Unicast & Multicast Streaming; Mountable, Black

Easily extend High-Definition (HD) HDMI over an IP network.
The Intellinet Network Solutions H.264 HDMI Over IP Video Wall Extender - Transmitter distributes an H.264-compressed signal up to 500 m (1,640 ft.) over a network to one or more Intellinet H.264 HDMI Over IP Video Wall Extender - Receiver(s) (see model #208345). This powered transmitter's H.264 compression helps complete a unicast/multicast routing scheme for vibrant 1080p video and full LPCM audio at reduced bandwidth. The transmitter supports Infrared (IR) control of the source and display for added convenience. For more power options in your setup, the transmitter also supports bidirectional Power over Ethernet (PoE) to give power to or accept it from the receiver. You can configure up to 246 receivers to this or additional transmitters.

Create a Video Wall or Other AV Setup
The wiring scheme this transmitter and receiver provide is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. The units shine when they're configured to work together as an attention-grabbing, near-seamless video wall. With a large number of receivers and screens, viewers are easily engaged at a distance, whether at a tradeshow, in a lecture hall, theater, conference room, business office or retail location. The transmitter offers a loop-out HDMI port to connect a display near the source.

Quality Construction and Easy Installation
The transmitter is made of sturdy materials and adheres to HDMI and Ethernet standards. Its rotary switch makes it easy to link source to display, helping to simplify installations. For more complex setups, the easily navigable web GUI lets you configure the units online. Its ultra-slim and compact design make it the best choice to maximize your options in AV applications.

Intellinet H.264 HDMI Over IP Video Wall Extender - Transmitter Distributes an H.264-compressed 1080p HDMI Signal up to 500 m (1,640 ft.) Over a Network; Video Wall, Unicast & Multicast Streaming; Mountable, Black. Type: AV transmitter, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 500 m. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Output current: 2 A. Width: 87.2 mm, Depth: 88 mm, Height: 27 mm. Cables included: HDMI
