Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.), Autonegotiation

The Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX Multi-Mode 550 m enables migration from copper-based Ethernet to fiber Ethernet and extends network reach over multi-mode fiber up to 550 m. The compact device supports autonegotiation and provides an RJ-45 copper port alongside an SC fiber optic connector, allowing seamless integration of fiber links into existing copper networks without changing network behavior.

Advantages

The media converter transparently bridges 10/100/1000Base-T networks to 1000Base-SX multi-mode fiber, enabling building-to-building and extended workgroup connectivity while avoiding additional routing equipment. Its small form factor permits desktop or wall-mount placement and multiple units can be installed in an optional 19" rackmount chassis. Autonegotiation and support for standard Ethernet speeds ensure compatibility with existing infrastructure.

Suitable for

• Extending Ethernet links between buildings or floors
• Connecting copper Ethernet segments to multi-mode fiber up to 550 m
• Integrating fiber links into existing 10/100/1000 networks
• Deployments requiring compact desktop, wall-mount, or rack-mounted converters

Key specifications

• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 2
• Maximum transfer distance: 550 m (multi-mode)
• Supported data rates: 10/100/1000 Mbps
• Fiber optic connector: SC
• Media types: 10/100/1000Base-TX to 1000Base-SX

How to use

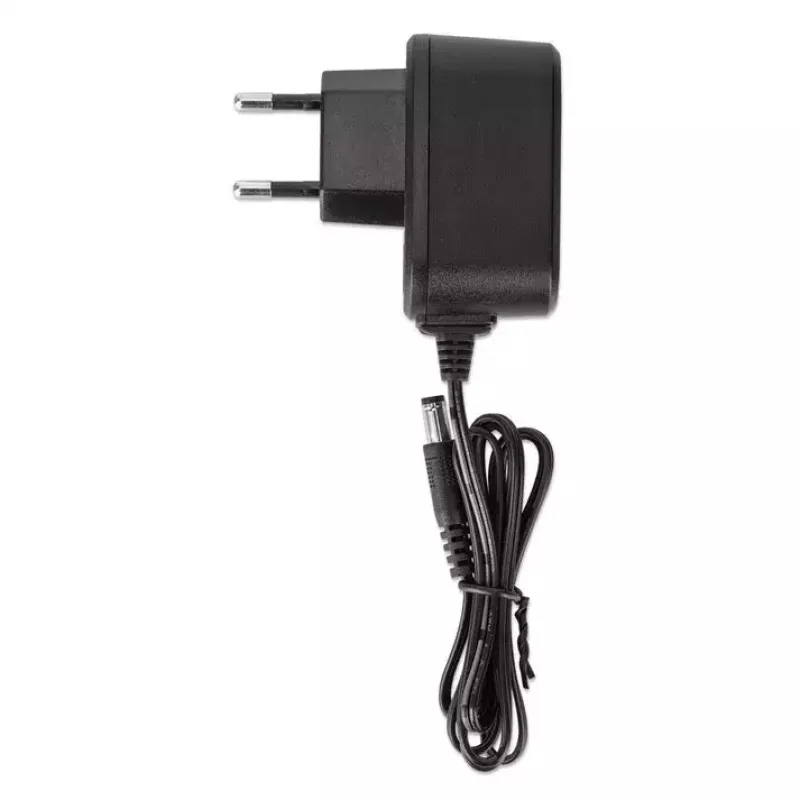

Connect the RJ-45 port to the copper Ethernet device or switch and connect the SC fiber connector to the multi-mode fiber link. Ensure autonegotiation settings on connected devices are enabled or set compatible speeds manually. Power the converter according to the supplied adapter or enclosure instructions and verify link/activity LEDs to confirm successful connectivity.

Recommendations

Use multi-mode fiber cabling that meets 1000Base-SX specifications and keep fiber connectors clean. For multiple converters in a rack, use the compatible Intellinet 19" chassis to centralize power and cabling. Verify compatibility with existing switches and set duplex/speed manually only if autonegotiation is not supported by connected equipment.
