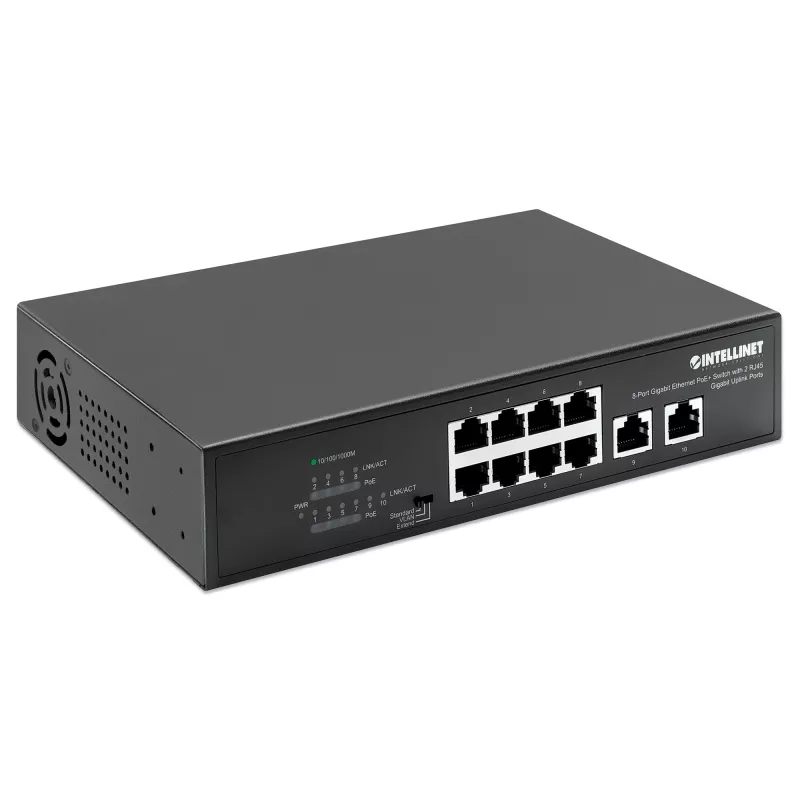

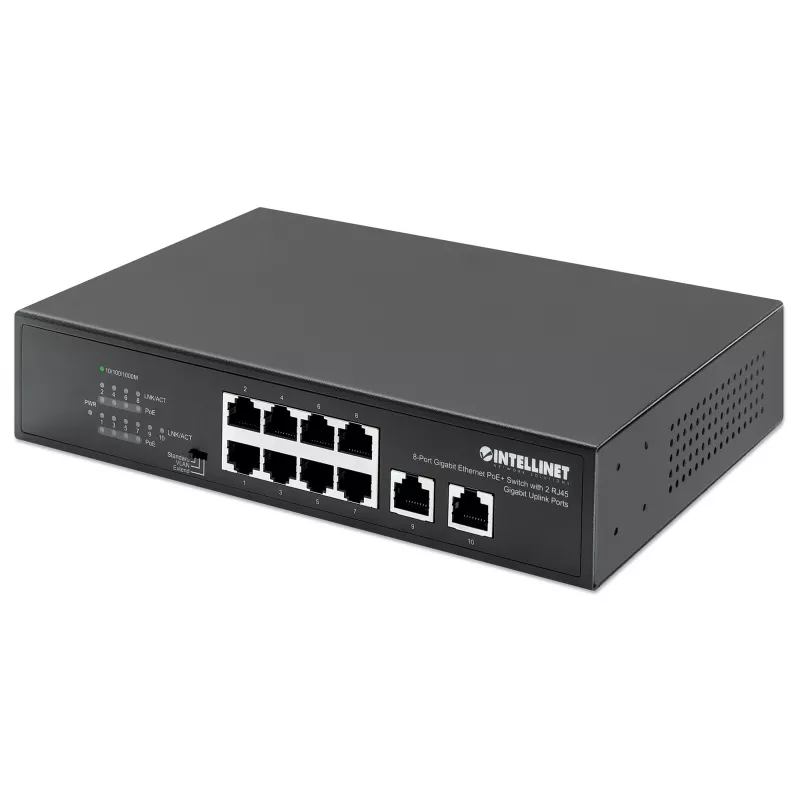

Intellinet 8-Port Gigabit Ethernet PoE+ Switch 120W 2 Uplink Ports

The Intellinet 8-Port Gigabit Ethernet PoE+ Switch (120W) provides eight auto-sensing 10/100/1000 Mbps RJ45 ports plus two Gigabit RJ45 uplink ports and delivers both data and up to 32 W of power per PoE port. With a total PoE budget of 120 W, the switch powers devices such as wireless access points, VoIP phones and IP cameras while maintaining gigabit network speeds and desktop-friendly installation.

Advantages

This PoE+ switch supports IEEE 802.3at and IEEE 802.3af devices, allowing a mixed deployment of PoE and non‑PoE equipment without extra power supplies. Built-in short-circuit, overload and high-voltage protection safeguards connected devices. The switch includes an Intellinet Powered Device Monitor (PDM) — a self-healing watchdog that performs PD alive checks and can reboot unresponsive powered devices automatically, improving uptime and reducing field service calls.

Suitable for

• Powering IP surveillance cameras in small to medium installations
• Supplying power to VoIP phones and office endpoints
• Feeding wireless access points and bridges
• Small office/home office (SOHO) networks requiring PoE distribution

Key specifications

• Ports: 8 x 10/100/1000 Mbps RJ45 PoE+ ports, 2 x Gigabit RJ45 uplink ports
• PoE standard: IEEE 802.3at (PoE+) and backward compatible with IEEE 802.3af
• Total PoE budget: 120 W; per-port max: 32 W (average distribution 15 W)
• Data rate: up to 1,000 Mbps per port
• Protection: short-circuit, overload and high-voltage protection
• Brand / MPN / EAN: INTELLINET / 561402 / 0766623561402

How to use

Install the switch on a desktop or shelf and connect your network devices using standard Cat5e or Cat6 cables. Connect uplink ports to your router or core switch for network access. Attach IEEE 802.3at/af-compatible devices to the PoE ports to provide both power and data without separate power adapters. For non-compliant devices, use a compatible PoE/PoE+ splitter. Monitor powered devices using the PDM feature; it will automatically reset unresponsive devices when necessary.

Recommendations

For predictable power distribution, plan device placement so total connected PoE power draw does not exceed the 120 W budget. Use quality Ethernet cabling (Cat5e or higher) and place bandwidth‑sensitive devices on uplink connections or segment traffic as needed.
