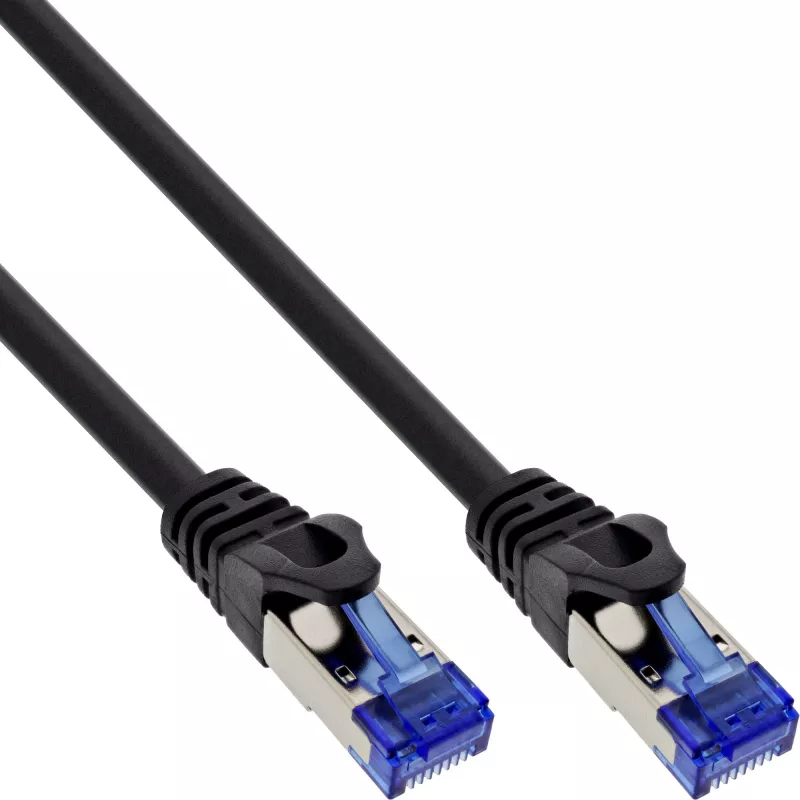

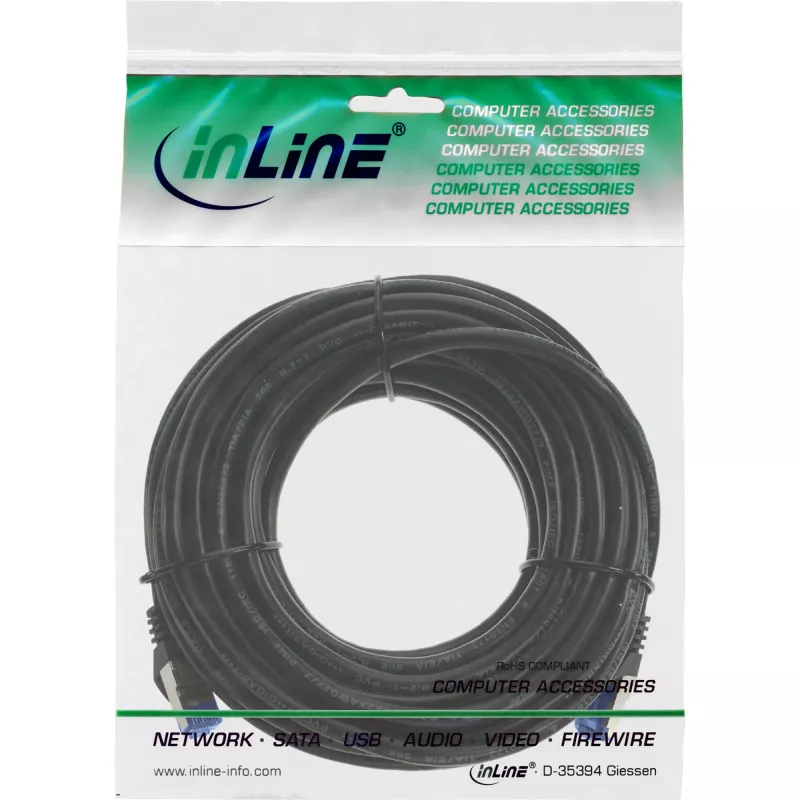

InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black

InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m, 20 m, Cat6a, U/FTP (STP), RJ-45, RJ-45, Black
R1,929
The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-qua... Read More
Stock 2 Code 1427918 Brand INLINE Model 75520S Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.

Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:

Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)

Certification: Passes Fluke DSX 8000 channel test

InLine Patch cable armoured, U/FTP, Cat.6A, black, 20m. Cable length: 20 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Black

Key Highlights
  • 20 m
  • RJ-45 Male
  • RJ-45 Male
  • Cat6a U/FTP (STP)
  • Power over Ethernet (PoE) 90 W
  • Black
Specifications
AWG wire size
28
Cable length
20 m
Cable shape
Round
Cable shielding
U/FTP (STP)
Cable standard
Cat6a
Compliance certificates
RoHS
Connector 1
RJ-45
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 gender
Male
Connector contacts plating
Gold
Depth
20000 mm
Dimensions (WxDxH)
11 x 20000 x 14 mm
Frequency
500 MHz
Height
14 mm
Jacket material
High-Density Polyethylene (HDPE), Stainless steel, Polyvinyl chloride (PVC)
Operating temperature (T-T)
-20 - 60 °C
Outer diameter
7.3 mm
Package depth
350 mm
Package height
70 mm
Package type
Polybag
Package weight
1.84 kg
Package width
300 mm
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+, PoE++ (4PPoE)
Product colour
Black
Quantity per pack
1 pc(s)
Total Power over Ethernet (PoE) budget
90 W
Weight
1.83 kg
Width
11 mm
