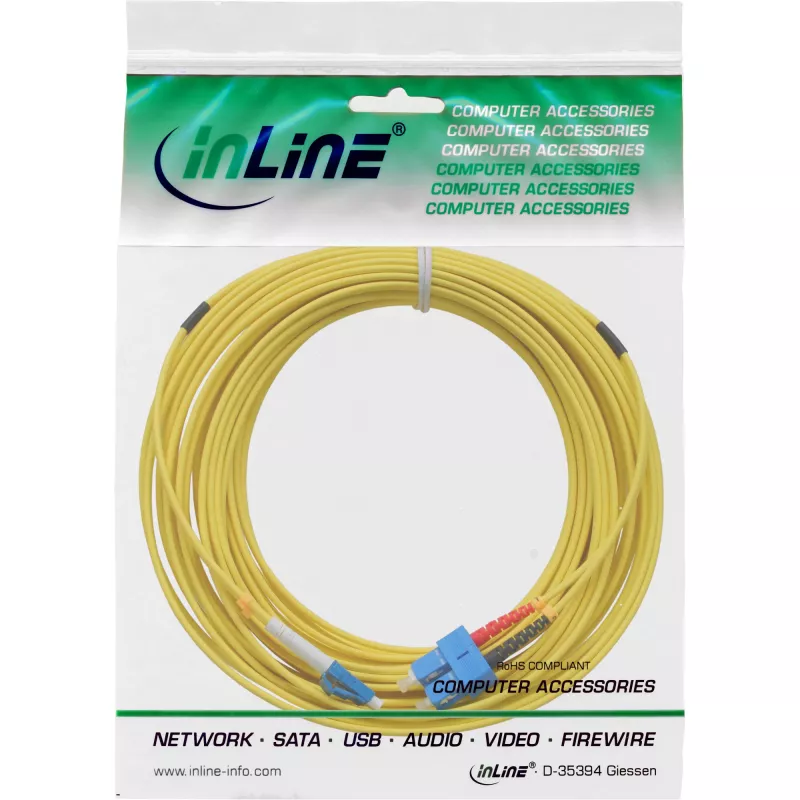

InLine Fiber optical duplex cable, LC/SC, 9/125µm, OS2, 1m

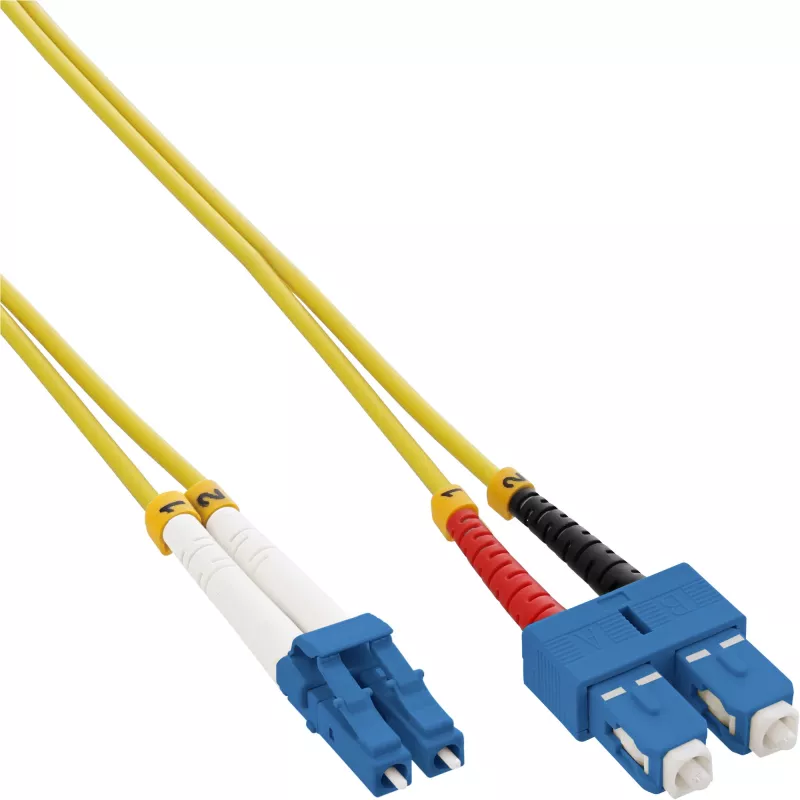

The InLine Fiber Optical Duplex Cable LC/SC 9/125µm OS2 1m is a 1-meter duplex multimode assembly designed for single-mode OS2 fiber networks. With two LC connectors on one end and two SC connectors on the other, and a 9/125 µm core/cladding geometry, the cable supports full-duplex transmission for high-speed data links, telecommunication backbones and structured cabling in indoor environments.

Advantages

This fiber patch cable provides reliable single-mode OS2 performance over short to moderate distances, offering low attenuation and stable signal integrity. The LC and SC connector combination enables flexible interconnection between different port types without additional adapters. Its duplex configuration supports simultaneous transmit and receive channels, and the 1 m length keeps patching neat and reduces excess slack in equipment racks.

Suitable for

• Connecting network equipment with LC ports to devices or panels with SC ports
• Fiber optic patch panels and switch-to-patch connections in data cabinets
• Telecom and ISP distribution points requiring OS2 single-mode links
• Laboratory and test setups where a short, reliable duplex link is needed

Key specifications

• Fiber type: OS2 single-mode
• Core/cladding diameter: 9/125 µm
• Connector A: LC duplex
• Connector B: SC duplex
• Configuration: Duplex (two fibers)
• Length: 1 m
• Typical applications: Data centers, telecom, structured cabling

How to use

Inspect connector endfaces for cleanliness before connecting; contamination can degrade optical performance. Align and insert the LC duplex connector into the LC port and the SC duplex connector into the SC adapter or port until they click or seat securely. Route the cable to avoid tight bends and maintain the minimum bend radius specified by standard practice for single-mode fiber. When disconnecting, depress the connector latch and pull straight out without twisting to prevent damage to the ferrule.

Recommendations

Use appropriate fiber cleaning tools and inspection microscopes to verify endface condition before installation. Avoid routing the cable near sources of mechanical stress or heat, and store unused lengths coiled loosely. For permanent links or outdoor applications, select cables and enclosures with suitable environmental ratings; this product is intended for indoor structured cabling and patching.
