InLine B-76814B networking cable Blue 1.5 m Cat6a S/FTP (S-STP)

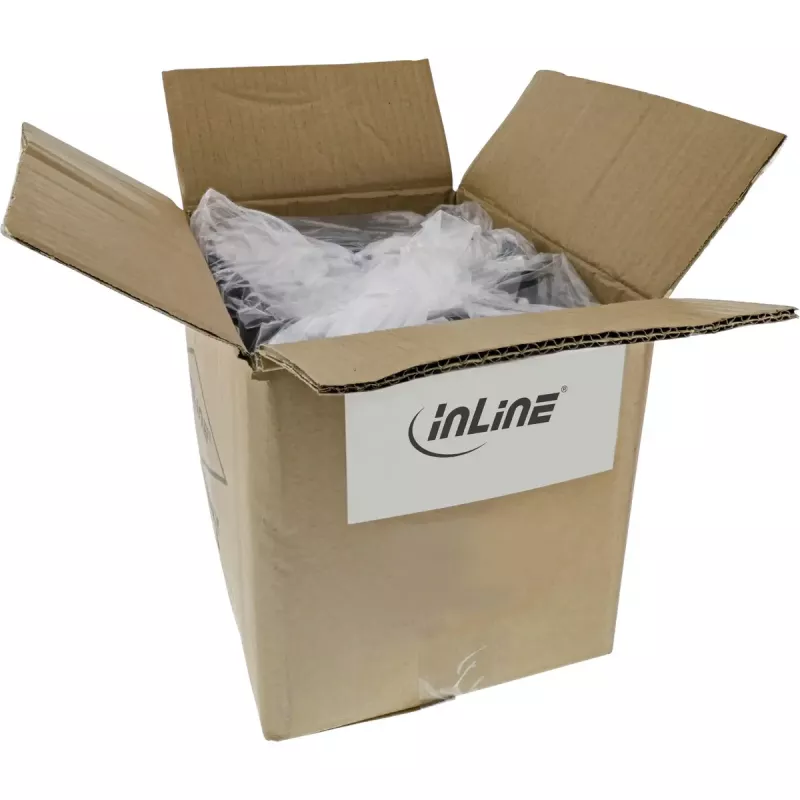

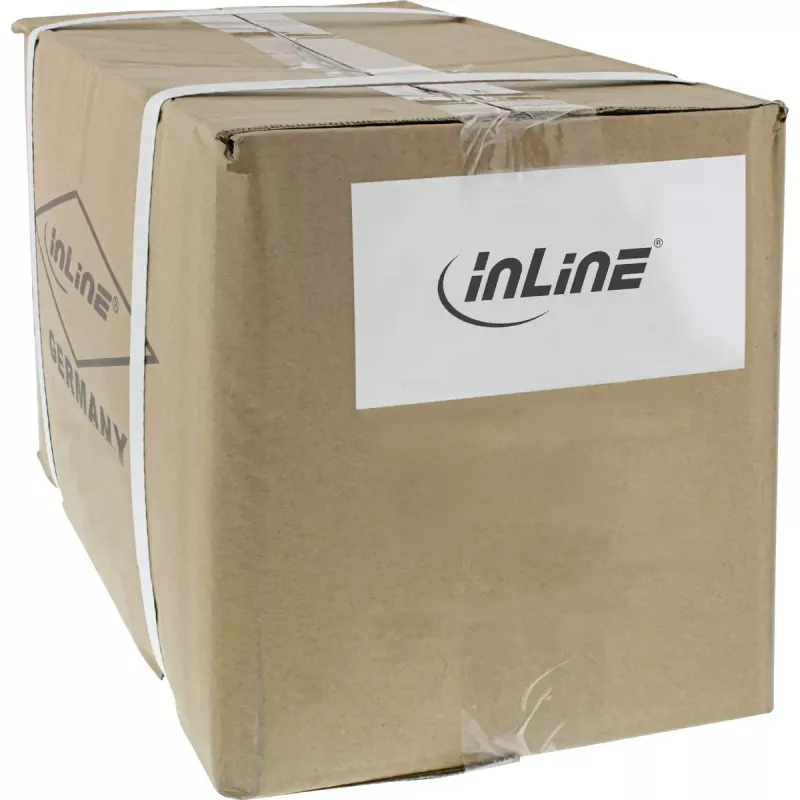

You will receive 50 pieces of item 76814B packed in a moisture-protective PE bag and an outer carton. The InLine B-76814B networking cable is constructed to TIA/EIA 568B2.1 and uses S/FTP (PiMf) 4x2xAWG26/7 solid copper conductors with an overall braided shield and pair-wise foil shielding. The cable features a halogen-free LSZH jacket compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2 and IEC 61034. Each cable is terminated with an RJ45 connector with 50 µ" gold-plated contacts, a snap-in protection design and a blue-coloured connector for easy differentiation. The cable supports Gigabit and 10 Gigabit applications up to 500 MHz and includes an enclosed test report.

Advantages

The InLine B-76814B offers enhanced EMI protection through S/FTP construction and pair-wise foil shielding, a low-smoke halogen-free jacket for safer installations, and factory-terminated RJ45 plugs with gold-plated contacts for reliable connections. Bulk ecoPack packaging reduces individual waste and enables cost savings by supplying 50 units per carton for direct use on-site.

Suitable for

Key specifications

How to use

Open the outer carton and remove the PE bag to access the 50 pre-terminated cables. Use the blue-coloured RJ45 connectors to identify and differentiate this cable type during installation. Plug the RJ45 connector into the corresponding Ethernet port on network devices, ensuring the snap-in latch engages to secure the connection. Follow standard cable management and bend-radius practices for S/FTP cables and observe installation rules for LSZH materials in confined spaces.

Recommendations

Store the cables in a dry environment and avoid sharp bends or prolonged mechanical stress. For installations in risers, ducts or areas with fire-safety requirements, verify that LSZH jacket compliance meets local regulations. Use the enclosed test report to validate performance up to 500 MHz after installation.
