Industrial 4-port Gigabit Ethernet Switch PLANET IP30

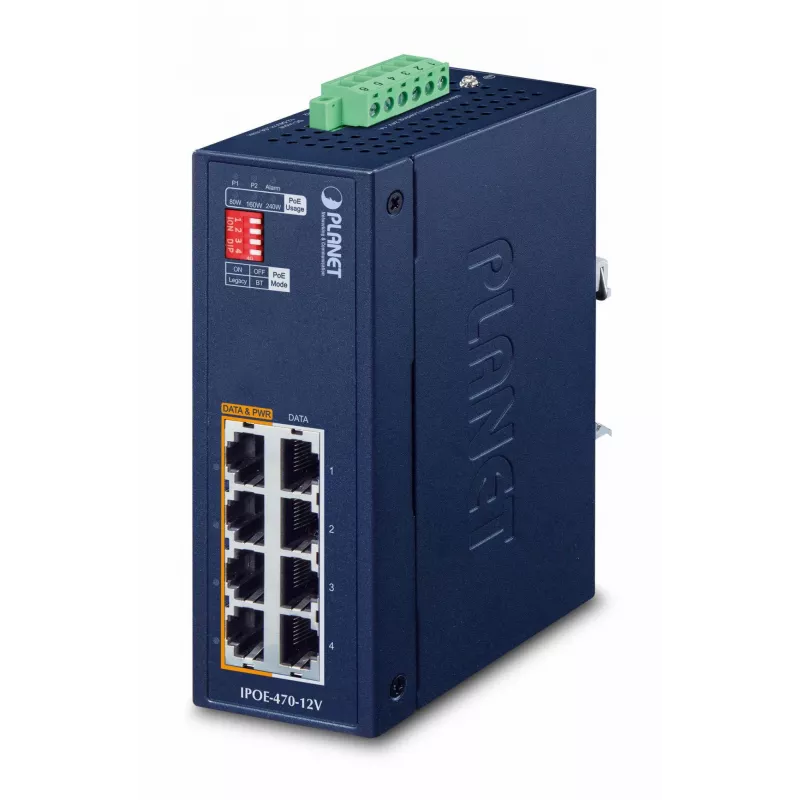

The PLANET IPOE-470-12V is an industrial 4-port Gigabit PoE++ injector hub that supplies data and power over standard Cat5e/6 UTP cables. Supporting the IEEE 802.3bt PoE++ standard, it provides four 10/100/1000BASE-T PoE++ ports, each capable of delivering up to 95 watts, with a total PoE budget of 240 watts. Housed in an IP30 metal case, the unit is suitable for DIN-rail or wall mounting and is designed to operate in harsh environments with an operating temperature range from -40 to 75 °C.

Advantages

The IPOE-470-12V upgrades existing networks to 802.3bt PoE++ without replacing Ethernet switches, centralizes power delivery, and reduces the need for separate electrical outlets. Its design supports wide DC input voltages (12–54 V) with an internal boost to 54 V, provides real-time PoE usage monitoring via multi-segment LEDs, and delivers robust protection against ESD and surge events. Compact metal construction and industrial-grade temperature tolerance enable reliable deployment in demanding locations.

Suitable for

• PoE PTZ and high-power surveillance cameras
• Network devices and switches requiring PoE++ power
• Thin clients, AIO touch PCs, POS terminals and kiosks
• Remote digital signage and displays
• PoE lighting systems

Key specifications

• Model: IPOE-470-12V (PLANET)
• Ports: Four 10/100/1000BASE-T PoE++ injector ports plus four network input ports (total 8 RJ-45)
• PoE standard: IEEE 802.3bt (PoE++), backward compatible with 802.3at
• Max per-port PoE output: 95 W
• Total PoE budget: 240 W
• Input voltage: 12–54 V DC (boosts to 54 V for PoE delivery)
• Operating temperature: -40 to 75 °C
• Protection: Ethernet ESD (contact ±6 kV, air ±8 kV), surge immunity ±6 kV
• Form factor: IP30 metal case, DIN-rail or wall mountable
• Weight: 0.679 kg
• Color: Blue

How to use

Install the IPOE-470-12V between your existing Ethernet switch and the powered devices. Connect the switch to the unit’s network input ports and connect PoE-capable devices to the PoE++ output ports using Cat5e/6 cables. Provide DC power to the device using the dual DC inputs (12–54 V); the unit will boost the supply to the required 54 V for PoE delivery. Monitor the Power Input LEDs and the PoE Usage LEDs on the front panel to verify input status and real-time power consumption of connected devices.

Recommendations

For reliable long-distance deployment, combine the IPOE-470-12V with compatible PLANET PoE extenders when powering devices located more than 100 meters from the injector. Ensure DC power sources meet the required input range and consider redundant power inputs for high-availability installations.
