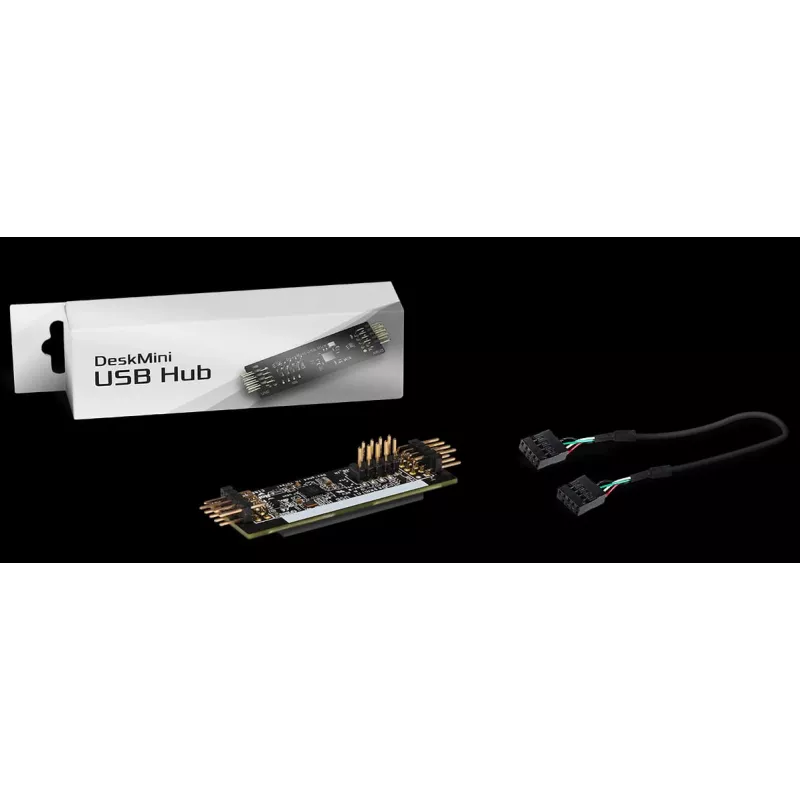

I/O shield ASROCK DeskMini USB Hub 90-BCA010-00UAYZ

The ASROCK DeskMini USB Hub 90-BCA010-00UAYZ is an I/O shield designed for Mini-STX chassis. It features a black finish and mounts magnetically inside the DeskMini chassis to add two extra USB 2.0 ports and provide a connection point for the DeskMini Addressable LED and USB 2.0 cable. The unit is supplied as one piece per pack and is intended to improve internal accessibility and lighting connectivity in compatible Mini-STX systems.

Advantages

The magnetic mounting simplifies installation and removal inside the DeskMini chassis without additional tools. It provides two additional USB 2.0 ports for connecting peripherals and includes a dedicated connection for the DeskMini Addressable LED and USB 2.0 cable, enabling personalized lighting control. The black colour matches the DeskMini aesthetic and ensures a discreet appearance inside the system.

Suitable for

• Mini-STX DeskMini chassis requiring an internal USB 2.0 hub
• Systems using DeskMini addressable LED strips and USB 2.0 cable
• Users who need two extra internal USB 2.0 ports for peripherals or accessories

Key specifications

• Manufacturer: ASROCK
• Model / MPN: 90-BCA010-00UAYZ
• EAN: 4710483933080
• Product type: I/O shield / internal USB hub for Mini-STX
• Connectivity: 2 × USB 2.0 ports, connector for DeskMini Addressable LED and USB 2.0 cable
• Colour: Black
• Pack quantity: 1 unit

How to use

Place the I/O shield inside the DeskMini Mini-STX chassis where the magnetic backing secures it to the metal surface. Connect the internal USB 2.0 cables to the motherboard headers as indicated in the DeskMini manual, and attach the DeskMini Addressable LED cable to the dedicated header. Verify connections before powering on the system to ensure proper operation of the added USB ports and LED control.

Recommendations

Install and remove the hub with the system powered off to avoid short circuits. Use appropriate cable routing to prevent pinching or interference with cooling fans. Confirm motherboard header compatibility with USB 2.0 before connection.
