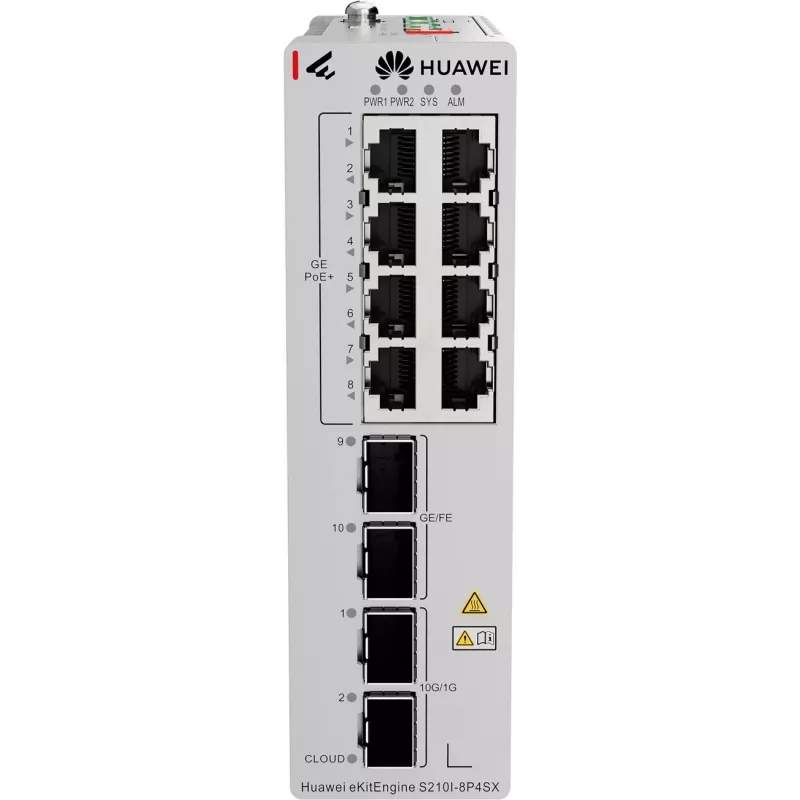

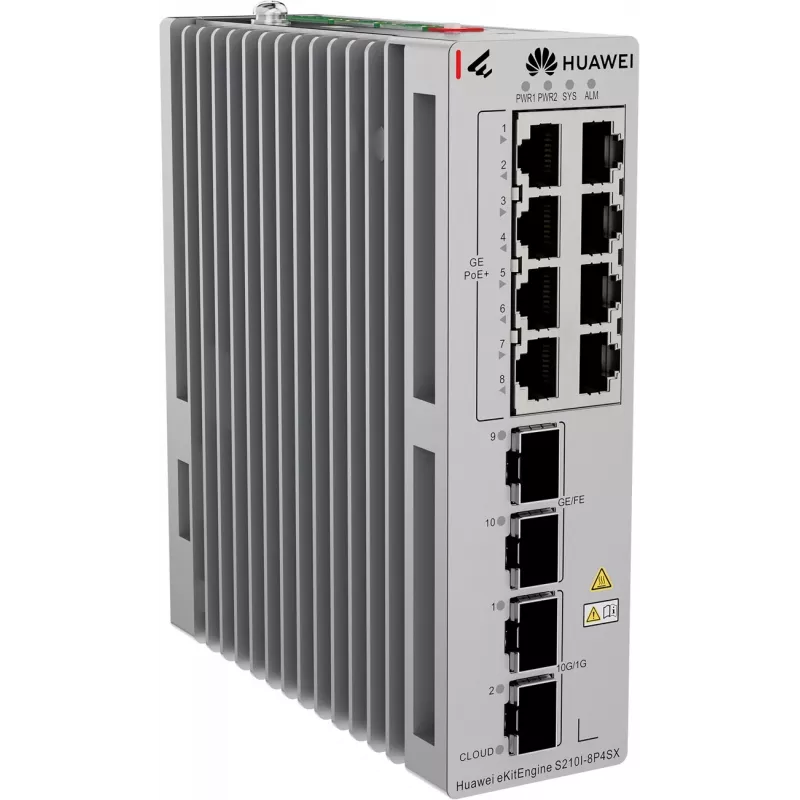

HUAWEI S210I-8P4SX Industrial Ethernet Switch, 8x GE PoE+ Copper, 2x GE SFP, 2x 10GE SFP+, DIN Rail, Dual DC 98012933

Industrial Ethernet switch engineered for harsh environments, the HUAWEI S210I-8P4SX delivers 8 Gigabit PoE+ copper ports, 2 Gigabit SFP uplinks, and 2 10-Gigabit SFP+ ports in a rugged DIN-rail chassis. With dual redundant 48–57 V DC power inputs, fanless cooling, and an extended operating temperature range of -40°C to 75°C, it provides reliable connectivity for automation, surveillance, and edge networking in demanding industrial settings.

Advantages

This Layer 2 managed switch provides a 60 Gbps switching capacity and 44.64 Mpps forwarding rate, ensuring smooth data flow even under heavy load. All 8 copper ports support IEEE 802.3af/at PoE+ with a total power budget suitable for IP cameras, wireless access points, and other powered devices. Redundant power inputs and ERPS/RSTP/MSTP redundancy protocols minimize downtime, while the fanless design eliminates moving parts for silent, maintenance-free operation. Comprehensive management via Web UI, CLI, SNMP, and Telnet simplifies configuration and monitoring.

Suitable for

• Industrial automation and control systems
• IP surveillance and security networks
• Smart transportation and roadside cabinets
• Outdoor or unconditioned enclosures
• Edge computing and IoT gateways

Key specifications

• 8x 10/100/1000BASE-T PoE+ ports
• 2x Gigabit SFP slots
• 2x 10 Gigabit SFP+ uplinks
• Dual redundant 48–57 V DC power inputs

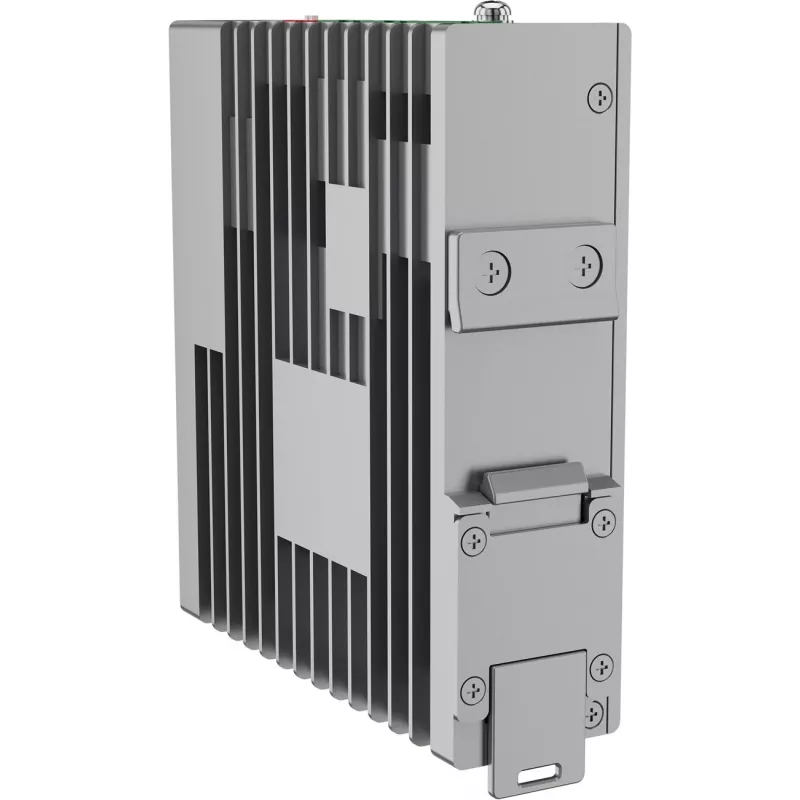

• DIN-rail mounting, fanless design
• Operating temperature: -40°C to 75°C
• Switching capacity: 60 Gbps; forwarding rate: 44.64 Mpps
• MAC address table: 16K; VLANs: 4K (802.1Q)
• Jumbo frame support up to 9 KB
• Management: Web, CLI, SNMP, Telnet

Recommendations

Ideal for system integrators and network engineers who need a rugged, PoE-capable industrial switch with high-speed uplinks and redundant power for mission-critical deployments.
